Part number
XB4FVM4
Model no
XB4F
$24.10 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB4

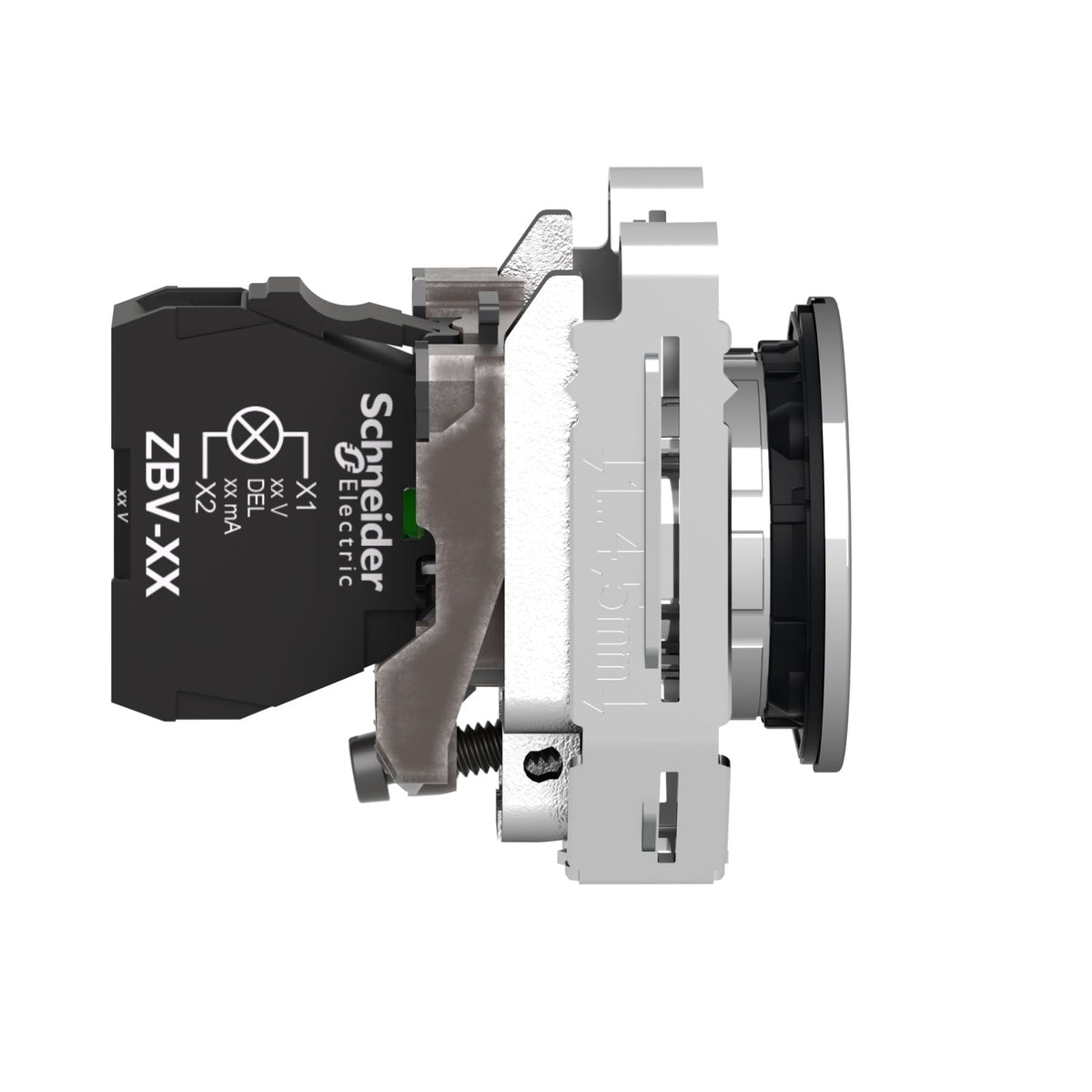

Schneider Electric XB4FVM4 Harmony XB4 Red 30 mm Plain Lens Universal LED 230-240V AC Pilot Light

Harmony XB4 pilot light, 30 mm, red, 230-240V AC.

Rated operational voltage
230–240 V AC
EAN
3606489580605
Description

About the XB4F

The Schneider Electric XB4FVM4 is a Harmony XB4 flush-mounted pilot light, 30.5 mm mounting diameter, with a red plain lens and an integral universal LED. It is supplied for a 230-240 V AC lamp circuit, drawing 14 mA, and signals steadily for panel-front status indication rated up to IP69K.

Certifications & Standards

  • CE
  • UL Listed
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

Match the 230-240 V AC lamp voltage to the control-circuit supply before wiring; the red lens is the only difference from the other colour options in this 24 mA-class pilot-light range, so swapping colours does not change the mounting or wiring.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 14

Range of Product Harmony XB4
Product or Component Type Pilot light
Device short name XB4F
Bezel material Chromium plated metal
Fixing collar material Zamak
Head type Built-in-flush
Mounting diameter 1.2 in (30.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Cap/operator or lens colour Red
Operator additional information With plain lens
Light source Universal LED
Bulb base Integral LED
[Us] rated supply voltage 230...240 V AC 50/60 Hz

Complementary 17

CAD overall width 1.4 in (36.6 mm)
CAD overall height 1.4 in (36.6 mm)
CAD overall depth 2.1 in (53.6 mm)
Net Weight 0.247 lb(US) (0.112 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Device mounting Fixing hole 1.21 in (30.75 mm) +/- 0.25 mm
Fixing mode By screw
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
Signalling type Steady
Current Consumption 14 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV IEC 61000-4-5
Device presentation Complete product
Supply voltage limits 195…264 V AC

Environment 14

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…131 °F (-40…55 °C)
Electrical shock protection class Class I conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
IK degree of protection IK06 conforming to IEC 50102
Standards CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C8201-5-1, CE, JIS C8201-1
Product Certifications UL Listed, CSA, CCC, EAC
Vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Resistance to fast transients 2 kV IEC 61000-4-4
Resistance to electromagnetic fields 9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission Class B IEC 55011
Show all 59 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB4FVM4
Type designation XB4F
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489580605

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.112 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XB4FVM4

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CCC
  • EAC
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • IEC 60947-1
  • JIS C8201-5-1
  • CE
  • JIS C8201-1
Quick answers

Questions about the XB4F

Which supply voltage is XB4F rated for?

The rated operational voltage of XB4F is 230–240 V AC.

What is the HS code of XB4F for customs?

The tariff (HS) code on file for XB4F is 853661.

What is the EAN of XB4F?

The EAN (GTIN) of XB4F is 3606489580605.

Where does XB4F ship from, and how fast?

XB4F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
