- Part number
- XB4BV65
- Model no
- XB4
Description
About the XB4
About the XB4

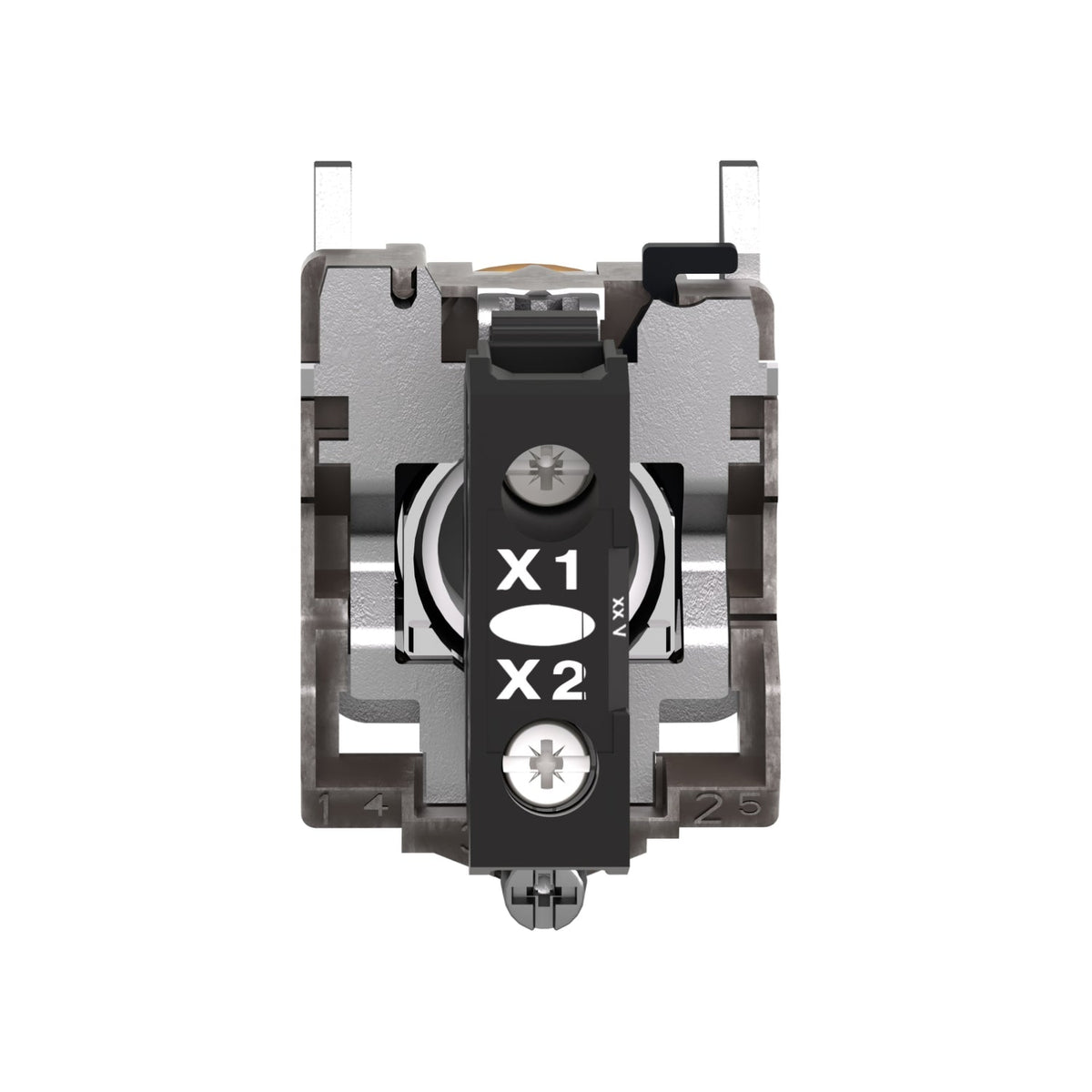

The Schneider Electric XB4BV65 is a Harmony XB4 pilot light with a chromium-plated metal bezel, a orange plain lens and a BA9s bulb base (bulb not included), supplied at up to 250 V AC/DC. It mounts into a standard 22.5 mm panel cutout through screw-clamp terminals and carries IP66, IP67, IP69 and IP69K sealing for wash-down duty.
Certifications & Standards
- IEC 60947-5-1
- IEC 60947-1
- UL 508
- CSA C22.2 No 14
Selection Notes
The XB4BV65 uses a BA9s bulb socket rather than an integral LED, so it takes a separately sourced bulb and draws whatever current that bulb needs, up to the 2.4 W / 250 V direct-supply limit of the light block — that makes it a straightforward swap-in for panels already stocked with BA9s lamps, but it will need bulb replacement over time, unlike the LED-based XB4BVB/XB4BVM variants in the same range. The orange plain lens gives steady, non-flashing indication, and the metal bezel with IP66/IP67/IP69/IP69K sealing holds up to the same wash-down cycles as the XB4 push buttons it is typically panel-mounted alongside.
Applications
Used as a orange status or power-on indicator on control panels and operator stations where the panel is already equipped with 250 V BA9s pilot lamps and a 22 mm Harmony XB4 cutout.
Specification
Full specification
Main 15
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Pilot light |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Orange |
| Operator additional information | With plain lens |
| Light source | Bulb not included |
| Bulb base | BA 9s |
| Light block supply | Direct <2.4 W |
| [Us] rated supply voltage | <= 250 V |
Complementary 11
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.2 in (55 mm) |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.165 lb(US) (0.075 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| Signalling type | Steady |
| Device presentation | Complete product |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-4, IEC 60947-5-1, IEC 60947-5-5, UL 508, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-1, JIS C8201-1 |
| Product Certifications | UL Listed, CSA |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 51 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB4BV65 |
|---|---|
| Type designation | XB4 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110887204 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.075 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB4BV65
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- IEC 60947-5-4
- IEC 60947-5-1
- IEC 60947-5-5
- UL 508
- CSA C22.2 No 14
- JIS C8201-5-1
- IEC 60947-1
- JIS C8201-1
Quick answers
Questions about the XB4
Which supply voltage is XB4 rated for?
The rated operational voltage of XB4 is 250 V AC.
What is the HS code of XB4 for customs?
The tariff (HS) code on file for XB4 is 853661.
What is the EAN of XB4?
The EAN (GTIN) of XB4 is 3389110887204.
Where does XB4 ship from, and how fast?
XB4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
