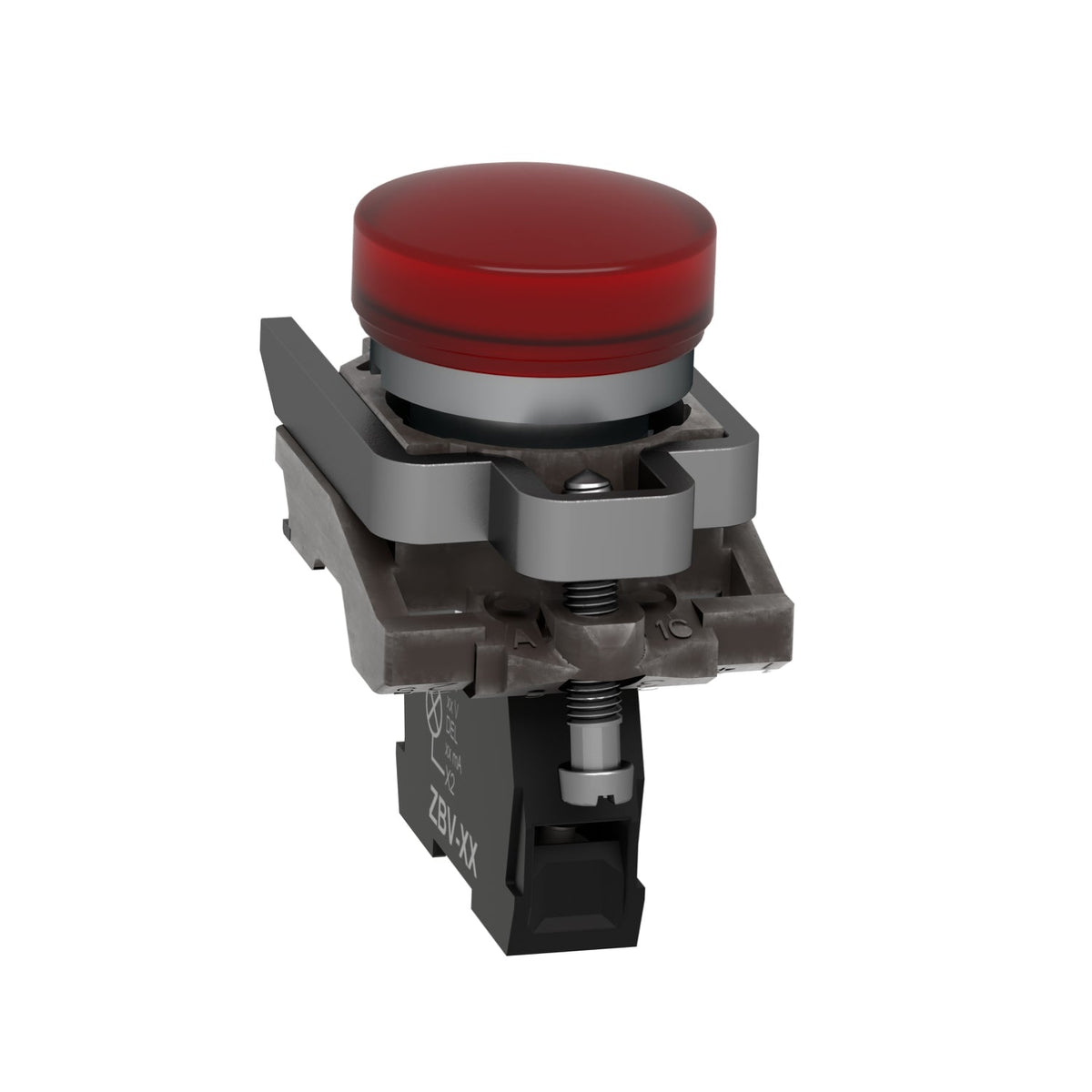

Schneider Electric XB4BV64 Harmony XB4 Pilot Light Metal Red 22 mm Plain Lens BA9s lt 250 V Pilot Light

The Schneider Electric XB4BV64 is a Harmony XB4 pilot light with a chromium-plated metal bezel, a red plain lens and a BA9s bulb base (bulb not included), supplied at up to 250 V AC/DC. It mounts into a standard 22.5 mm panel cutout through screw-clamp terminals and carries IP66, IP67, IP69 and IP69K sealing for wash-down duty.

Technical Specifications

Certifications & Standards

• IEC 60947-5-1
• IEC 60947-1
• UL 508
• CSA C22.2 No 14

Selection Notes

The XB4BV64 uses a BA9s bulb socket rather than an integral LED, so it takes a separately sourced bulb and draws whatever current that bulb needs, up to the 2.4 W / 250 V direct-supply limit of the light block — that makes it a straightforward swap-in for panels already stocked with BA9s lamps, but it will need bulb replacement over time, unlike the LED-based XB4BVB/XB4BVM variants in the same range. The red plain lens gives steady, non-flashing indication, and the metal bezel with IP66/IP67/IP69/IP69K sealing holds up to the same wash-down cycles as the XB4 push buttons it is typically panel-mounted alongside.

Applications

Used as a red status or power-on indicator on control panels and operator stations where the panel is already equipped with 250 V BA9s pilot lamps and a 22 mm Harmony XB4 cutout.
