Schneider Electric XALK84W3BE Harmony XALK Illuminated Emergency Stop 1NO 1NC 24V AC DC Control Station

% $-87.09

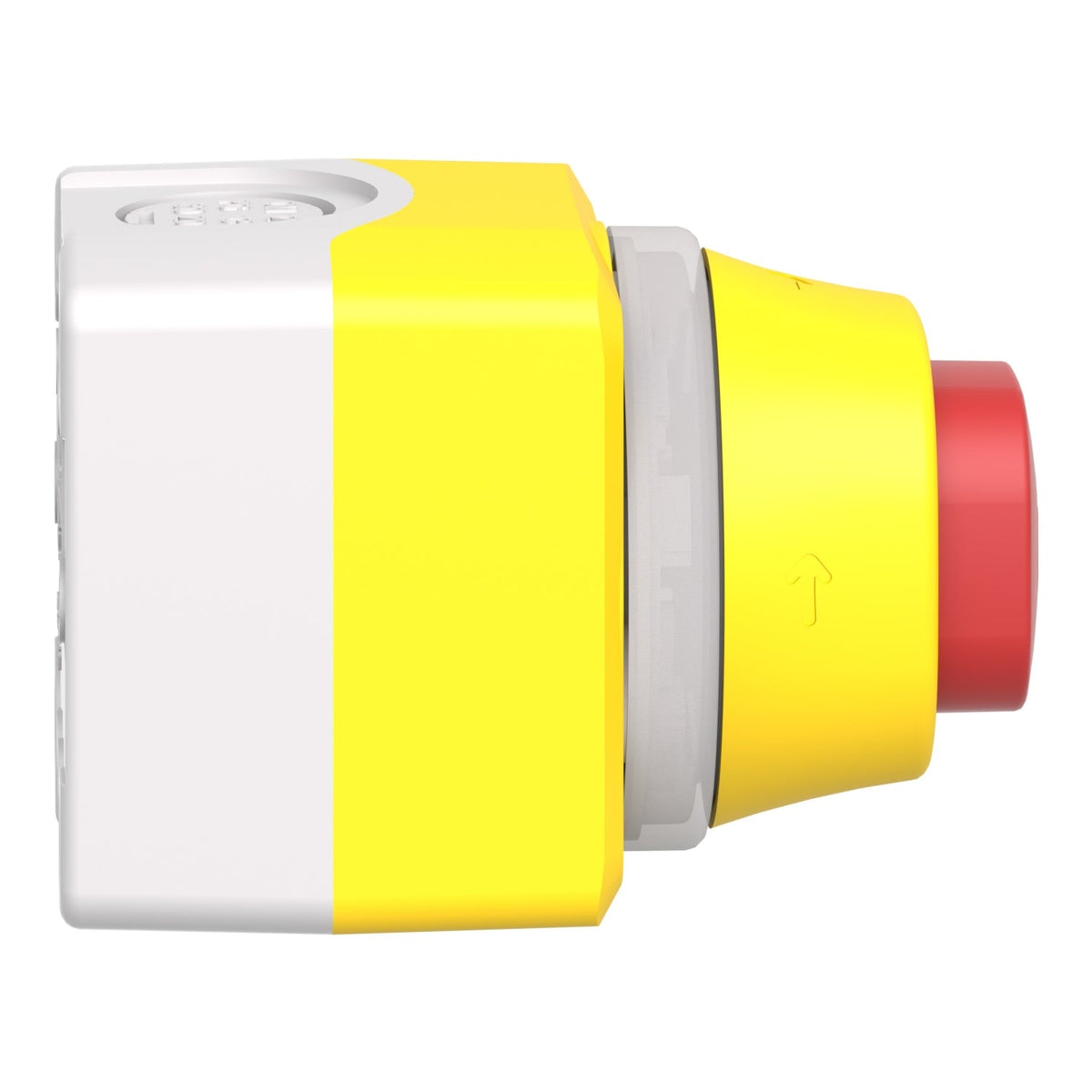

Schneider Electric XALK84W3BE Harmony XALK illuminated emergency stop station
Schneider Electric XALK84W3BE Harmony XALK illuminated emergency stop station

Schneider Electric XALK84W3BE Harmony XALK Illuminated Emergency Stop 1NO 1NC 24V AC DC Control Station

Brand: Schneider Electric
Reference No: XALK84W3BE
Catalog No: XALK84W3BE
Series: Harmony XALK
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$87.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALK84W3BE is a complete Harmony XALK control station for emergency stop, built around a red mushroom-head push button with turn-to-release reset and a white/red illuminated ring supplied at 24 V AC/DC, wired 1NO + 1NC. The yellow-lidded polycarbonate housing is rated IP66/IP67/IP69/IP69K for industrial panel mounting.

Technical Specifications

SKU XALK84W3BE
GTIN 3606489745653
Brand Schneider Electric
Range Harmony XALK
Product type Complete control station
Destination For XB5 22 mm control and signalling units
Application Emergency stop function | Emergency switching off function
Base colour Light grey (RAL 7035)
Cover colour Yellow (RAL 1021)
Material Polycarbonate
Operator profile Red square 32 mm
Composition 1 mushroom head push-button, red, illuminated white/red ring, 1NO + 1NC
Reset Turn to release
Contacts 1 NO + 1 NC
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class Class II
Operating force 44 N
[Ith] conventional thermal current 10 A
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
IP degree of protection IP66/IP67/IP69/IP69K
IK degree of protection IK05
Ambient temperature, operation -40...70 °C
Net weight 0.182 kg
Country of origin CZ

Certifications & Standards

  • UL Listed
  • CSA
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508

Selection Notes

The square 32 mm red profile with illuminated ring distinguishes this from the round XALK178 illuminated series while delivering the same 1NO+1NC output and 24 V AC/DC supply. For a second independent NC contact in the same square profile, the XALK84W3BG is the sibling to specify.

Technical Details

Short Description
Harmony XALK illuminated emergency stop station, turn to release, 1NO+1NC, 24V AC/DC.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XALK84W3BE
Delivery Date (Days)
30 days
Model Number
XALK
Tariff Code
853650
