Schneider Electric XALK188 Harmony XALK Emergency Stop Station 40mm Key Release 1NC Control Station

% $-34.59

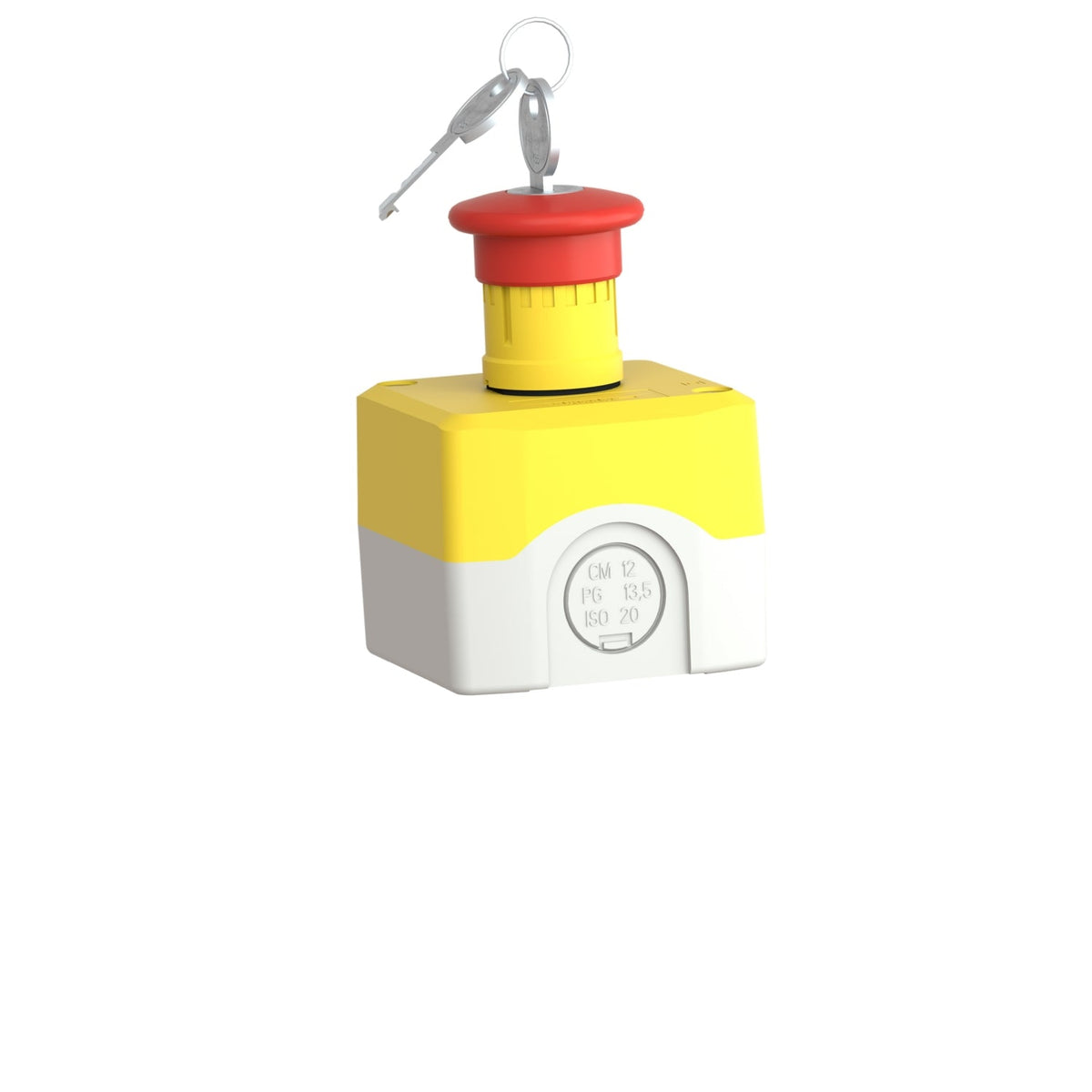

Schneider Electric XALK188 Harmony XALK emergency stop control station key release
Schneider Electric XALK188 Harmony XALK emergency stop control station key release

Schneider Electric XALK188 Harmony XALK Emergency Stop Station 40mm Key Release 1NC Control Station

Brand: Schneider Electric
Reference No: XALK188
Catalog No: XALK188
Series: Harmony XALK
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$34.59

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALK188 is a complete Harmony XALK control station for emergency stop and emergency switching off, built around an unmarked 40 mm red mushroom-head push button with key release (key number 455), wired 1NC. The yellow-lidded polycarbonate housing is rated IP66/IP67/IP69/IP69K for washdown-exposed emergency stop points.

Technical Specifications

SKU XALK188
GTIN 3389119048095
Brand Schneider Electric
Range Harmony XALK
Product type Complete control station
Destination For XB5 22 mm control and signalling units
Application Emergency stop function | Emergency switching off function
Base colour Light grey (RAL 7035)
Cover colour Yellow (RAL 1021)
Material Polycarbonate
Composition 1 mushroom head push-button, 40 mm, red, 1NC, unmarked
Reset Key release
Key number 455
Contacts 1 NC
Operating force 44 N
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
IP degree of protection IP66/IP67/IP69/IP69K
NEMA degree of protection NEMA 4X/13
IK degree of protection IK03
Ambient temperature, operation -40...70 °C
Net weight 0.188 kg
Country of origin CZ

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 508
  • CSA C22.2 No 14
  • ISO 13850
  • IEC 60204-1

Selection Notes

Key release (key number 455) restricts who can reset the emergency stop, which is the reason to specify it over the turn-to-release XALK178 where unauthorized reset is a safety concern. Contact arrangement and IP rating otherwise match the turn-to-release sibling.

Technical Details

Short Description
Harmony XALK emergency stop station, 40mm mushroom button, key release, 1NC.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XALK188
Delivery Date (Days)
30 days
Model Number
XALK
Tariff Code
853650
