Schneider Electric XALK178F Harmony XALK Emergency Stop Station 40mm Turn to Release 2NC Control Station

% $-37.59
Schneider Electric XALK178F Harmony XALK emergency stop control station 2NC
Schneider Electric XALK178F Harmony XALK emergency stop control station 2NC

Schneider Electric XALK178F Harmony XALK Emergency Stop Station 40mm Turn to Release 2NC Control Station

Brand: Schneider Electric
Reference No: XALK178F
Catalog No: XALK178F
Series: Harmony XALK
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$37.59

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

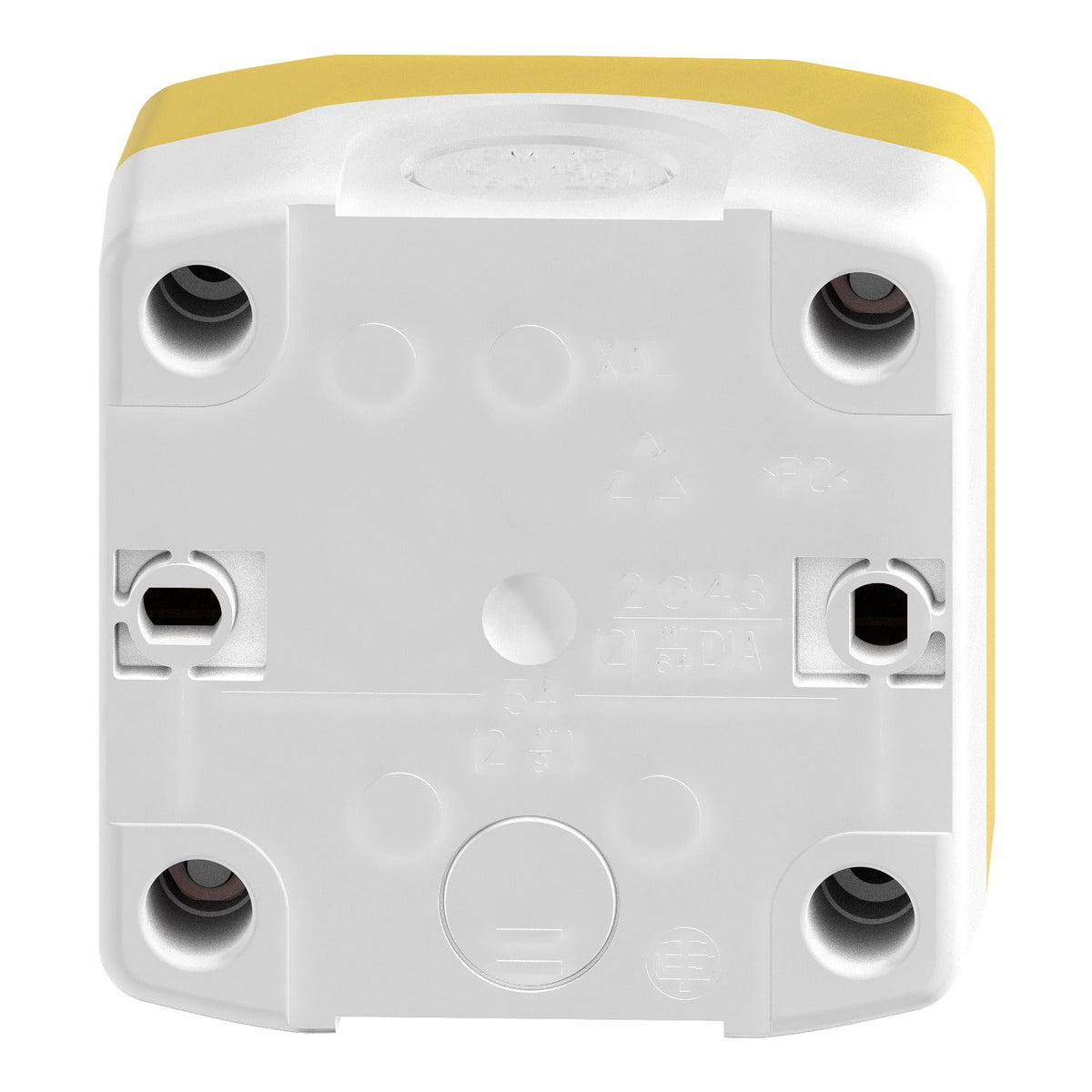

The Schneider Electric XALK178F is a complete Harmony XALK control station for emergency stop and emergency switching off, built around an unmarked 40 mm red mushroom-head push button with turn-to-release reset, wired 2NC. The yellow-lidded polycarbonate housing is rated IP66/IP67/IP69/IP69K for washdown-exposed emergency stop points.

Technical Specifications

SKU XALK178F
GTIN 3389110113648
Brand Schneider Electric
Range Harmony XALK
Product type Complete control station
Destination For XB5 22 mm control and signalling units
Application Emergency stop function | Emergency switching off function
Base colour Light grey (RAL 7035)
Cover colour Yellow (RAL 1021)
Material Polycarbonate
Composition 1 mushroom head push-button, 40 mm, red, 2NC, unmarked
Reset Turn to release
Contacts 2 NC
Operating force 44 N
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
IP degree of protection IP66/IP67/IP69/IP69K
NEMA degree of protection NEMA 4X/13
IK degree of protection IK03
Ambient temperature, operation -40...70 °C
Net weight 0.194 kg
Country of origin CZ

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 508
  • CSA C22.2 No 14
  • ISO 13850
  • IEC 60204-1

Selection Notes

Two independent NC contacts allow this station to break two separate safety circuits from a single button press, which is the reason to specify it over the single-contact XALK178 on machines with dual-channel safety wiring or two independent E-stop loops. Where one NC plus a monitoring NO signal is enough, the XALK178E covers that case instead.

Technical Details

Short Description
Harmony XALK emergency stop station, 40mm mushroom button, turn to release, 2NC.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XALK178F
Delivery Date (Days)
30 days
Model Number
XALK
Tariff Code
853650
