Schneider Electric XALK178 Harmony XALK Emergency Stop 40mm Turn to Release 1NC Control Station

% $-34.70

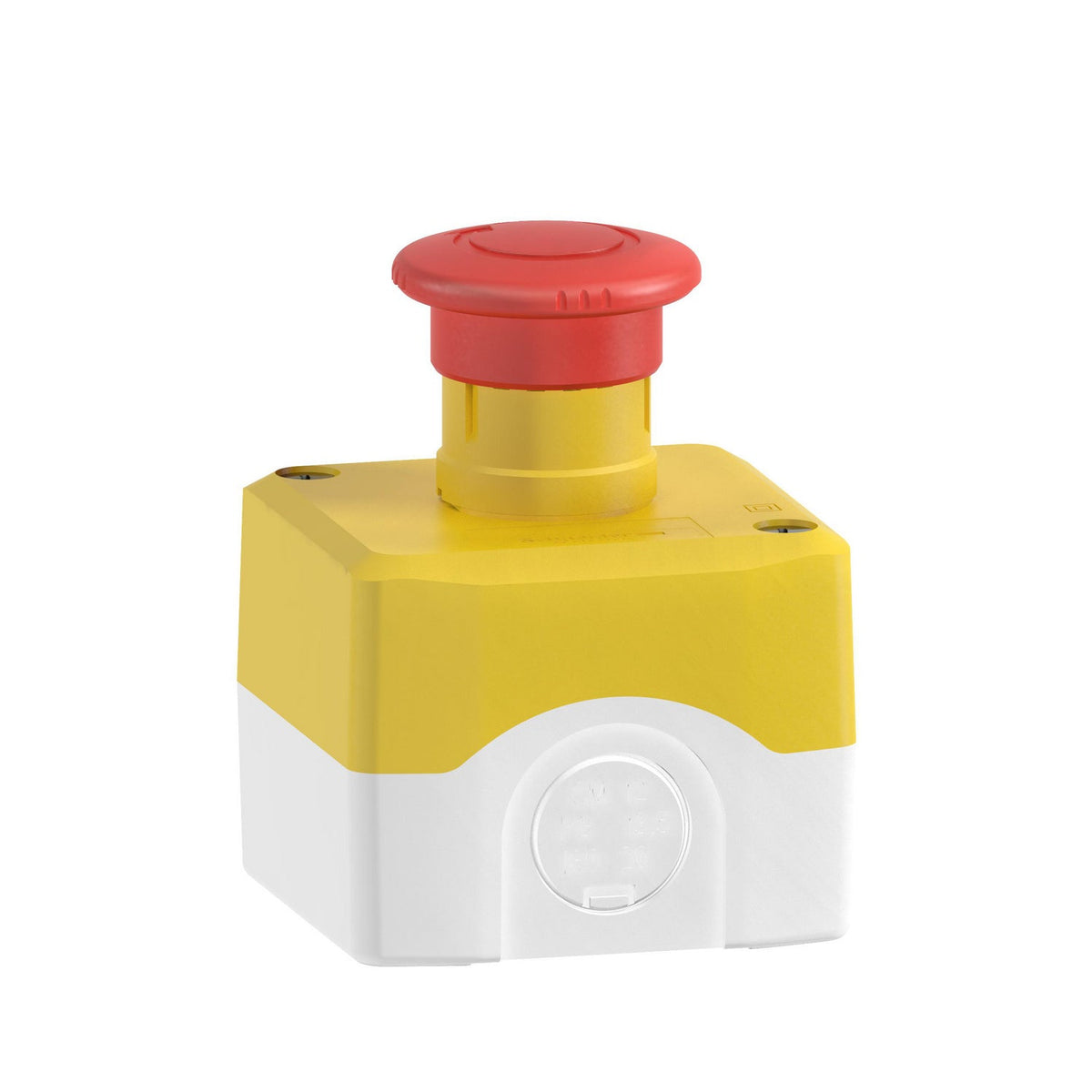

Schneider Electric XALK178 Harmony XALK emergency stop control station 40mm
Schneider Electric XALK178 Harmony XALK emergency stop control station 40mm

Schneider Electric XALK178 Harmony XALK Emergency Stop 40mm Turn to Release 1NC Control Station

Brand: Schneider Electric
Reference No: XALK178
Catalog No: XALK178
Series: Harmony XALK
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$34.70

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALK178 is a complete Harmony XALK control station for emergency stop and emergency switching off, built around an unmarked 40 mm red mushroom-head push button with turn-to-release reset, wired 1NC. The yellow-lidded polycarbonate housing is rated IP66/IP67/IP69/IP69K, giving this station the durability for washdown-exposed emergency stop points.

Technical Specifications

SKU XALK178
GTIN 3389119027892
Brand Schneider Electric
Range Harmony XALK
Product type Complete control station
Destination For XB5 22 mm control and signalling units
Application Emergency stop function | Emergency switching off function
Base colour Light grey (RAL 7035)
Cover colour Yellow (RAL 1021)
Material Polycarbonate
Composition 1 mushroom head push-button, 40 mm, red, 1NC, unmarked
Reset Turn to release
Contacts 1 NC
Operating force 44 N
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
IP degree of protection IP66/IP67/IP69/IP69K
NEMA degree of protection NEMA 4X/13
IK degree of protection IK03
Ambient temperature, operation -40...70 °C
Net weight 0.194 kg
Country of origin CZ

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 508
  • CSA C22.2 No 14
  • ISO 13850
  • IEC 60204-1

Selection Notes

The turn-to-release reset and 1NC contact meet the ISO 13850 requirement that a stop command cannot be cancelled by simply re-pressing the button, which is why this is the baseline choice for a basic emergency stop point. For a dual-circuit interlock adding a monitored 1NO auxiliary, step up to the XALK178E; for a doubled 2NC output feeding two separate safety circuits, use the XALK178F.

Technical Details

Short Description
Harmony XALK emergency stop station, 40mm mushroom button, turn to release, 1NC.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XALK178
Delivery Date (Days)
30 days
Model Number
XALK
Tariff Code
853650
