Schneider Electric XALEK1701 Harmony XALE Red Mushroom Push Button Latching 1NC Control Station

% $-16.62

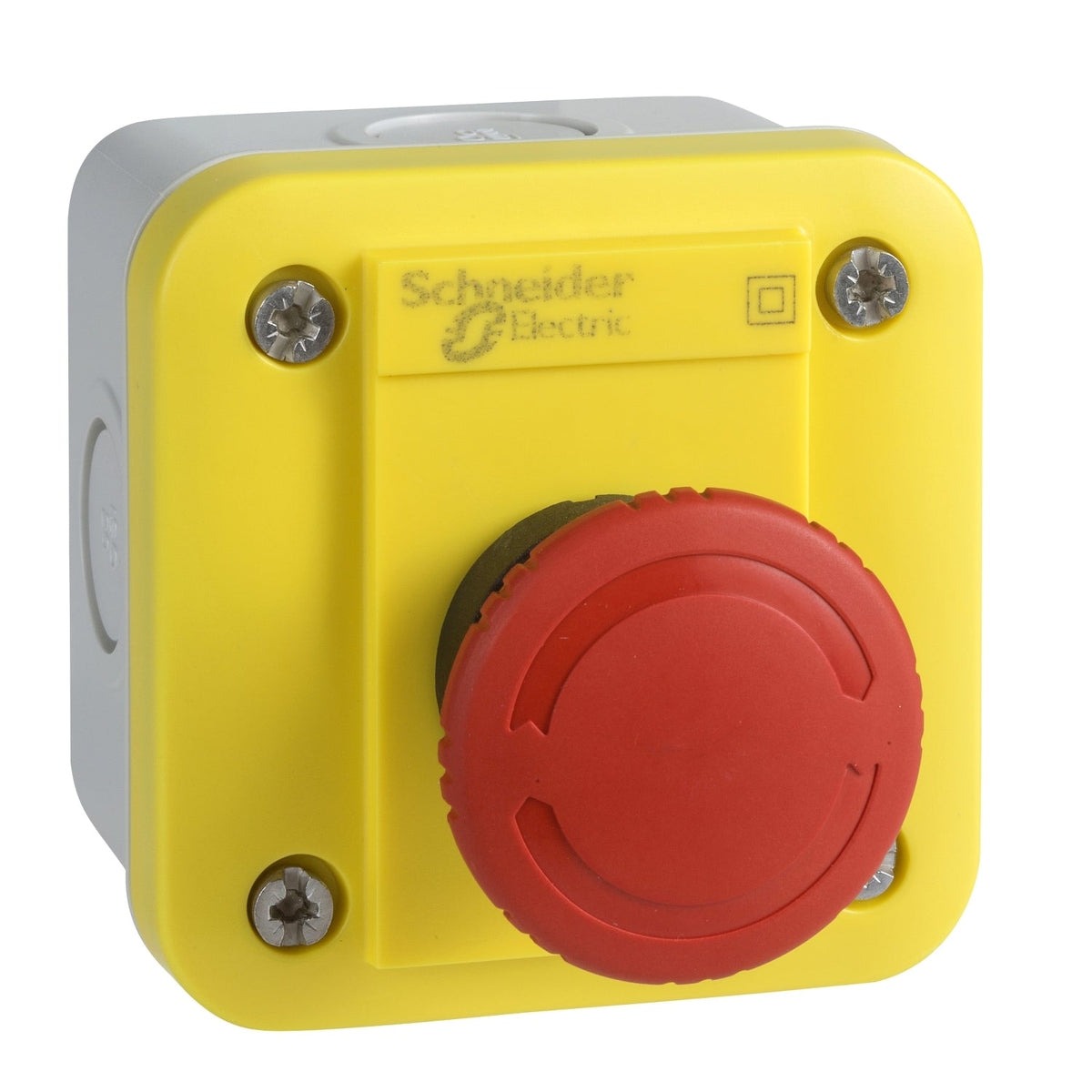

Schneider Electric XALEK1701 Harmony XALE control station emergency switching off
Schneider Electric XALEK1701 Harmony XALE control station emergency switching off

Schneider Electric XALEK1701 Harmony XALE Red Mushroom Push Button Latching 1NC Control Station

Brand: Schneider Electric
Reference No: XALEK1701
Catalog No: XALEK1701
Series: Harmony XALE
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$16.62

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALEK1701 is a ready-to-use Harmony XALE control station for the emergency switching off function, built around a red, latching mushroom-head push button wired 1NC. The ABS enclosure uses a light grey base with a yellow cover and is rated IP54, giving the station double electrical insulation for industrial and infrastructure applications.

Technical Specifications

SKU XALEK1701
Brand Schneider Electric
Range Harmony XALE
Product type Complete control station
Destination For XB7 22 mm control and signalling units
Application Emergency switching off function
Base colour Light grey (RAL 7035)
Cover colour Yellow (RAL 1021)
Material ABS (acrylonitrile butadiene-styrene)
Composition 1 mushroom head push-button, red, latching, 1NC
Contacts 1 NC
Positive opening With, per IEC 60947-5-1 appendix K
Short-circuit protection 4 A cartridge fuse type gG
[Ui] rated insulation voltage 250 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 4 kV
IP degree of protection IP54
IK degree of protection IK05
Electrical shock protection class Class II
Ambient temperature, operation -25...55 °C
Net weight 0.11 kg

Certifications & Standards

  • CE
  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-5
  • IEC 62208

Selection Notes

The positive-opening 1NC contact is the mechanism that guarantees the circuit opens even if the button contacts weld, which is the reason this station is specified for an emergency switching-off point rather than a standard stop button. It is a lighter-duty IP54 alternative to the IP66/IP67/IP69K Harmony XALK emergency-stop stations, suited to indoor panels rather than washdown areas.

Technical Details

Short Description
Harmony XALE control station, red latching mushroom push button, emergency off, 1NC.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP54
Catalog No
XALEK1701
Delivery Date (Days)
30 days
Model Number
XALE
Tariff Code
853650
