- Part number
- XALE3
- Model no
- XALE
Harmony XALESchneider Electric XALE3 Harmony XALE Empty Control Station Light Grey 3 Cut-outs 22 mm Control Station
Harmony XALE empty control station, light grey, 3 cut-outs, IP54, for XB7 22mm units.
Description
About the XALE
About the XALE

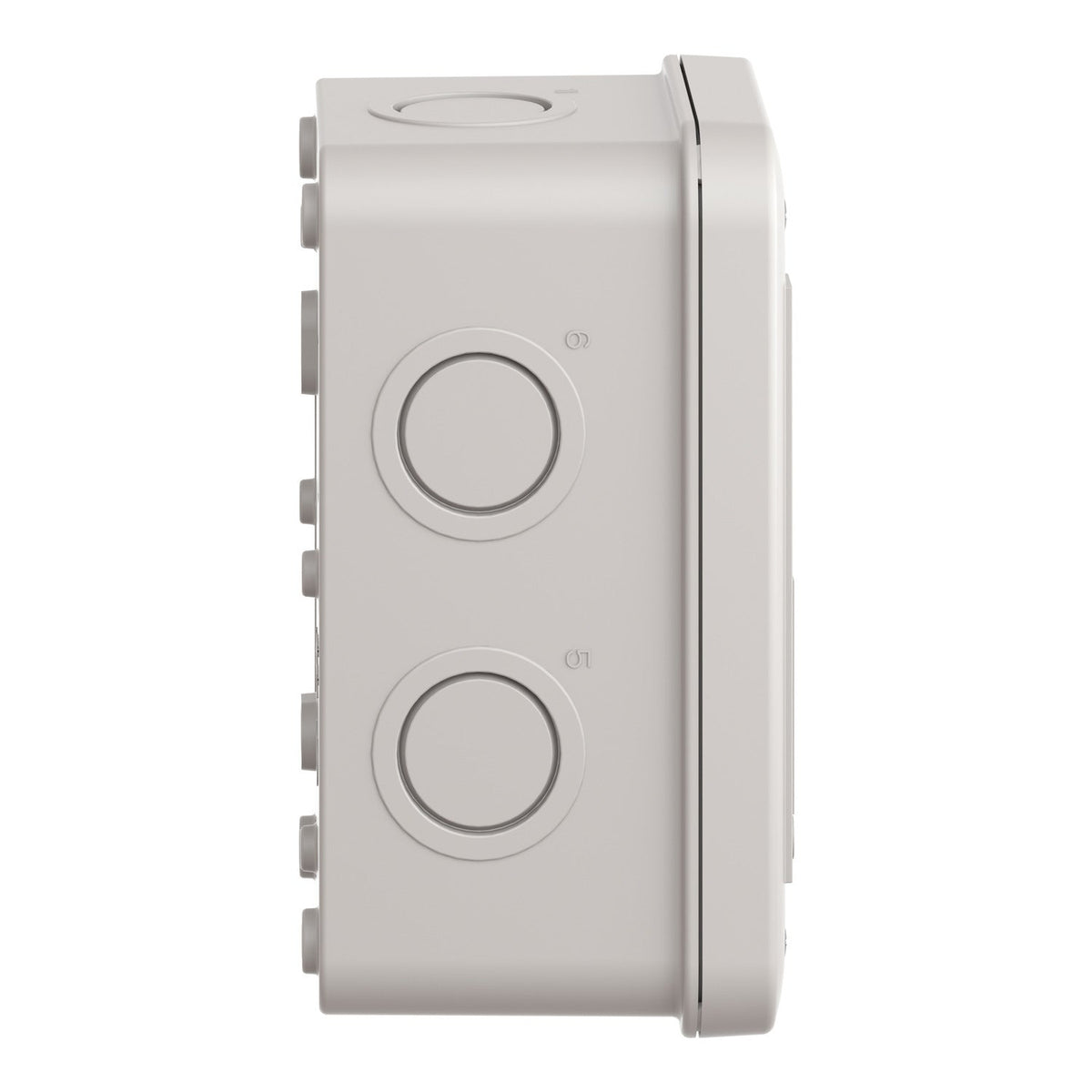

The Schneider Electric XALE3 is an empty Harmony XALE control station enclosure with 3 cut-outs, supplied with a light grey base and cover. Molded in ABS and rated IP54, it is built for customer assembly with three Harmony XB7 22 mm push buttons, switches or pilot lights.
Certifications & Standards
- CE
- IEC 60947-1
- IEC 60947-5-1
- IEC 60947-5-5
- IEC 62208
Selection Notes
Three cut-outs suit panels needing start, stop and an indicator or selector in one enclosure. The XALE2 covers the same construction for two operator positions when a third is not required.
Specification
Full specification
Main 11
| Range of product | Harmony XALE |
|---|---|
| Product or component type | Empty control station |
| Device short name | XALE |
| Product destination | For XB7 Ø 22 mm control and signalling units |
| Number of cut-out | 3 cut-outs |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Light grey (RAL 7035) |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Cable entry | 2 knock-outs, clamping capacity: 20 mm, 6 knock-outs for ISO M20 |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP54 conforming to IEC 60529 |
Complementary 3
| Assembly style | For customer assembly |
|---|---|
| Net weight | 0.1 kg |
| Marking | CE |
Environment 6
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Standards | IEC 62208, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-5 |
Show all 50 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XALE3 |
|---|---|
| Type designation | XALE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.500 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 15.000 cm |
| Package 1 Weight | 94.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 8.300 cm |
| Package 2 Width | 12.200 cm |
| Package 2 Length | 33.400 cm |
| Package 2 Weight | 549.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 30 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.677 kg |
| Shipping weight | 0.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XALE3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 62208
- IEC 60947-1
- IEC 60947-5-1
- IEC 60947-5-5
Quick answers
Questions about the XALE
What is the HS code of XALE for customs?
The tariff (HS) code on file for XALE is 853650.
Where does XALE ship from, and how fast?
XALE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
