- Part number
- XALE1
- Model no
- XALE

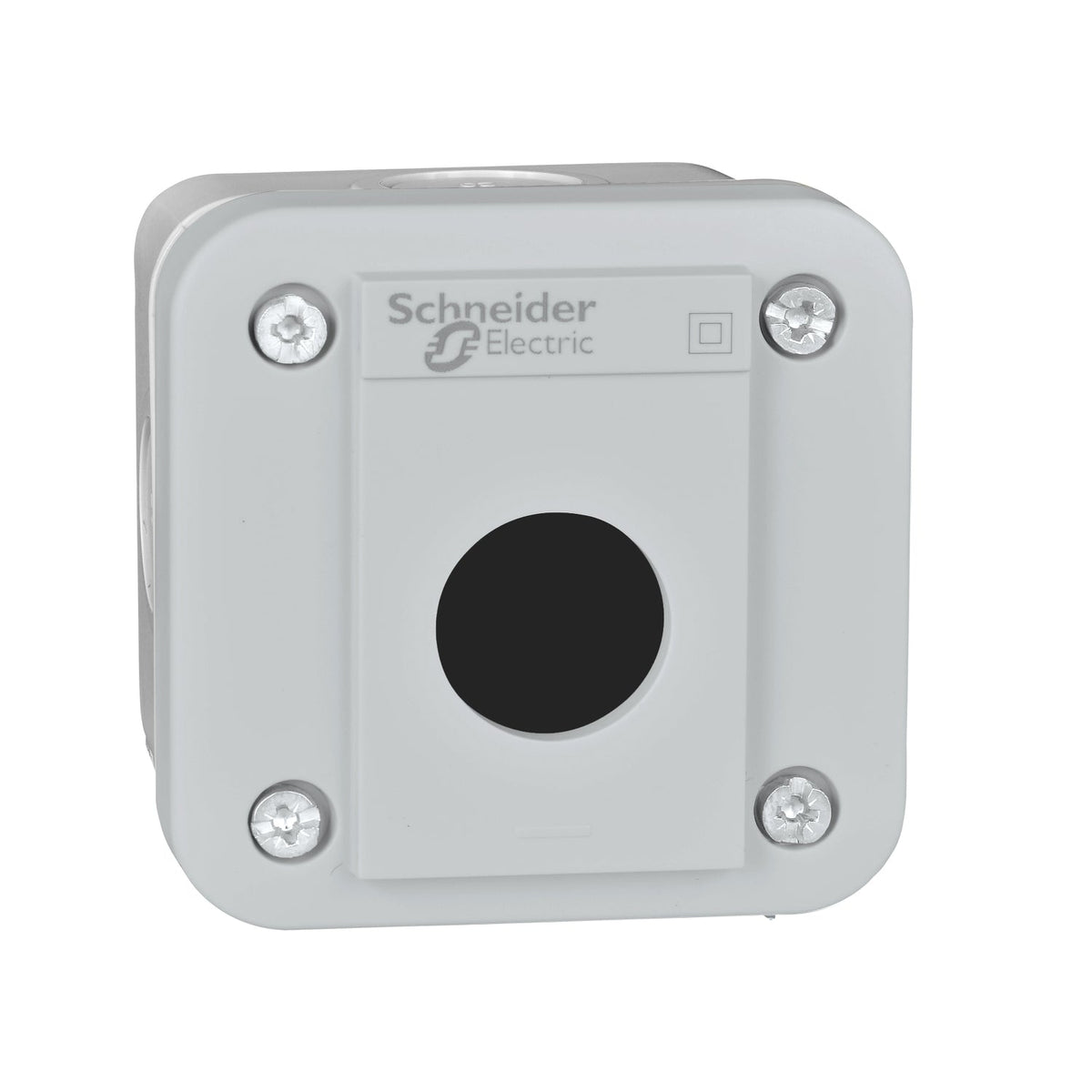

Harmony XALESchneider Electric XALE1 Harmony XALE Empty Control Station Light Grey 1 Cut-out 22 mm Control Station
Harmony XALE empty control station, light grey, 1 cut-out, IP54, for XB7 22mm units.
Description
About the XALE
About the XALE
The Schneider Electric XALE1 is an empty Harmony XALE control station enclosure with a single 22 mm cut-out, supplied with a light grey base and light grey cover. Molded in ABS, it is rated IP54 and is built for customer assembly with Harmony XB7 push buttons, switches and pilot lights.
Certifications & Standards
- CE
- IEC 60947-1
- IEC 60947-5-1
- IEC 60947-5-5
- IEC 62208
Selection Notes
With a single cut-out, this enclosure fits a one-function station; for stations needing two or three operator positions in the same light grey finish, the XALE2 and XALE3 share the same IP54 ABS construction with additional cut-outs.
Specification
Full specification
Main 11
| Range of product | Harmony XALE |
|---|---|
| Product or component type | Empty control station |
| Device short name | XALE |
| Product destination | For XB7 Ø 22 mm control and signalling units |
| Number of cut-out | 1 cut-out |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Light grey (RAL 7035) |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Cable entry | 2 knock-outs, clamping capacity: 16 mm, 4 knock-outs for ISO M20 |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP54 conforming to IEC 60529 |
Complementary 3
| Assembly style | For customer assembly |
|---|---|
| Net weight | 0.08 kg |
| Marking | CE |
Environment 6
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Standards | IEC 62208, IEC 60947-5-1, IEC 60947-5-5, IEC 60947-1 |
Show all 50 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XALE1 |
|---|---|
| Type designation | XALE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.200 cm |
| Package 1 Width | 8.100 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 72.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 8.300 cm |
| Package 2 Width | 8.100 cm |
| Package 2 Length | 31.300 cm |
| Package 2 Weight | 414.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 45 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.200 kg |
| Shipping weight | 0.08 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
