- Part number
- XALD363M
- Model no
- XALD

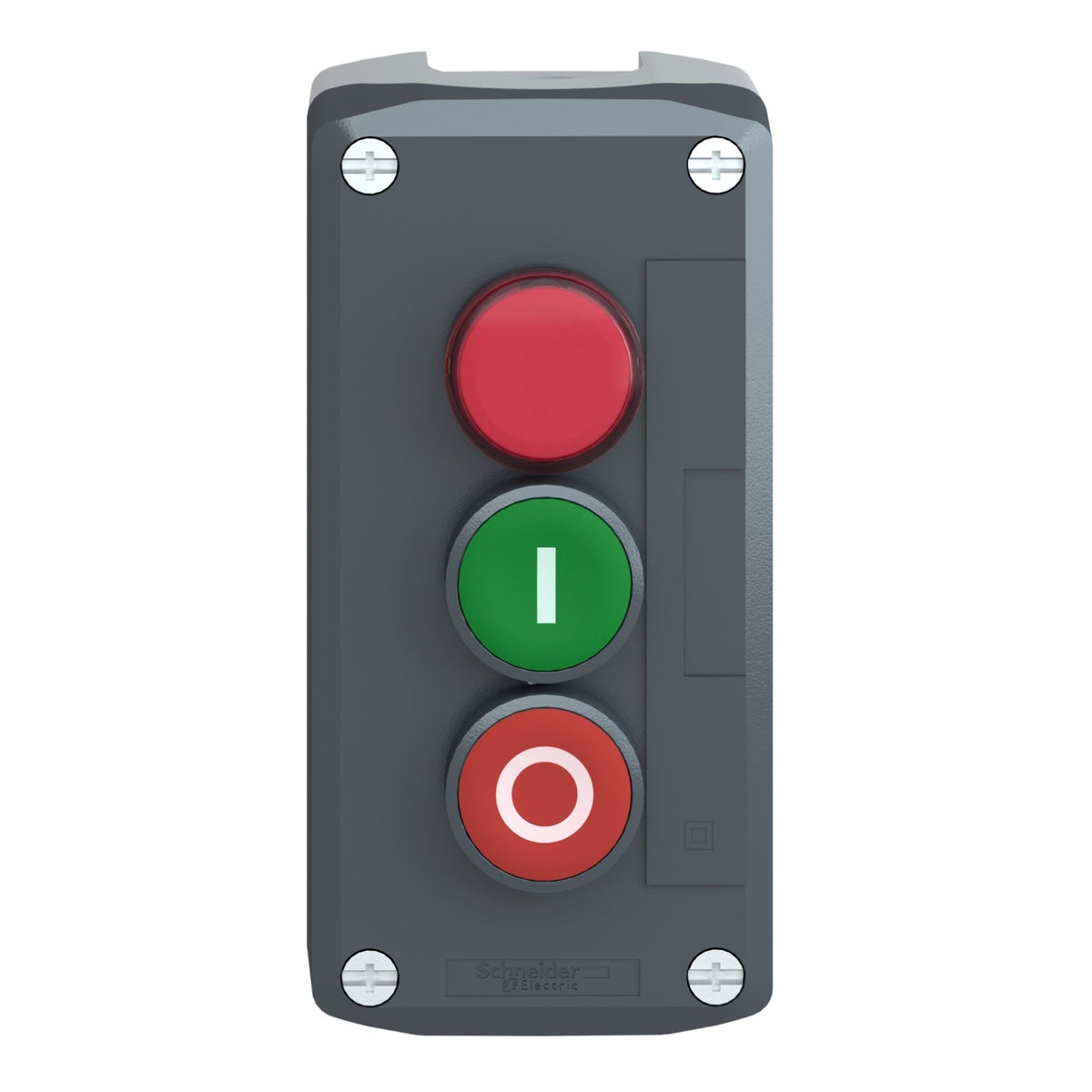

Harmony XALDSchneider Electric XALD363M Harmony XALD Station Green Red Push Buttons Red Pilot Light 230V Control Station
Harmony XALD control station, green/red push buttons, red pilot light 230V AC.
Description
About the XALD
About the XALD
The Schneider Electric XALD363M is a Harmony XALD complete control station that pairs green I (1NO) and red O (1NC) flush push buttons with a central red LED pilot light supplied at 230 V AC. Housed in dark grey polycarbonate rated IP66/IP67/IP69/IP69K, it gives a single-cutout-group start/stop point with visual status feedback.
Certifications & Standards
- IEC 60947-5-1
- IEC 60947-5-4
- IEC 60947-5-5
- UL 508
- CSA C22.2 No 14
- JIS C8201-1
- JIS C8201-5-1
Selection Notes
The built-in red pilot light is the differentiator versus the plain two-button XALD213/XALD215: pick the XALD363M when the panel needs a local running or fault indication alongside start/stop, and confirm the 230 V AC supply matches the control circuit before wiring the lamp, since it is not rated for the 24...600 V push-button control range used by the contacts.
Specification
Full specification
Main 16
| Range of product | Harmony XALD |
|---|---|
| Product or component type | Complete control station |
| Device short name | XALD |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Control station application | Start-Stop function |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Dark grey (RAL 7016) |
| Material | Polycarbonate |
| Operator profile | 2 flush push-buttons - 1 central pilot light |
| Operators description | Green ''I'' 1 NO - red ''O'' 1 NC |
| Control station composition | 1 flush push-button, green 1 NO I marking, 1 flush push-button, red 1 NC O marking, 1 pilot light |
| Marking location | Marking on push-button |
| Contact operation | Slow-break |
| Light source | Integrated and protected LED |
| Light source colour | Red |
| [Us] rated supply voltage | 230 V AC |
Complementary 40
| AC control voltage 50 HZ | 230 V |
|---|---|
| Cable entry | 2 knock-outs for cable entry, clamping capacity: 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| AC control voltage 60 HZ | 230 V |
| Net weight | 0.261 kg |
| DC control voltage | 125…600 V |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Number of command positions | 2 |
| Number of indicator lights | 1 |
| Colour of marking | White marking when green, red or black caps, Black marking when white caps |
| Number of push buttons | 2 |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel) |
| Operating force | 3.5 N NC changing electrical state, 3.8 N NO changing electrical state |
| Mechanical durability | 10000000 cycles |
| Number of selector switches | 0 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Number of key switches | 0 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Number of mushroom-shaped push-buttons | 0 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4, Λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| Emergency power off | No |
| Supply voltage limits | 195…264 V AC |
| Current consumption | 14 mA |
| Number of contacts as normally closed contact | 1 |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Housing material | Plastic |
| Housing colour | Grey |
| colour of cover | Dark grey |
Environment 14
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| NEMA degree of protection | NEMA 13, NEMA 4X |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Standards | IEC 60947-1, IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-5, IEC 60947-5-1, UL 508, JIS C8201-1 |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission | Class B conforming to IEC 55011 |
Show all 100 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XALD363M |
|---|---|
| Type designation | XALD |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.1 cm |
| Package 1 Width | 9.8 cm |
| Package 1 Length | 14.1 cm |
| Package 1 Weight | 289 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.713 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 77 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 70.916 kg |
| Shipping weight | 0.261 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
