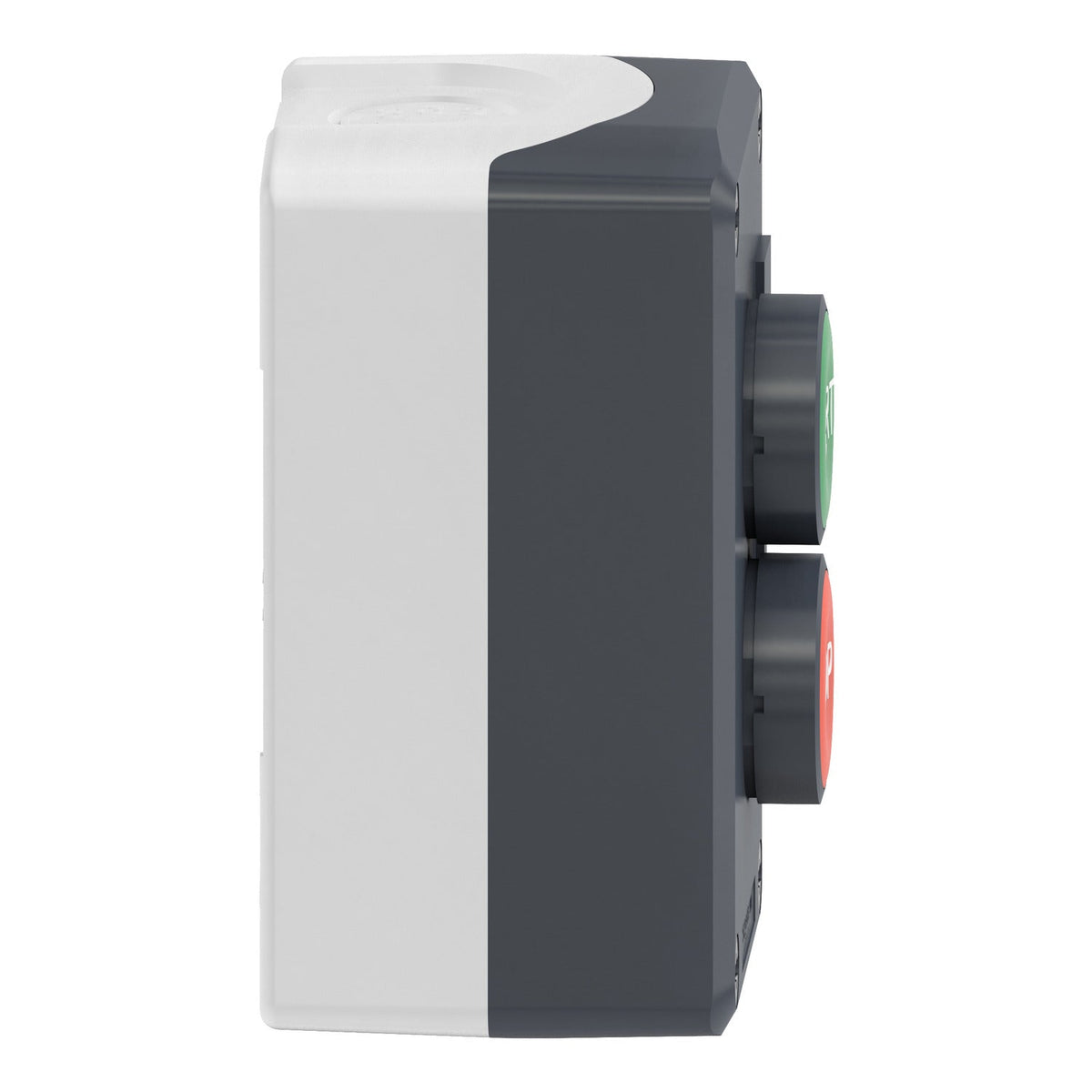

Schneider Electric XALD215 Harmony XALD Control Station Green START Red STOP 1NO 1NC 22 mm Control Station

% $-29.65
Schneider Electric XALD215 Harmony XALD control station START STOP push buttons
Schneider Electric XALD215 Harmony XALD control station START STOP push buttons

Schneider Electric XALD215 Harmony XALD Control Station Green START Red STOP 1NO 1NC 22 mm Control Station

Brand: Schneider Electric
Reference No: XALD215
Catalog No: XALD215
Series: Harmony XALD
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$29.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALD215 is a Harmony XALD complete control station with two flush push buttons marked START (green, 1NO) and STOP (red, 1NC). The dark grey polycarbonate enclosure carries IP66/IP67/IP69/IP69K protection, suiting this two-button start/stop station for washdown or dusty production environments.

Technical Specifications

SKU XALD215
Brand Schneider Electric
Range Harmony XALD
Product type Complete control station
Destination For XB5 22 mm control and signalling units
Application Start-Stop function
Base colour Light grey (RAL 7035)
Cover colour Dark grey (RAL 7016)
Material Polycarbonate
Composition 1 flush push-button, green, 1NO START marking | 1 flush push-button, red, 1NC STOP marking
Contacts 1 NO + 1 NC
Contacts material Silver alloy (Ag/Ni)
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
IP degree of protection IP66/IP67/IP69/IP69K
NEMA degree of protection NEMA 4X/13
IK degree of protection IK03
Ambient temperature, operation -40...70 °C
Net weight 0.233 kg

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-1
  • JIS C8201-5-1

Selection Notes

Printed START/STOP legends on the push-button faces make this the clearer choice over the I/O-marked XALD213 when operators are not familiar with IEC symbol conventions. Function and contact arrangement are otherwise identical between the two.

Technical Details

Short Description
Harmony XALD control station, green START 1NO, red STOP 1NC, IP66/IP67/IP69/IP69K.
Mounting Type
Panel mount, 22 mm cut-outs
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XALD215
Delivery Date (Days)
30 days
Model Number
XALD
Tariff Code
853650
