- Part number
- XALD213
- Model no
- XALD
Description
About the XALD
About the XALD

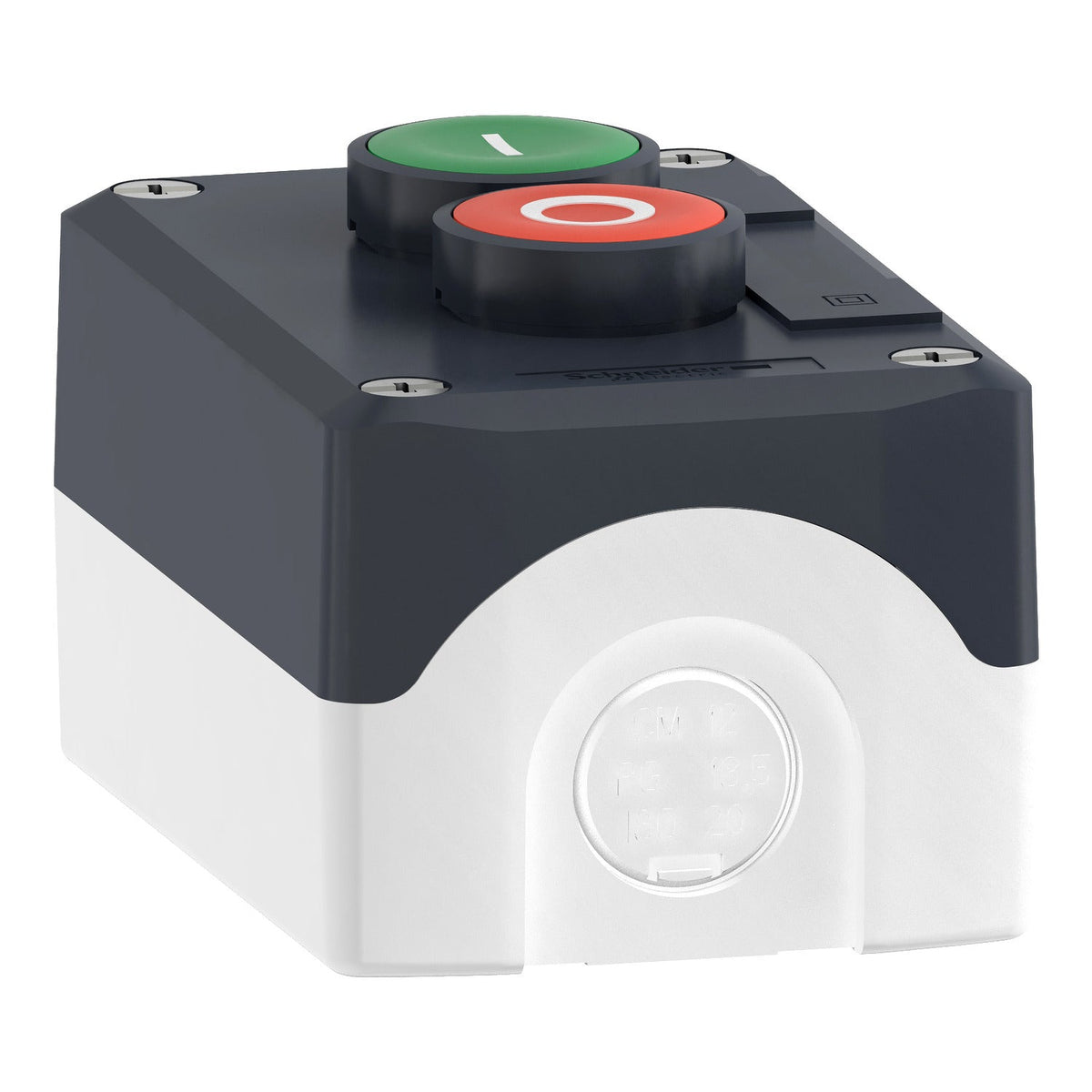

The Schneider Electric XALD213 is a Harmony XALD complete control station with two flush push buttons marked directly on the button face: green I (1NO) and red O (1NC). Made from dark grey polycarbonate rated IP66/IP67/IP69/IP69K, this compact start/stop station is built for machines where panel space and washdown resistance both matter.
Certifications & Standards
- IEC 60947-5-1
- IEC 60947-5-4
- IEC 60947-5-5
- UL 508
- CSA C22.2 No 14
- JIS C8201-1
- JIS C8201-5-1
Selection Notes
Marking I/O directly on the button caps rather than on a separate legend holder keeps the labelling permanent and resistant to wear. For the same 1NO+1NC function with text-based START/STOP marking instead, the XALD215 is the direct sibling to specify.
Specification
Full specification
Main 13
| Range of Product | Harmony XALD |
|---|---|
| Product or Component Type | Complete control station |
| Device short name | XALD |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Control station application | Start-Stop function |
| Colour of base of enclosure | Light grey RAL 7035) |
| Colour of cover | Dark grey RAL 7016) |
| Material | Polycarbonate |
| Operator profile | 2 flush push-buttons |
| Operators description | Green ''I'' 1 NO - red ''O'' 1 NC |
| Control station composition | 1 flush push-button, green 1 NO I, 1 flush push-button, red 1 NC O |
| Marking location | Marking on push-button |
| Contact operation | Slow-break |
Complementary 35
| AC control voltage 50 HZ | 120…600 V |
|---|---|
| Cable entry | 2 knock-outs for cable entry 0.6 in (14 mm), 2 knock-outs for Pg 13 cable gland and ISO M20 0.5 in (12 mm) |
| AC control voltage 60 HZ | 120…600 V |
| Net Weight | 0.514 lb(US) (0.233 kg) |
| DC control voltage | 125…600 V |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Number of command positions | 2 |
| Number of indicator lights | 0 |
| Colour of marking | White marking when green, red or black caps, Black marking when white caps |
| Number of push buttons | 2 |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state), 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state, 3.8 N NO changing electrical state |
| Mechanical durability | 10000000 cycles |
| Number of selector switches | 0 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Number of key switches | 0 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| Number of mushroom-shaped push-buttons | 0 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4 |
| Emergency Power Off (EPO) | No |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Housing material | Plastic |
| Housing Colour | Grey |
| colour of cover | Dark grey |
Environment 10
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| NEMA degree of protection | NEMA 13, NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Standards | IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, UL 508, IEC 60947-5-5, JIS C8201-5-1, IEC 60947-1, JIS C8201-1 |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 72 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XALD213 |
|---|---|
| Type designation | XALD |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110114065 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | MX |
|---|---|
| Shipping weight | 0.233 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
