Schneider Electric XALD211H29 Harmony XALD Control Station Green START 1NO Red STOP 1NC 22 mm Control Station

% $-31.62

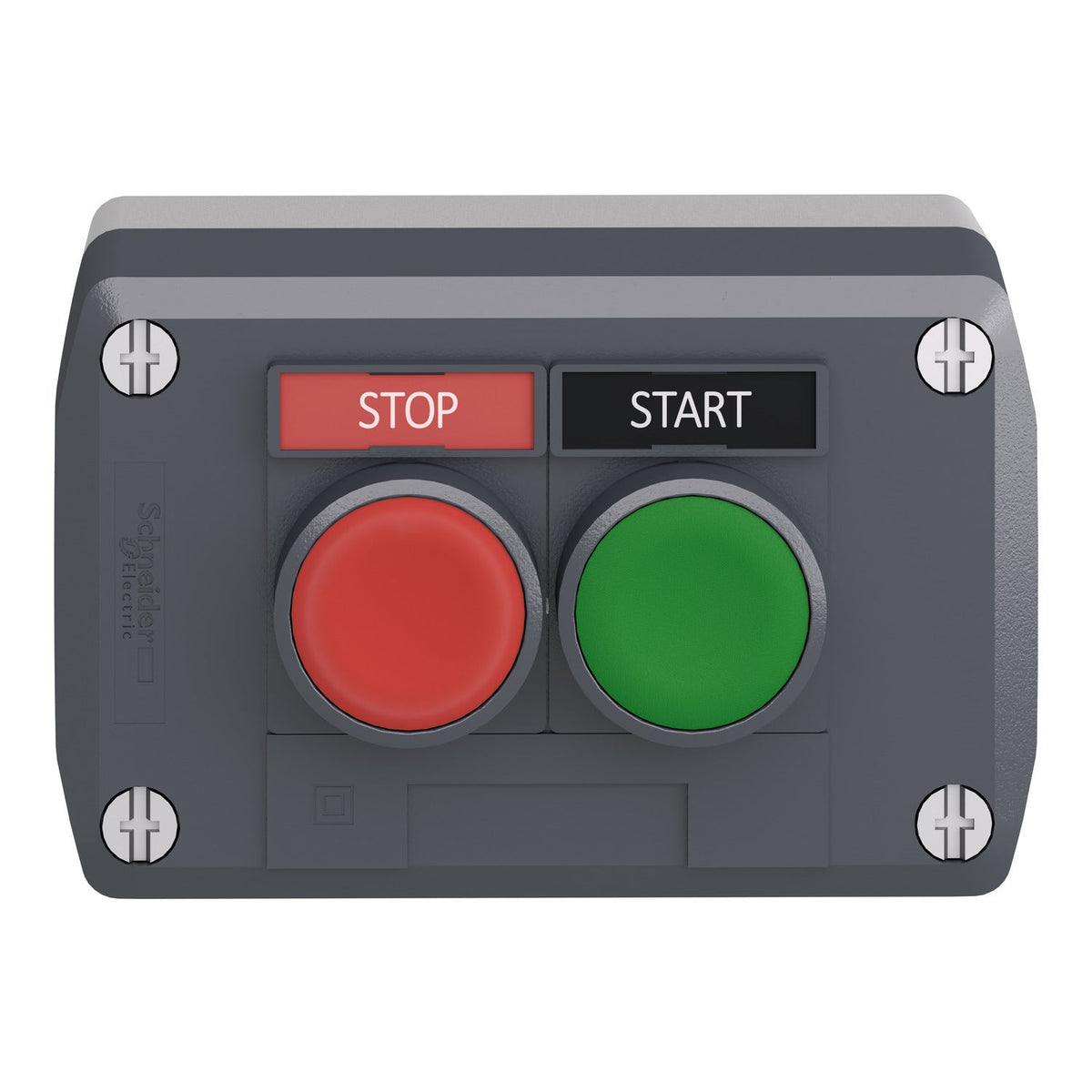

Schneider Electric XALD211H29 Harmony XALD control station START STOP push buttons
Schneider Electric XALD211H29 Harmony XALD control station START STOP push buttons

Schneider Electric XALD211H29 Harmony XALD Control Station Green START 1NO Red STOP 1NC 22 mm Control Station

Brand: Schneider Electric
Reference No: XALD211H29
Catalog No: XALD211H29
Series: Harmony XALD
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$31.62

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALD211H29 is a Harmony XALD complete control station combining a green flush START push button (1NO) and a red projecting STOP push button (1NC), with a legend holder marked START/STOP. The dark grey polycarbonate enclosure is rated IP66/IP67/IP69/IP69K, giving this two-button station the durability for washdown-exposed start/stop points on machines and conveyors.

Technical Specifications

SKU XALD211H29
GTIN 3389110114423
Brand Schneider Electric
Range Harmony XALD
Product type Complete control station
Destination For XB5 22 mm control and signalling units
Application Start-Stop function
Base colour Light grey (RAL 7035)
Cover colour Dark grey (RAL 7016)
Material Polycarbonate
Composition 1 flush push-button, green, 1NO START | 1 flush push-button, red, 1NC STOP
Contacts 1 NO + 1 NC
Contacts material Silver alloy (Ag/Ni)
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
IP degree of protection IP66/IP67/IP69/IP69K
NEMA degree of protection NEMA 4X/13
IK degree of protection IK03
Ambient temperature, operation -40...70 °C
Net weight 0.233 kg

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-1
  • JIS C8201-5-1

Selection Notes

The paired 1NO/1NC contacts let a single station drive both a start command and a hard-wired stop interlock from one cut-out set. The legend holder (marked START/STOP) differentiates this variant from the unmarked XALD213 pairing; pick the marked version when the panel layout benefits from printed function labels.

Technical Details

Short Description
Harmony XALD control station, green START 1NO, red STOP 1NC, IP66/IP67/IP69/IP69K.
Mounting Type
Panel mount, 22 mm cut-outs
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XALD211H29
Delivery Date (Days)
30 days
Model Number
XALD
Tariff Code
853650
