Part number
XALD144
Model no
XALD
$32.83 On request Dispatch — · From TürkiyeGet a Quote
Harmony XALD

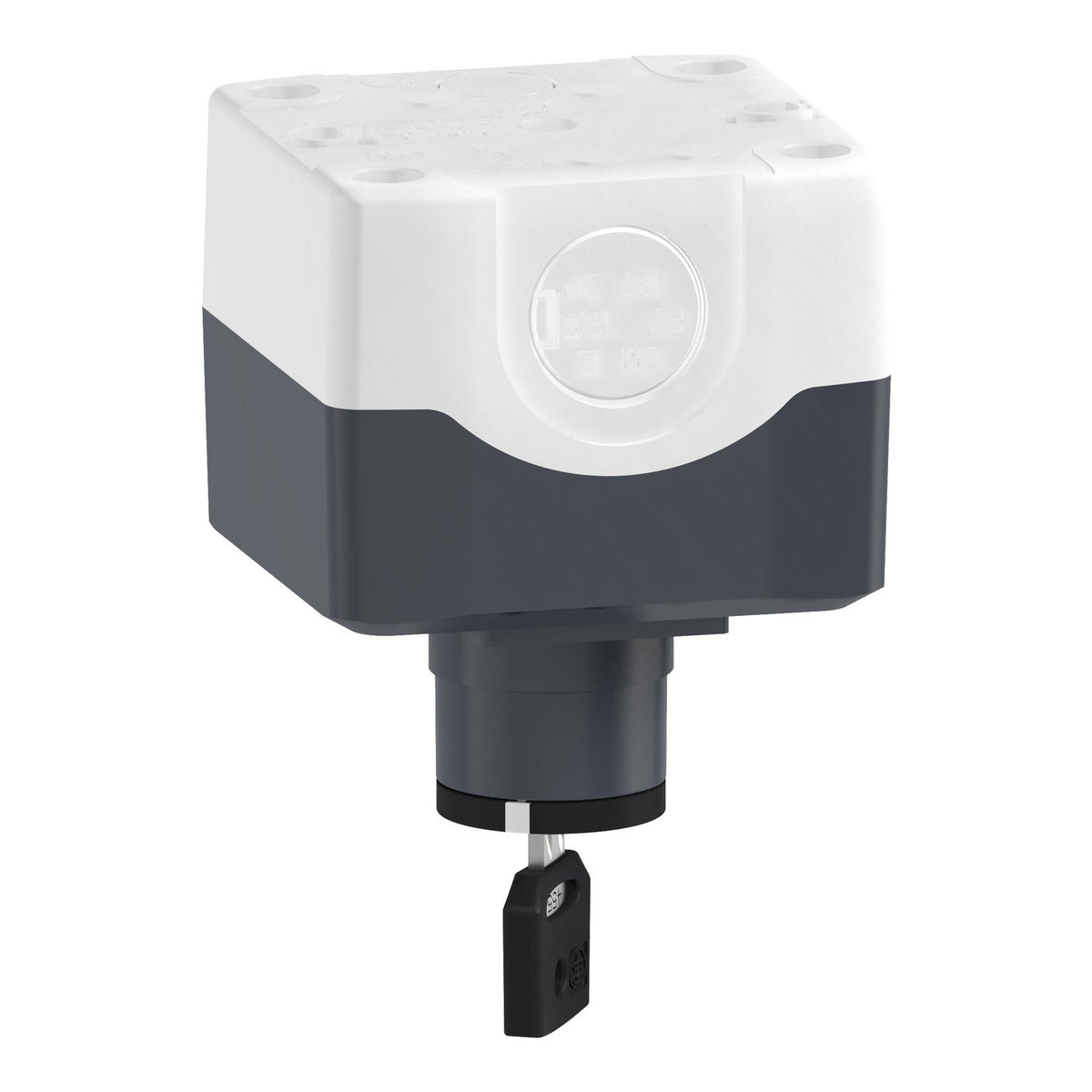

Schneider Electric XALD144 Harmony XALD Control Station 1 Key Selector Switch O-I 1NO 22 mm Control Station

Harmony XALD control station, 1 key selector switch O-I, 1NO, IP66/IP67/IP69/IP69K.

Range of product
Harmony XALD
Product or component type
Complete control station
Device short name
XALD
Product destination
For XB5 Ø 22 mm control and signalling units
Control station application
Start-Stop function
Colour of base of enclosure
Light grey (RAL 7035)
Description

About the XALD

The Schneider Electric XALD144 is a Harmony XALD complete control station built around a single key selector switch, marked O-I, wired 1NO with a left-hand key withdrawal (key number 455). The dark grey polycarbonate enclosure carries IP66/IP67/IP69/IP69K protection, suiting applications where an operator mode must be locked against unauthorized changeover.

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-1
  • JIS C8201-5-1

Selection Notes

The key cylinder (key number 455) restricts who can change the O-I state, which is the reason to pick this over the handle-operated XALD134 covering the same function: use XALD144 wherever mode selection needs to be reserved for authorized operators, and XALD134 where free access is acceptable.

Specification

Full specification

84 values · Last verified 30 Oct 2026

Main 13

Range of product Harmony XALD
Product or component type Complete control station
Device short name XALD
Product destination For XB5 Ø 22 mm control and signalling units
Control station application Start-Stop function
Colour of base of enclosure Light grey (RAL 7035)
Colour of cover Dark grey (RAL 7016)
Material Polycarbonate
Operator profile 1 key selector switch
Operators description Key switch ''O-I'' 1 NO
Control station composition 1 key selector switch 1 NO O-I marking
Marking location Marking on legend holder
Contact operation Slow-break

Complementary 37

AC control voltage 50 HZ 120…600 V
Cable entry 2 knock-outs for cable entry, clamping capacity: 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
AC control voltage 60 HZ 120…600 V
Net weight 0.187 kg
DC control voltage 125…600 V
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Number of command positions 1
Number of indicator lights 0
Operator position information 2 positions
Key number 455
Key withdrawal position Left-hand
Number of push buttons 0
Positive opening Without
Operating travel 4.3 mm (total travel)
Torque value 0.14 N.m NO changing electrical state
Mechanical durability 1000000 cycles
Number of selector switches 0
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Tightening torque 0.8…1.2 N.m conforming to IEC 60947-1
Number of key switches 1
Shape of screw head Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Number of mushroom-shaped push-buttons 0
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ie] rated operational current 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4, Λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4
Emergency power off No
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Housing material Plastic
Housing colour Grey
colour of cover Dark grey

Environment 10

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529, IP67, IP69, IP69K
NEMA degree of protection NEMA 13, NEMA 4X
IK degree of protection IK03 conforming to IEC 62262
Standards IEC 60947-5-1, CSA C22.2 No 14, UL 508, JIS C8201-5-1, IEC 60947-5-5, IEC 60947-5-4, IEC 60947-1, JIS C8201-1
Vibration resistance 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Show all 84 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XALD144
Type designation XALD
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 7.000 cm
Package 1 Length 10.000 cm
Package 1 Weight 189.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 40
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.940 kg
Shipping weight 0.187 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XALD144

No documents are on file for this part yet.
