Schneider Electric XALD103 Harmony XALD 1 Green Pushbutton Marked START Spring Return 1NO Control Station

% $-19.76
Schneider Electric XALD103 Harmony XALD control station green pushbutton marked START
Schneider Electric XALD103 Harmony XALD control station green pushbutton marked START

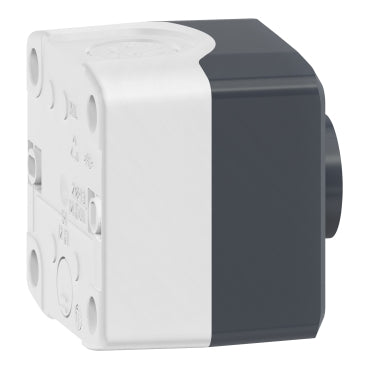

Schneider Electric XALD103 Harmony XALD 1 Green Pushbutton Marked START Spring Return 1NO Control Station

Brand: Schneider Electric
Reference No: XALD103
Catalog No: XALD103
Series: Harmony XALD
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$19.76

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALD103 is a Harmony XALD complete control station with 1 green flush push button marked 'START', spring return, wired 1 NO. Its dark grey polycarbonate enclosure is rated IP66/IP67/IP69/IP69K and uses screw-clamp terminals rated 10 A.

Technical Specifications

Reference XALD103
Brand Schneider Electric
Range Harmony XALD
Device Short Name XALD
Product Type Complete control station
Control Station Application Start function
Operator Profile 1 flush push-button
Operators Description Green 'START', 1 NO
Marking Location Marking on push-button
Material Polycarbonate
Colour of Base Light grey (RAL 7035)
Colour of Cover Dark grey (RAL 7016)
Contact Operation Slow-break
Positive Opening Without
Number of Contacts (NO / NC) 1 NO / 0 NC
Connections Screw clamp terminals, up to 1.5 mm2 (with cable end) / 0.22 mm2 min (without cable end)
Conventional Free Air Thermal Current (Ith) 10 A (IEC 60947-5-1)
Rated Insulation Voltage (Ui) 600 V, pollution degree 3 (IEC 60947-1)
Rated Impulse Withstand Voltage (Uimp) 6 kV (IEC 60947-1)
Rated Operational Current (Ie) 6 A at 120 V / 3 A at 240 V / 1.2 A at 600 V, AC-15
Short-Circuit Protection 10 A gG cartridge fuse
Contacts Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66, IP67, IP69, IP69K
IK Degree of Protection IK03
Ambient Air Temperature (Operation) -40 to 70 degC
Net Weight 0.156 kg

Certifications & Standards

  • IEC 60947-5-4
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • UL 508
  • IEC 60947-1
  • JIS C8201-5-1
  • IEC 60947-5-5
  • JIS C8201-1

Selection Notes

The XALD103 provides a single green 1 NO start pushbutton marked 'START' on the button cap; choose the XALD102 instead when the legend should read 'I', or the XALD112 for a red 1 NC stop function.
