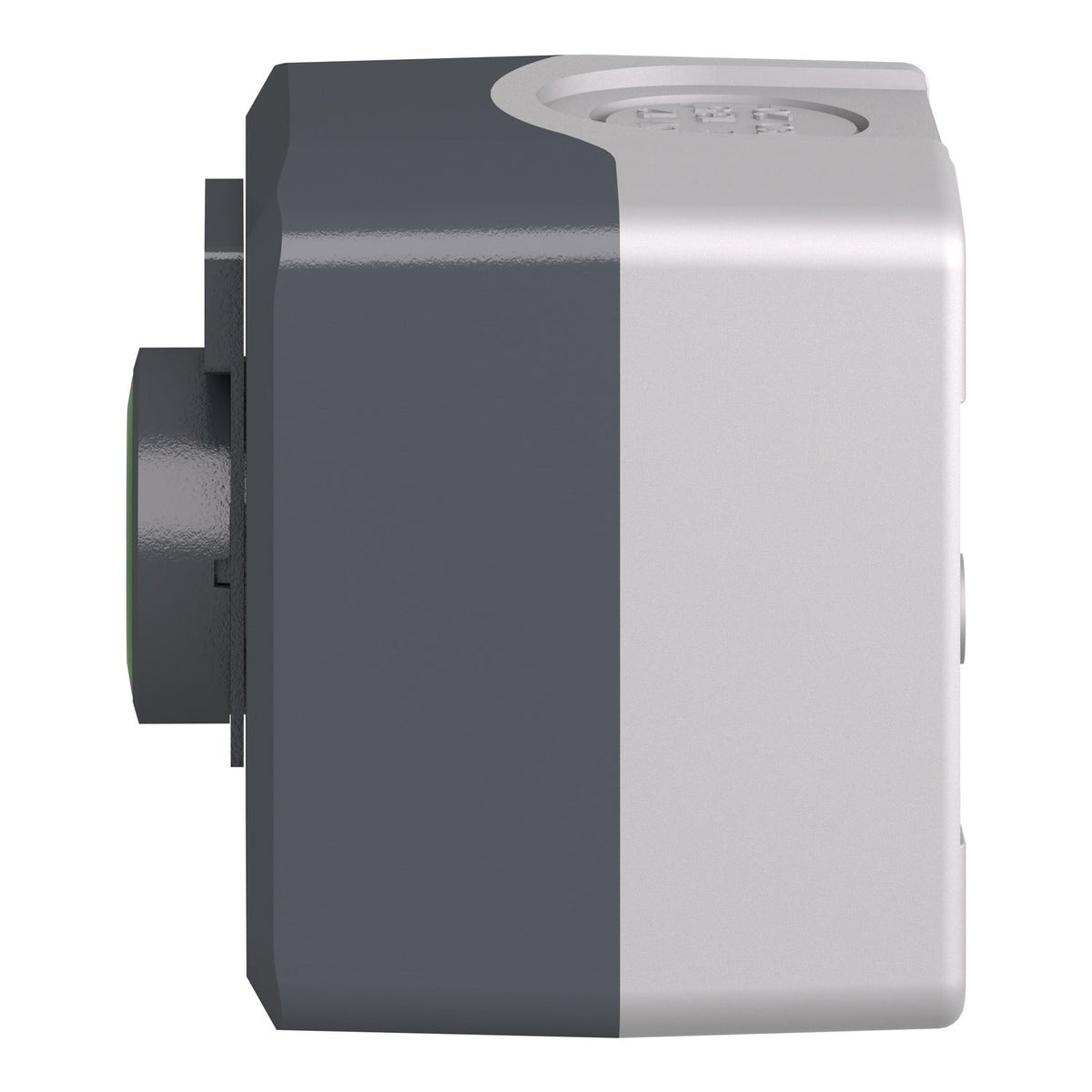

Schneider Electric XALD101H29 Harmony XALD 1 Green Pushbutton Spring Return 1NO Start Control Station

The Schneider Electric XALD101H29 is a Harmony XALD complete control station with 1 green flush push button, spring return, wired 1 NO for a start fun

Range of Product
Harmony XALD
Product or Component Type
Complete control station
Device short name
XALD
Product destination
For XB5 Ø 22 mm control and signalling units
Control station application
Start function
Colour of base of enclosure
Light grey RAL 7035)
EAN
3389110113464
Description

About the XALD

The Schneider Electric XALD101H29 is a Harmony XALD complete control station with 1 green flush push button, spring return, wired 1 NO for a start function. Its dark grey polycarbonate enclosure is rated IP66/IP67/IP69/IP69K and uses screw-clamp terminals rated 10 A.

Certifications & Standards

  • JIS C8201-5-1
  • IEC 60947-5-5
  • IEC 60947-1
  • CSA C22.2 No 14
  • UL 508
  • IEC 60947-5-4
  • IEC 60947-5-1
  • JIS C8201-1

Selection Notes

The XALD101H29 provides a single green 1 NO start pushbutton with legend-holder marking; choose the XALD112 instead when the station needs a red 1 NC stop pushbutton, or add it to an empty XALD0x station alongside other XB5 units for a custom layout.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 13

Range of Product Harmony XALD
Product or Component Type Complete control station
Device short name XALD
Product destination For XB5 Ø 22 mm control and signalling units
Control station application Start function
Colour of base of enclosure Light grey RAL 7035)
Colour of cover Dark grey RAL 7016)
Material Polycarbonate
Operator profile 1 flush push-button
Operators description Green ''START'' 1 NO
Control station composition 1 flush push-button, green 1 NO START
Marking location Marking on legend holder
Contact operation Slow-break

Complementary 34

AC control voltage 50 HZ 120…600 V
Cable entry 1 knock-out for cable entry 0.6 in (14 mm), 2 knock-outs for Pg 13 cable gland and ISO M20 0.5 in (12 mm)
AC control voltage 60 HZ 120…600 V
Net Weight 0.346 lb(US) (0.157 kg)
DC control voltage 125…600 V
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Number of command positions 1
Number of indicator lights 0
Number of push buttons 1
Positive opening Without
Operating travel 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel)
Operating force 3.8 N NO changing electrical state
Mechanical durability 10000000 cycles
Number of selector switches 0
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Number of key switches 0
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
Number of mushroom-shaped push-buttons 0
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Emergency Power Off (EPO) No
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Housing material Plastic
Housing Colour Grey
colour of cover Dark grey

Environment 10

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP67, IP69, IP69K
NEMA degree of protection NEMA 13, NEMA 4X
IK degree of protection IK03 conforming to IEC 62262
Standards JIS C8201-5-1, IEC 60947-5-5, IEC 60947-1, CSA C22.2 No 14, UL 508, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1
Vibration resistance 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 71 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XALD101H29
Type designation XALD
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110113464

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.157 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XALD101H29

No documents are on file for this part yet.
