Schneider Electric XALD03 Harmony XALD Empty Plastic Dark Grey Lid 3 Cut-outs 22 mm Control Station

% $-31.19

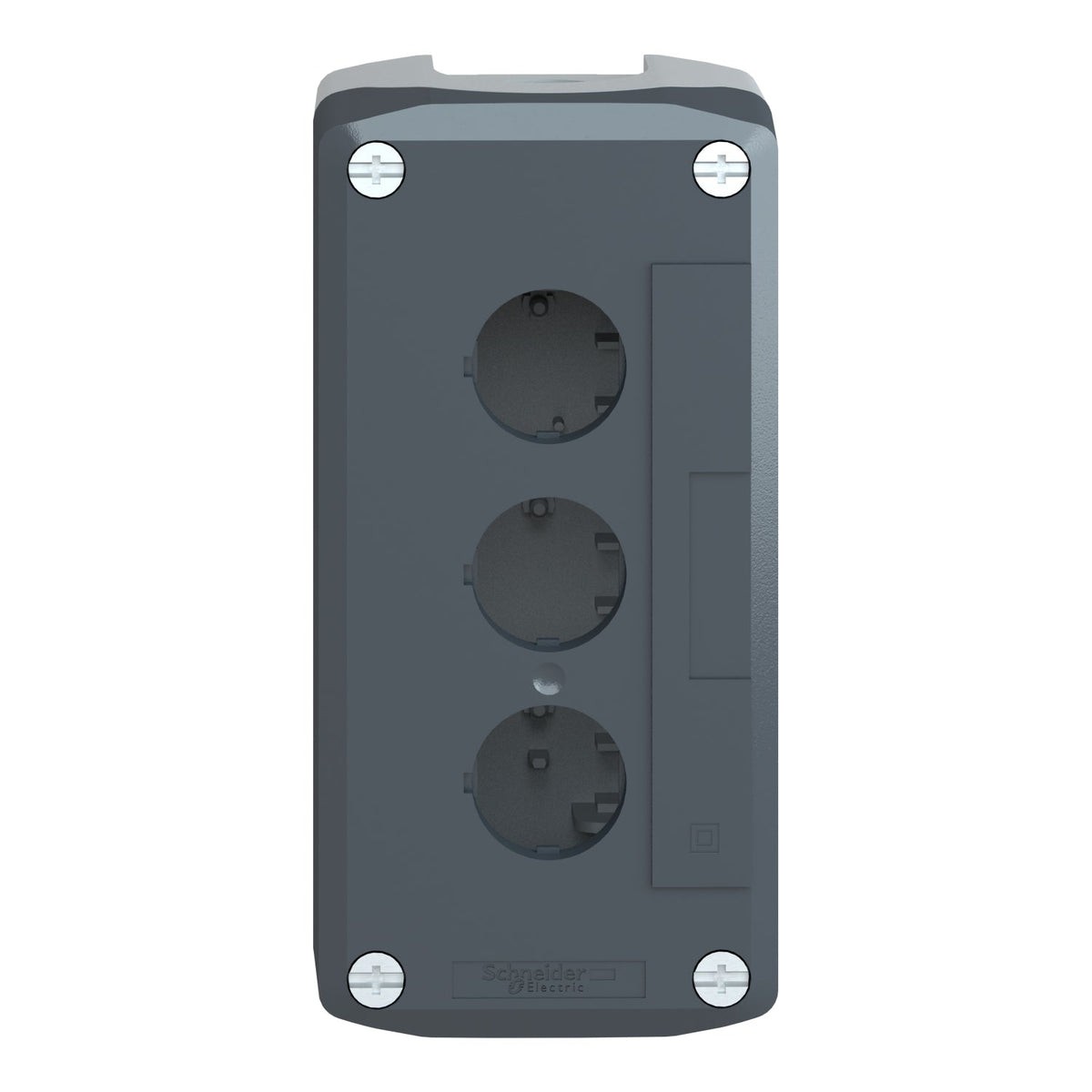

Schneider Electric XALD03 Harmony XALD empty control station 3 cut-outs
Schneider Electric XALD03 Harmony XALD empty control station 3 cut-outs

Schneider Electric XALD03 Harmony XALD Empty Plastic Dark Grey Lid 3 Cut-outs 22 mm Control Station

Brand: Schneider Electric
Reference No: XALD03
Catalog No: XALD03
Series: Harmony XALD
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$31.19

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALD03 is a Harmony XALD empty control station with 3 cut-outs for 22 mm push buttons or signalling units in a single row. Its polycarbonate enclosure has a light grey base and dark grey lid, rated IP66/IP67/IP69/IP69K, for machine builders to fit Harmony XB5 components.

Technical Specifications

Reference XALD03
Brand Schneider Electric
Range Harmony XALD
Device Short Name XALD
Product Type Empty control station
Product Destination XB5 22 mm control and signalling units
Number of Cut-outs 3
Colour of Base Light grey (RAL 7035)
Colour of Cover Dark grey (RAL 7016)
Material Polycarbonate
Cable Entry 2 knock-outs 14 mm, 2 knock-outs Pg13/M20 12 mm
IP Degree of Protection IP66, IP67, IP69, IP69K (IEC 60529)
NEMA Degree of Protection NEMA 13, NEMA 4X
IK Degree of Protection IK03 (IEC 62262)
Resistance to High-Pressure Washer 7,000,000 Pa at 55 degC, 0.1 m distance
Net Weight 0.238 kg
Ambient Air Temperature (Operation) -40 to 70 degC
Ambient Air Temperature (Storage) -40 to 70 degC
Overvoltage Category Class II (IEC 60536)
Country of Origin Czech Republic

Certifications & Standards

  • IEC 60947-1
  • CSA C22.2 No 14
  • UL 508
  • IEC 60947-5-5
  • IEC 60947-5-1
  • IEC 60947-5-4
  • JIS C8201-5-1
  • JIS C8201-1

Selection Notes

Pick the XALD03 when the enclosure needs three 22 mm positions in a single row; for fewer positions use the XALD01 or XALD02, or for 4-5 positions use the XALD04 or XALD05.

Technical Details

Short Description
The Schneider Electric XALD03 is a Harmony XALD empty control station with 3 cut-outs for 22 mm push buttons or signalling units in a single row. Its
Mounting Type
Panel/enclosure, customer-assembled
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XALD03
Delivery Date (Days)
30 days
Model Number
XALD
Tariff Code
853650
