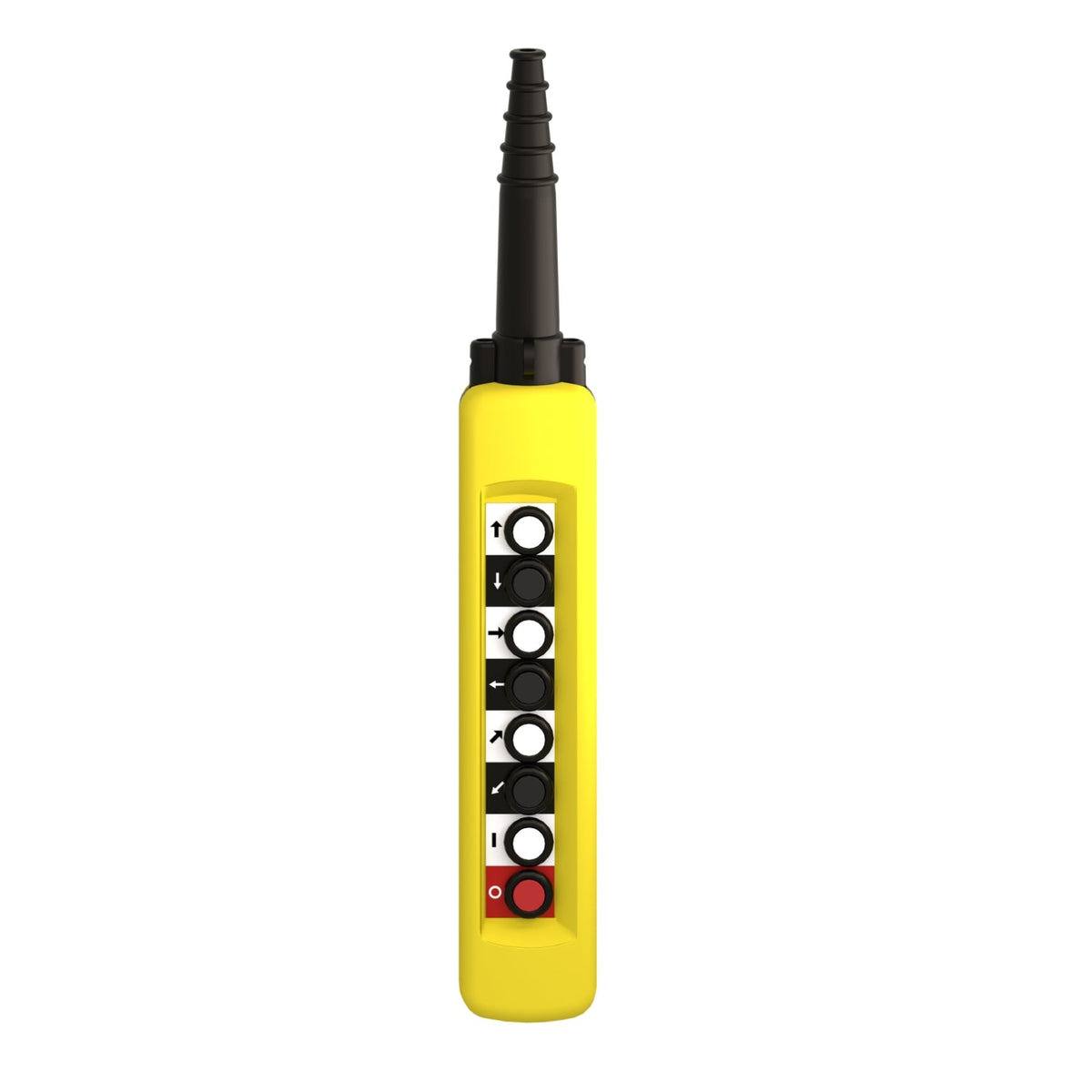

Harmony XACSchneider Electric XACA891 Harmony XAC Pendant Control Station 8 Pushbuttons 2-Speed Hoist Control Station
The Schneider Electric XACA891 is a Harmony XAC yellow pendant control station with 8 push buttons for raise, lower, left, right, forward, reverse and
Description
About the XACA
About the XACA
The Schneider Electric XACA891 is a Harmony XAC yellow pendant control station with 8 push buttons for raise, lower, left, right, forward, reverse and O/I commands on a 2-speed hoist motor. Its polypropylene enclosure is rated IP65 and operates from -25 to 70 degC.
Selection Notes
The XACA891 adds forward/reverse travel and an O/I (stop/start) pair to the raise/lower/left/right pushbuttons of the XACA691, covering the full 2-speed hoist motion set in one pendant.
Specification
Full specification
Main 3
| Range of product | Harmony XAC |
|---|---|
| Product or component type | Pendant control station |
| Device short name | XACA |
Complementary 26
| Control station type | Double insulated |
|---|---|
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| enclosure type | Complete ready for use |
| Control station application | Control of 2-speed hoist motor |
| Control station composition | 8 push-buttons |
| Mechanical interlocking | With mechanical interlocking between pairs |
| Control station colour | Yellow |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end, Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Mechanical durability | 1000000 cycles |
| Cable entry | Rubber sleeve with stepped entry 8…26 mm |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Contact operation | Slow-break |
| Maximum resistance across terminals | 25 MOhm |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 59 specifications ↓ Show less ↑29 more values in Identification, Logistics.
Identification 7
| Part number | XACA891 |
|---|---|
| Type designation | XACA |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 56.500 cm |
| Package 1 Weight | 1.205 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 15.104 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 68.416 kg |
| Shipping weight | 1.205 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XACA891
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the XACA
What is the HS code of XACA for customs?
The tariff (HS) code on file for XACA is 853650.
Where does XACA ship from, and how fast?
XACA ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
