Schneider Electric XACA691 Harmony XAC Pendant Control Station 6 Pushbuttons 2-Speed Hoist Control Station

% $-146.38

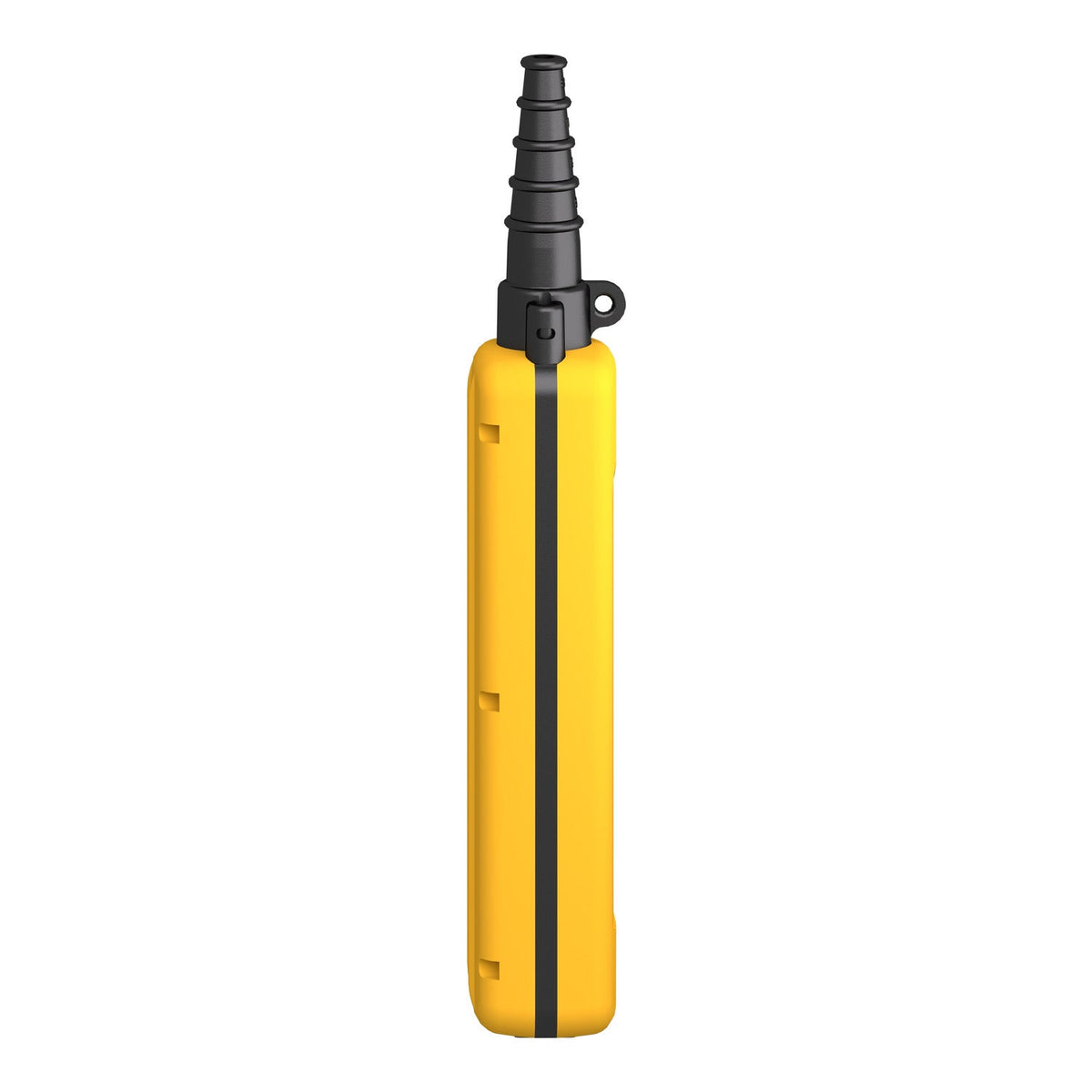

Schneider Electric XACA691 Harmony XAC yellow pendant control station 6 pushbuttons
Schneider Electric XACA691 Harmony XAC yellow pendant control station 6 pushbuttons

Schneider Electric XACA691 Harmony XAC Pendant Control Station 6 Pushbuttons 2-Speed Hoist Control Station

Brand: Schneider Electric
Reference No: XACA691
Catalog No: XACA691
Series: Harmony XAC
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$146.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XACA691 is a Harmony XAC yellow pendant control station with 6 push buttons for raise, lower, left, right, forward and reverse commands on a 2-speed hoist motor. Its polypropylene enclosure is rated IP65 and operates from -25 to 70 degC.

Technical Specifications

Reference XACA691
Brand Schneider Electric
Range Harmony XAC
Device Short Name XACA
Product Type Pendant control station
Control Station Type Double insulated
Enclosure Material Polypropylene
Control Station Application Control of 2-speed hoist motor
Control Station Colour Yellow
Mechanical Interlocking With mechanical interlocking between pairs
Connections Screw clamp terminals, up to 2.5 mm2 (without cable end) / 1.5 mm2 (with cable end)
Conventional Enclosed Thermal Current (Ithe) 10 A
Rated Impulse Withstand Voltage (Uimp) 6 kV (IEC 60947-1)
Contact Operation Slow-break
Short-Circuit Protection 10 A gG cartridge fuse
Overvoltage Category Class II (IEC 61140)
IP Degree of Protection IP65 (IEC 60529)
IK Degree of Protection IK08 (IEC 62262)
Cable Entry Rubber sleeve, stepped entry 8-26 mm
Ambient Air Temperature (Operation) -25 to 70 degC
Ambient Air Temperature (Storage) -40 to 70 degC
Vibration Resistance 15 gn, 10-500 Hz (IEC 60068-2-6)

Selection Notes

The XACA691's 6 pushbuttons give 2-speed control over raise/lower and left/right travel without forward/reverse; choose the XACA891 instead when the hoist also needs independent forward/reverse travel and an O/I (stop/start) pair in the same pendant.

Technical Details

Short Description
The Schneider Electric XACA691 is a Harmony XAC yellow pendant control station with 6 push buttons for raise, lower, left, right, forward and reverse
Mounting Type
Pendant, hand-held
Protection Type
IP65
Catalog No
XACA691
Delivery Date (Days)
30 days
Model Number
XACA
Tariff Code
853650
