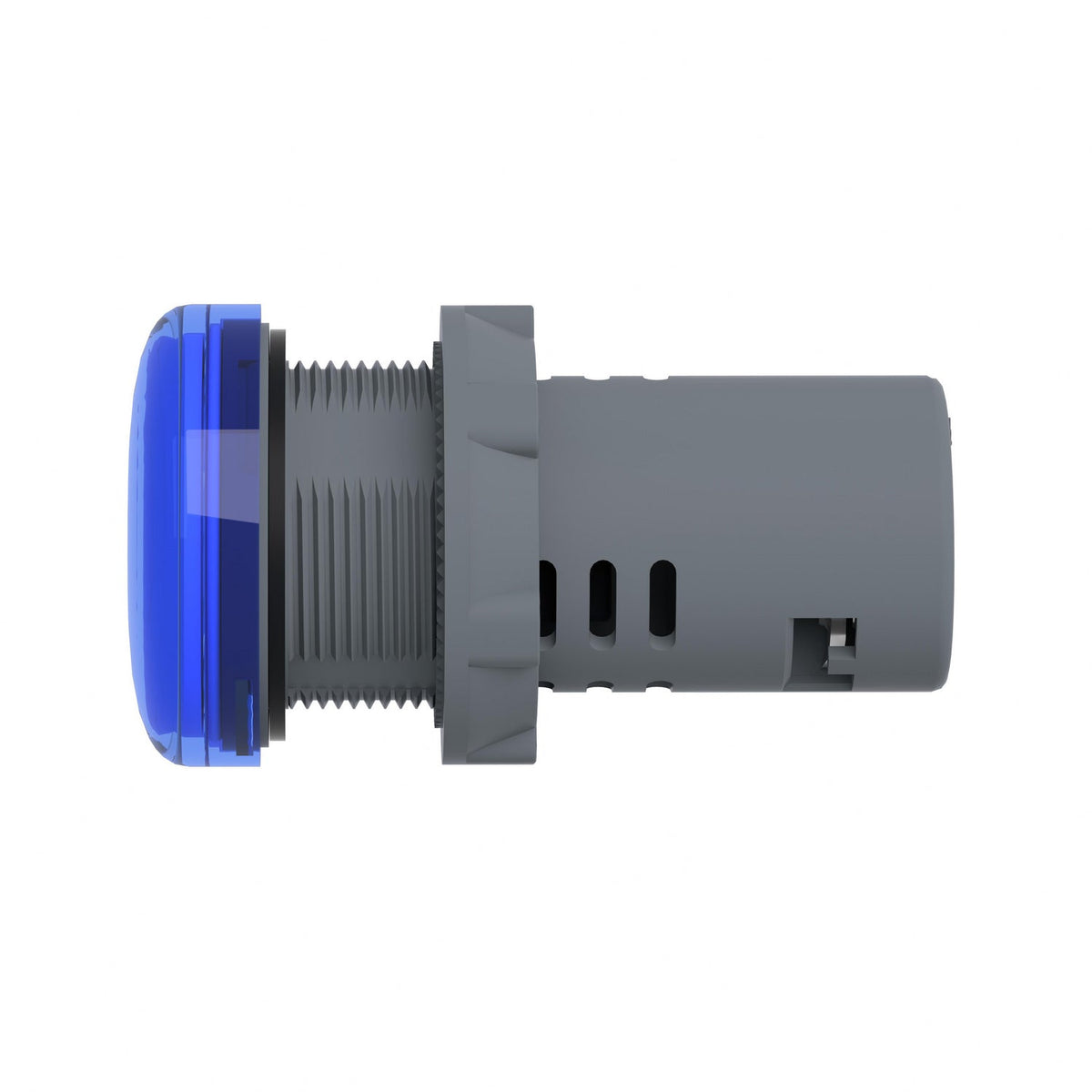

Schneider Electric XA2EVM6LC Easy Harmony XA2 Monolithic Blue 22 mm Integral LED 220-230 V AC Pilot Light

Harmony XA2 round pilot light, blue, integral LED, 220-230 V AC, IP65, 22 mm panel mount.

Rated operational voltage
220–230 V AC
Description

About the XA2

The Schneider Electric XA2EVM6LC is a Harmony XA2 monolithic pilot light with a round blue lens and an integral COB LED rated 220-230 V AC. It mounts into a 22.5 mm panel cut-out with screw-clamp terminals and carries an IP65 rating, giving clear status feedback at a 40,000-hour rated service life.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • IEC 60947-5-1
  • GB 14048.1

Selection Notes

The XA2EVM6LC uses the same EVM body as the amber, green, red and white variants in the range - the blue lens is typically reserved for a status code distinct from stop/run/caution, so confirm the panel's colour convention before specifying. As with its siblings, lens, body and LED are one sealed assembly, so a colour change means swapping the complete unit. The 220-230 V AC rating takes it straight off mains-derived control circuits without a step-down supply.

Applications

Used as a panel-mounted status indicator on machine control panels, switchgear enclosures and automation cabinets where an operator needs a clear visual read of a single machine state at a glance.

Specification

Full specification

66 values · Last verified 30 Oct 2026

Main 9

Range of product Harmony XA2
Product or component type Monolithic pilot light
Device short name XA2
Mounting diameter 22.5 mm
Shape of signaling unit head Round
Cap/operator or lens colour Blue
Light source COB clustered LED
Bulb base No bulb
[Us] rated supply voltage 220...230 V AC 50/60 Hz

Complementary 18

Terminals description ISO n°1 (X1-X2)PL
Device mounting Fixing hole - diameter: 22.5 mm +/- 0.2 conforming to IEC 60947-5-1
Fixing center >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
Fixing mode Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
Marking CE, CCC
[Us] rated supply voltage 220...230 V
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1
Shape of screw head Cross compatible with Philips No 2 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage 400 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Signalling type Steady
Supply voltage limits 0.8…1.2 V AC
Current consumption <= 20 mA
Service life 40000 h at rated voltage and 25 °C
Height 29 mm
Width 29 mm
Depth 53 mm
Net weight 0.02 kg

Environment 9

Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…70 °C
Overvoltage category Class I conforming to IEC 61140
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK05
Standards IEC 60947-1, GB 14048.1, IEC 60947-5-1, GB 14048.5, IEC 60529, IEC 50102
Product certifications CE, CCC
Vibration resistance 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Show all 66 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XA2EVM6LC
Type designation XA2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 2.9 cm
Package 1 Length 2.9 cm
Package 1 Weight 25 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 5.8 cm
Package 2 Width 6.4 cm
Package 2 Length 15.8 cm
Package 2 Weight 300 g
Unit Type of Package 3 S02
Number of Units in Package 3 160
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 5.8 kg
Shipping weight 0.02 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XA2EVM6LC

No documents are on file for this part yet.
