Schneider Electric XA2EVM5LC Easy Harmony XA2 Monolithic Amber 22 mm Integral LED 220-230 V AC Pilot Light

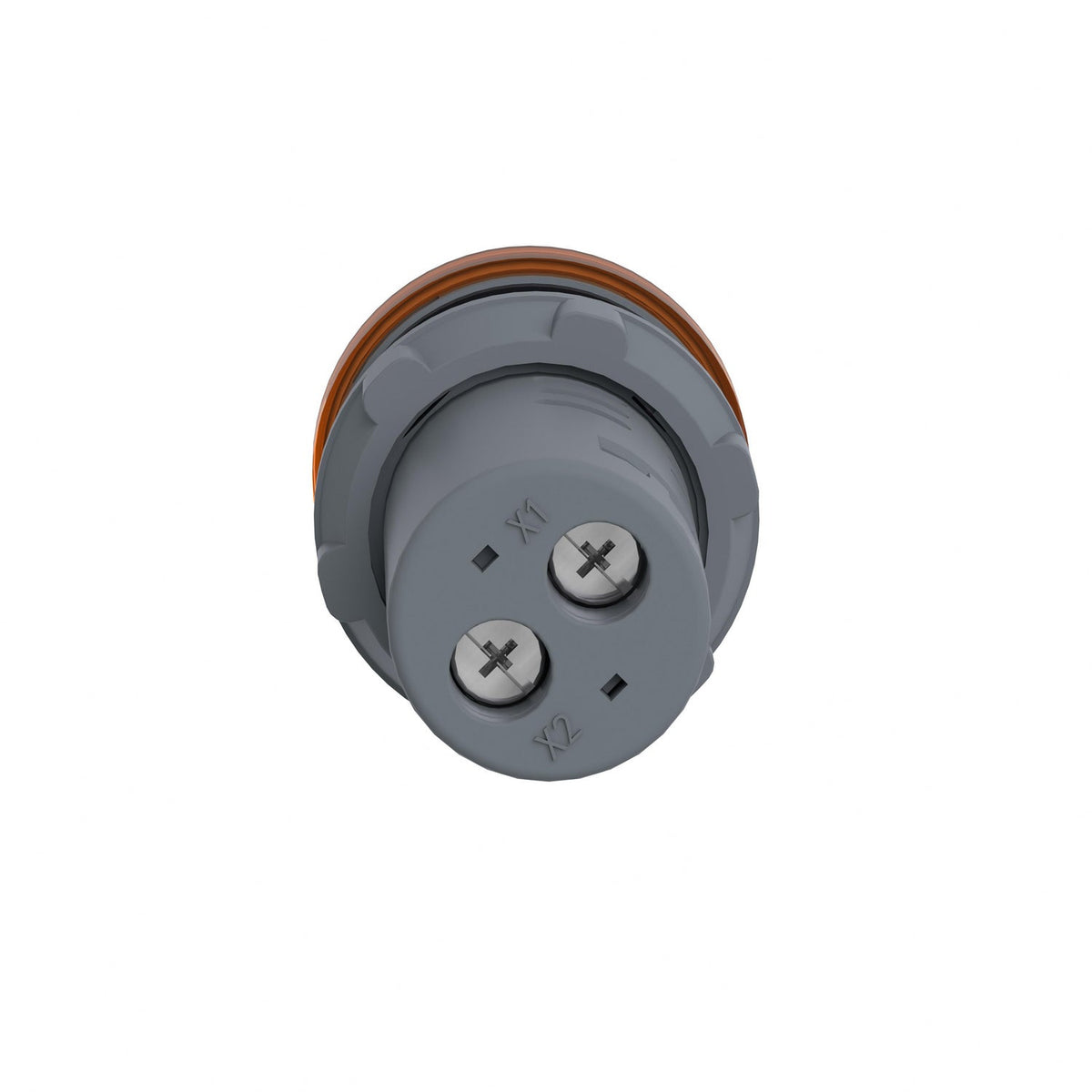

The Schneider Electric XA2EVM5LC is a Harmony XA2 monolithic pilot light with a round amber lens and an integral COB LED rated 220-230 V AC. It mounts into a 22.5 mm panel cut-out with screw-clamp terminals and carries an IP65 rating, giving clear status feedback at a 40,000-hour rated service life.

Technical Specifications

Certifications & Standards

• CE
• CCC
• EAC
• IEC 60947-5-1
• GB 14048.1

Selection Notes

The XA2EVM5LC shares its EVM body with blue, green, red and white lens variants in the same range - select by colour to match the panel status code rather than mixing a separate lamp into a neutral housing, since the lens, body and LED form one sealed assembly. Its 220-230 V AC rating wires directly off mains-derived control circuits; the 24 V AC/DC version in the same series is the choice where the panel runs on low-voltage control supply instead.

Applications

Used as a panel-mounted status indicator on machine control panels, switchgear enclosures and automation cabinets where an operator needs a clear visual read of a single machine state at a glance.
