Part number
XA2EVM34LC
Model no
XA2
$5.57 On request Dispatch — · From TürkiyeGet a Quote
Harmony XA2

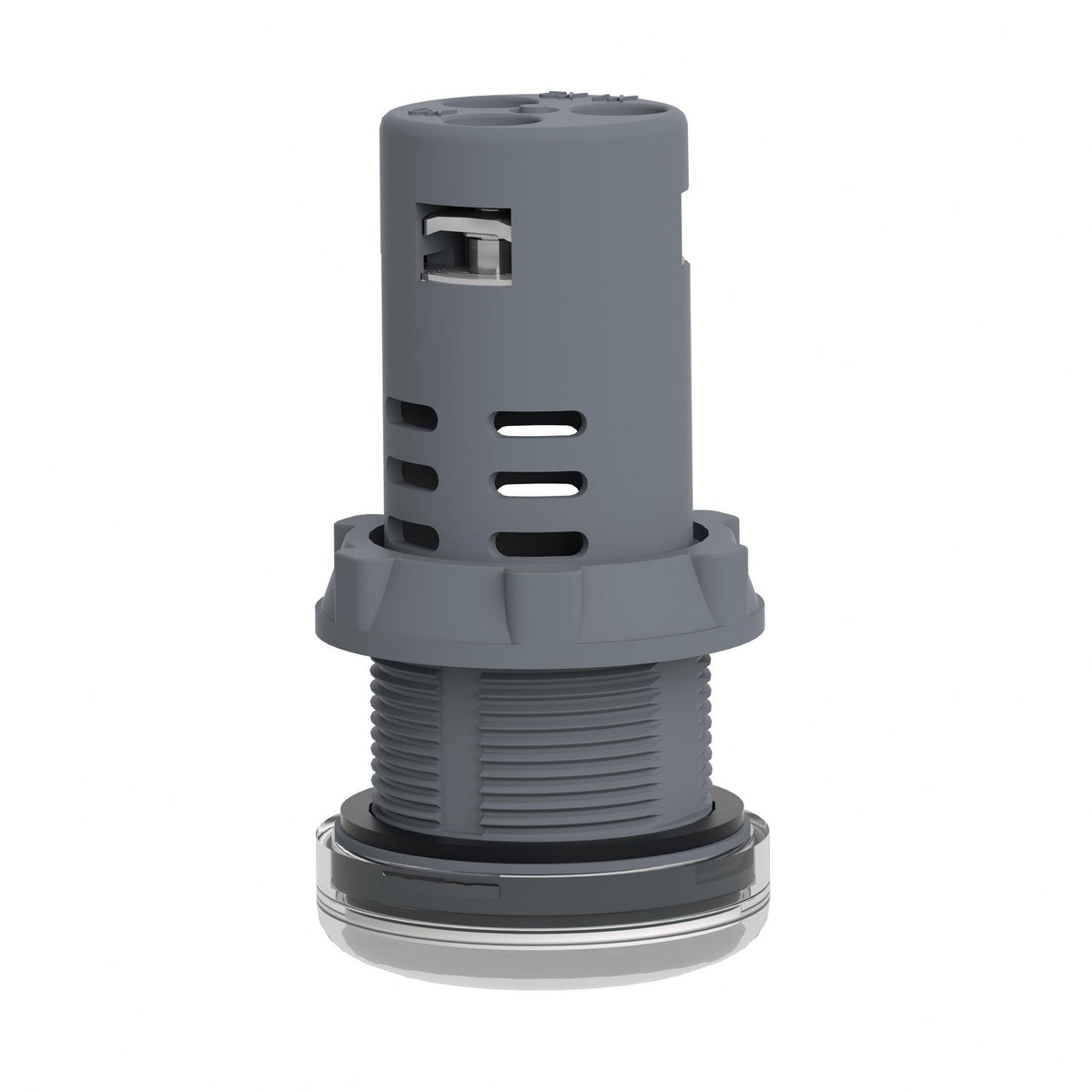

Schneider Electric XA2EVM34LC Easy Harmony XA2 Monolithic Green Red 22 mm Integral LED 220 V AC Pilot Light

Easy Harmony XA2 pilot light, bi-colour green/red, integral LED, 220V AC, IP65.

Rated operational voltage
220–230 V AC
Description

About the XA2

The Schneider Electric XA2EVM34LC is an Easy Harmony XA2 monolithic pilot light with a round, bi-colour green and red lens and a COB clustered integral LED, rated for 220...230 V AC supply. It gives a steady, anti-interference signal through a single-piece body with screw-clamp terminals, mounting in a 22.5 mm panel cutout sealed to IP65.

Certifications & Standards

  • CE
  • CCC
  • GB 14048.1
  • GB 14048.5
  • IEC 60947-1
  • IEC 60947-5-1

Selection Notes

The bi-colour green/red lens lets one pilot light signal two opposite states (for example run vs fault) from a single 22.5 mm cutout instead of mounting two separate monolithic lights, saving panel space on compact control stations. The 220...230 V AC supply runs off mains-derived control wiring instead of a dedicated 24 V rail, the main reason to pick this over the 24 V XA2EVB34LC. Choose a single-colour monolithic light (XA2EVM3LC green or XA2EVM4LC red) instead where only one status needs indicating.

Specification

Full specification

68 values · Last verified 30 Oct 2026

Main 10

Range of product Harmony XA2
Product or component type Monolithic pilot light
Device short name XA2
Mounting diameter 22.5 mm
Shape of signaling unit head Round
Cap/operator or lens colour Green + red
Light source COB clustered LED
Bulb base No bulb
[Us] rated supply voltage 220...230 V AC 50/60 Hz
Device presentation Complete product

Complementary 19

Terminals description ISO n°1 (X0-X1-X2)PL
Device mounting Fixing hole - diameter: 22.5 mm +/- 0.2 conforming to IEC 60947-5-1
Fixing center >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
Fixing mode Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
Marking CCC, CE
[Us] rated supply voltage 220...230 V
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1
Tightening torque 0.8…1 N.m conforming to IEC 60947-1
Shape of screw head Cross compatible with Philips No 2 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage 400 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Signalling type Steady
Supply voltage limits 0.8…1.2 V AC
Current consumption <= 20 mA
Service life 40000 h at rated voltage and 25 °C
Height 29 mm
Width 29 mm
Depth 56 mm
Net weight 0.02 kg

Environment 9

Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…70 °C
Overvoltage category Class I conforming to IEC 61140
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK05
Standards GB 14048.1, GB 14048.5, IEC 60947-1, IEC 60947-5-1, IEC 60529, IEC 50102
Product certifications CE, CCC
Vibration resistance 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Show all 68 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XA2EVM34LC
Type designation XA2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 3.000 cm
Package 1 Length 5.500 cm
Package 1 Weight 24.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 6.500 cm
Package 2 Width 6.500 cm
Package 2 Length 16.000 cm
Package 2 Weight 150.000 g
Unit Type of Package 3 S02
Number of Units in Package 3 80
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.644 kg
Shipping weight 0.02 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XA2EVM34LC

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • GB 14048.1
  • GB 14048.5
  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60529
  • IEC 50102
Quick answers

Questions about the XA2

Which supply voltage is XA2 rated for?

The rated operational voltage of XA2 is 220–230 V AC.

What is the HS code of XA2 for customs?

The tariff (HS) code on file for XA2 is 853661.

Where does XA2 ship from, and how fast?

XA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
