Schneider Electric XA2EVM34GPC Easy Harmony XA2 Ground Indicator Light Green Red 22 mm 220 V AC Pilot Light

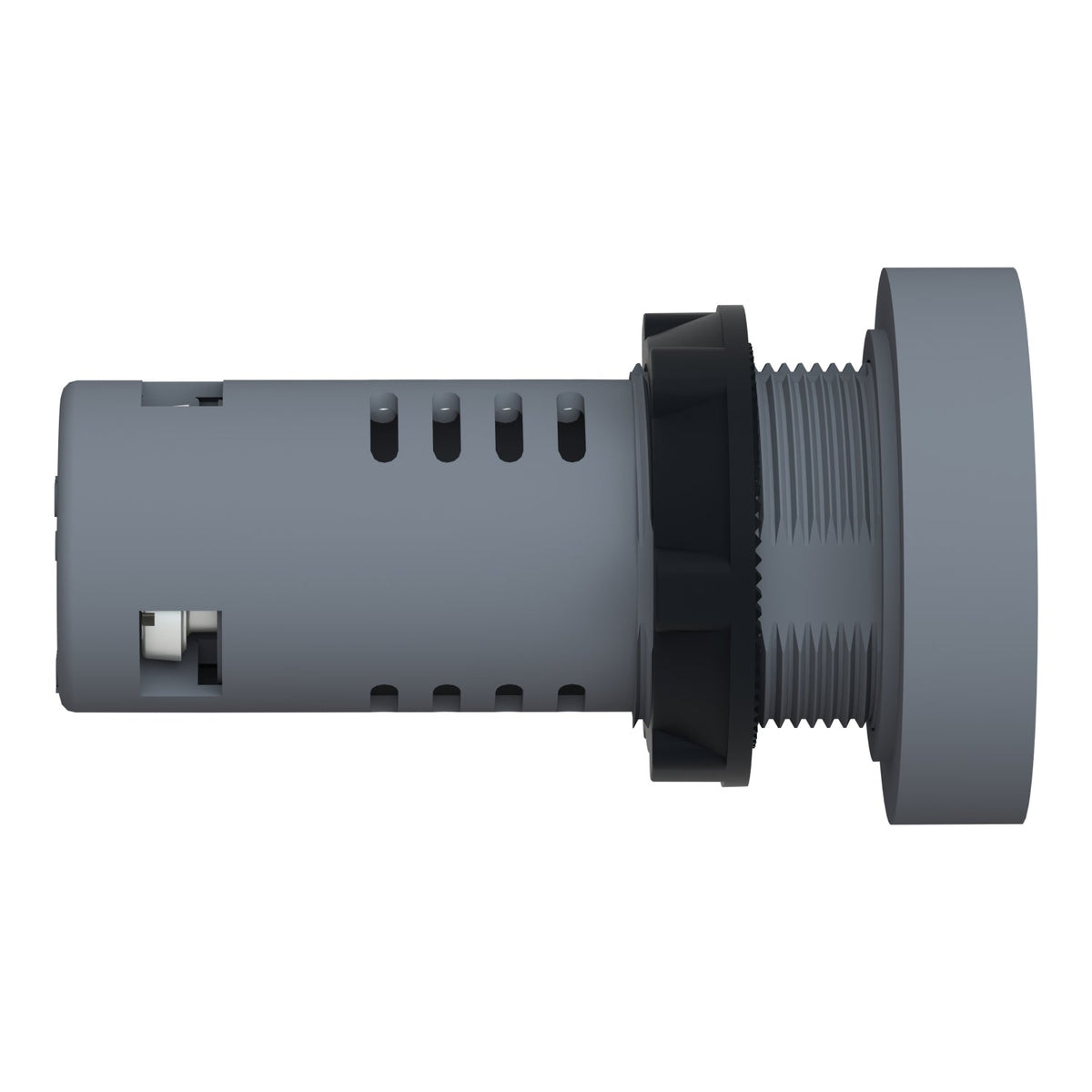

The Schneider Electric XA2EVM34GPC is an Easy Harmony XA2 indicator light marked for ground (earth) status, combining a green and red lens with a COB clustered integral LED, rated for 220...230 V AC supply. It gives a steady signal through a single-piece body with screw-clamp terminals, mounting in a 22.5 mm panel cutout sealed to IP54.

Technical Specifications

Certifications & Standards

• CE
• CCC
• GB 14048.1
• GB 14048.5
• IEC 60947-1
• IEC 60947-5-1

Selection Notes

The ground marking and larger 33.5 mm square body give this indicator a wider lens than the round general-purpose pilot lights, improving legibility where it labels an earthing-switch position on a switchgear door. IP54 matches typical indoor switchgear panel sealing without the added cost of full washdown protection. Choose the circuit breaker indicator XA2EVM34BPC or isolation-switch indicator XA2EVM34SPC in the same body style for other breaker-panel status functions.
