Schneider Electric XA2EVB5LC Easy Harmony XA2 Monolithic Amber 22 mm Integral LED 24 V AC/DC Pilot Light

% $-2.43
Schneider Electric XA2EVB5LC Easy Harmony XA2 Pilot Light Amber 22mm 24V Integral LED
Schneider Electric XA2EVB5LC Easy Harmony XA2 Pilot Light Amber 22mm 24V Integral LED

Schneider Electric XA2EVB5LC Easy Harmony XA2 Monolithic Amber 22 mm Integral LED 24 V AC/DC Pilot Light

Brand: Schneider Electric
Reference No: XA2EVB5LC
Catalog No: XA2EVB5LC
Series: Harmony XA2
Tariff Code (HS): 853661
Rated Voltage: 24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

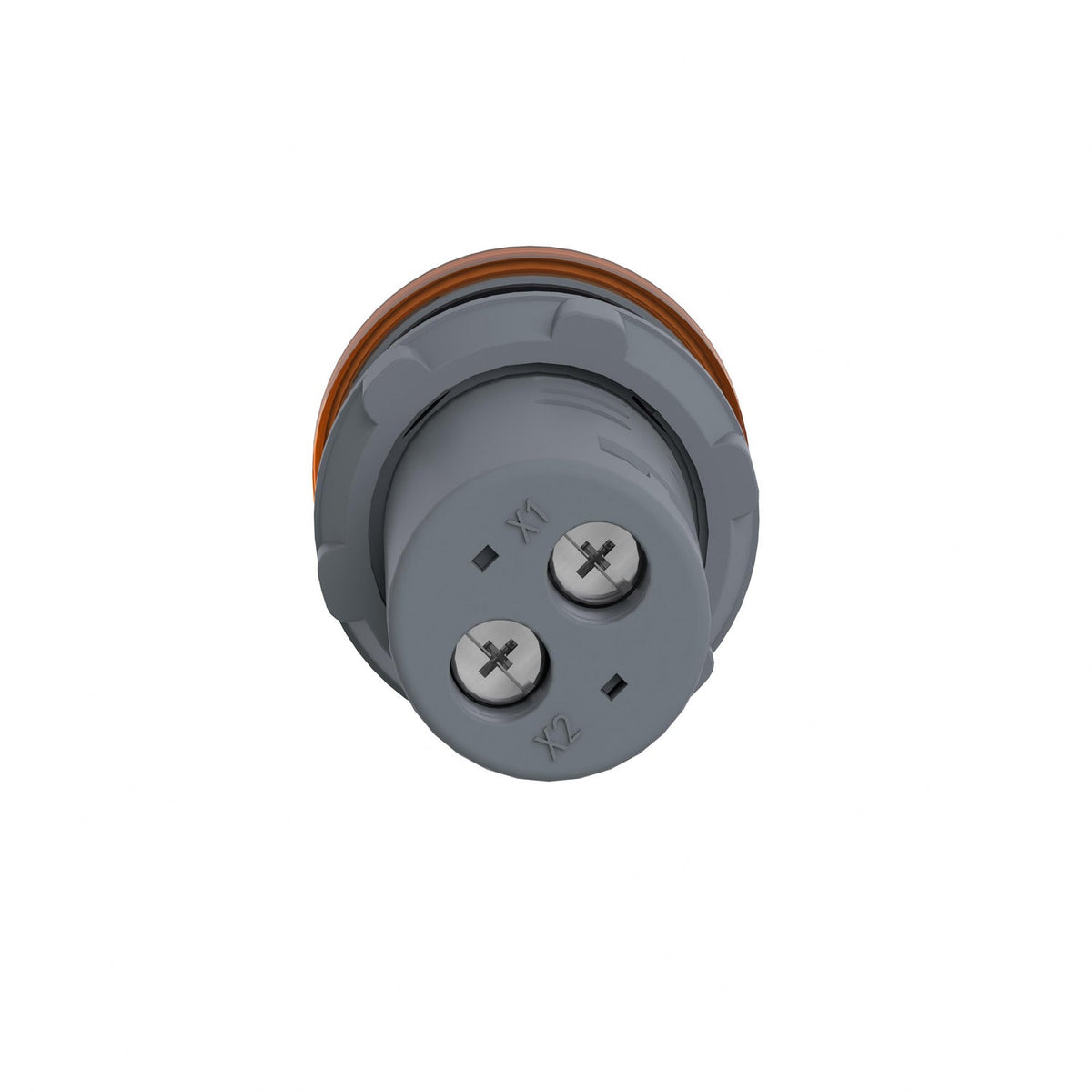

The Schneider Electric XA2EVB5LC is an Easy Harmony XA2 monolithic pilot light with a round amber lens and a COB clustered integral LED, rated for 24 V AC/DC supply. It gives a steady signal through a single-piece body with screw-clamp terminals, mounting in a 22.5 mm panel cutout sealed to IP65.

Technical Specifications

Reference XA2EVB5LC
Brand Schneider Electric
Range Easy Harmony XA2
Product Type Monolithic pilot light
Mounting Diameter 22.5 mm
Shape of Signalling Unit Head Round
Cap / Lens Colour Amber
Light Source COB clustered LED
Bulb Base No bulb
Signalling Type Steady
[Us] Rated Supply Voltage 24 V AC/DC, 50/60 Hz
Supply Voltage Limits 0.8...1.2 V AC/DC (of rated)
Current Consumption <=20 mA
Service Life 40000 h at rated voltage, 25 degrees C
Connections - Terminals Screw clamp, <=2 x 1.5 mm2 with cable end; 1 x 0.5...2.5 mm2 without cable end
[Ui] Rated Insulation Voltage 400 V (pollution degree 3)
[Uimp] Rated Impulse Withstand Voltage 6 kV
Dimensions (W x H x D) 29 x 29 x 53 mm
Net Weight 0.02 kg
IP Degree of Protection IP65
IK Degree of Protection IK05

Certifications & Standards

  • CE
  • CCC
  • IEC 60947-5-1
  • IEC 60947-1
  • GB 14048.5
  • GB 14048.1

Selection Notes

Amber follows the IEC 60204-1 convention for an abnormal-condition or caution status signal, distinguishing it from the run-status green XA2EVB3LC and fault-status red XA2EVB4LC in the same monolithic body. The 24 V AC/DC supply shares the same low-voltage rail typically used for PLC I/O, the main reason to pick this over 220 V alternatives in the EVM series. Choose the blue lens instead where the panel needs a mandatory-action signal rather than a caution indicator.

Technical Details

Short Description
Easy Harmony XA2 pilot light, amber, integral LED, 24V AC/DC, screw clamp, IP65.
Rated Voltage (VAC)
24 V AC/DC
Mounting Type
22.5 mm panel cutout
Protection Type
IP65, IK05
Catalog No
XA2EVB5LC
Delivery Date (Days)
30 days
Model Number
Easy Harmony XA2
Tariff Code
853661
