- Part number
- XA2EVB4LC
- Model no
- XA2
Description
About the XA2
About the XA2

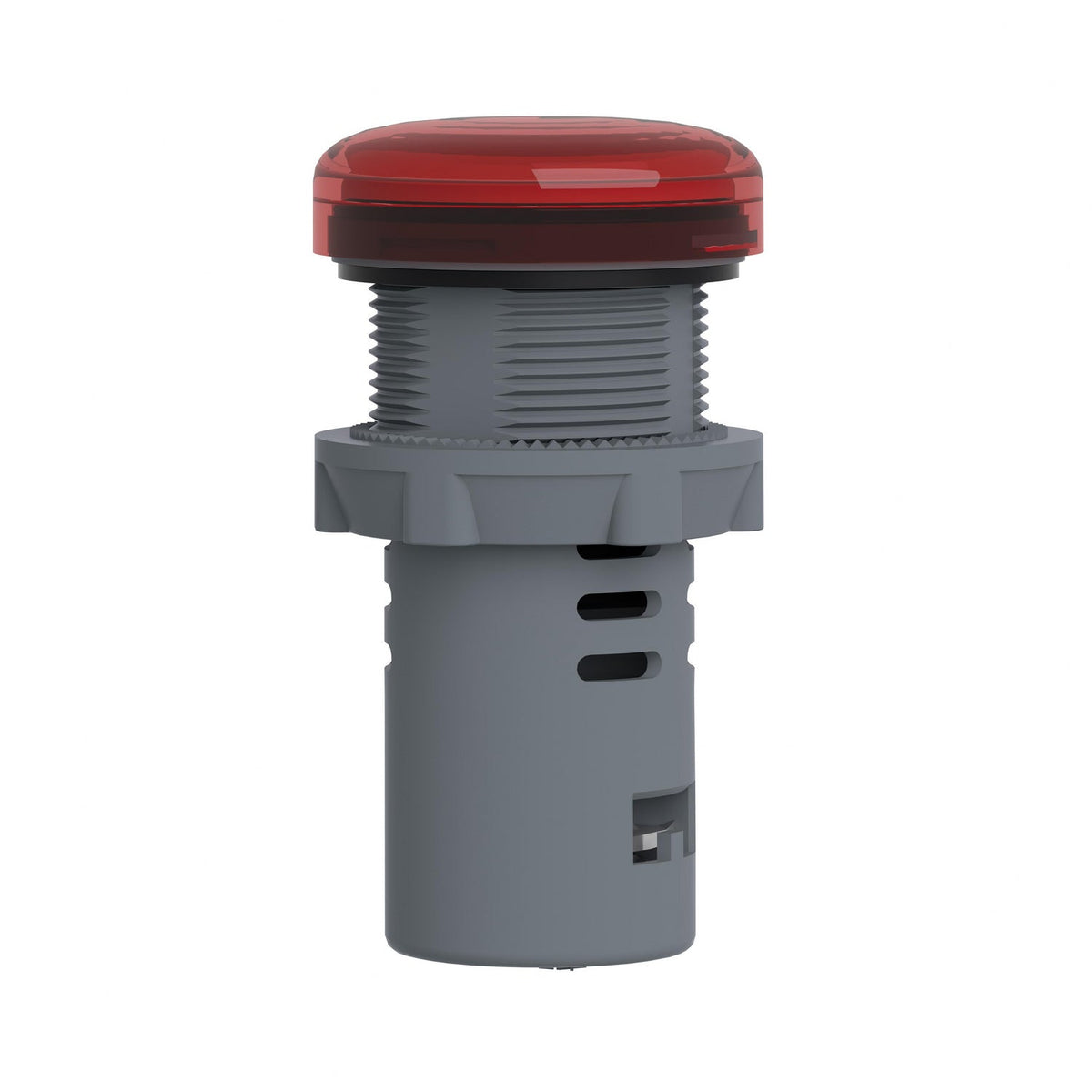

The Schneider Electric XA2EVB4LC is an Easy Harmony XA2 monolithic pilot light with a round red lens and a COB clustered integral LED, rated for 24 V AC/DC supply. It gives a steady signal through a single-piece body with screw-clamp terminals, mounting in a 22.5 mm panel cutout sealed to IP65.
Certifications & Standards
- CE
- CCC
- IEC 60947-5-1
- GB 14048.5
- GB 14048.1
- IEC 60947-1
Selection Notes
Red follows the IEC 60204-1 convention for a fault or stop-condition status signal, distinguishing it from the run-status green XA2EVB3LC in the same monolithic body. The 24 V AC/DC supply shares the same low-voltage rail typically used for PLC I/O, the main reason to pick this over the 220 V XA2EVM4LC. For a dual-status indication in one cutout, choose the bi-colour XA2EVB34LC (green/red) instead.
Specification
Full specification
Main 9
| Range of product | Harmony XA2 |
|---|---|
| Product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Mounting diameter | 22.5 mm |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Red |
| Light source | COB clustered LED |
| Bulb base | No bulb |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
Complementary 19
| Terminals description ISO n°1 | (X1-X2)PL |
|---|---|
| Device mounting | Fixing hole - diameter: 22.5 mm +/- 0.2 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Marking | CE, CCC |
| [Us] rated supply voltage | 24 V |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Tightening torque | 0.8…1 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips No 2 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Supply voltage limits | 0.8…1.2 V AC/DC |
| Current consumption | <= 20 mA |
| Service life | 40000 h at rated voltage and 25 °C |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| Net weight | 0.02 kg |
Environment 9
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class I conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK05 |
| Standards | IEC 60947-5-1, GB 14048.5, GB 14048.1, IEC 60947-1, IEC 60529, IEC 50102 |
| Product certifications | CE, CCC |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Show all 67 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XA2EVB4LC |
|---|---|
| Type designation | XA2 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 2.9 cm |
| Package 1 Length | 2.9 cm |
| Package 1 Weight | 25 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.8 cm |
| Package 2 Width | 6.4 cm |
| Package 2 Length | 15.8 cm |
| Package 2 Weight | 300 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 5.8 kg |
| Shipping weight | 0.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XA2EVB4LC
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CCC
- IEC 60947-5-1
- GB 14048.5
- GB 14048.1
- IEC 60947-1
- IEC 60529
- IEC 50102
Quick answers
Questions about the XA2
Which supply voltage is XA2 rated for?
The rated operational voltage of XA2 is 24–DC V DC.
What is the HS code of XA2 for customs?
The tariff (HS) code on file for XA2 is 853661.
Where does XA2 ship from, and how fast?
XA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
