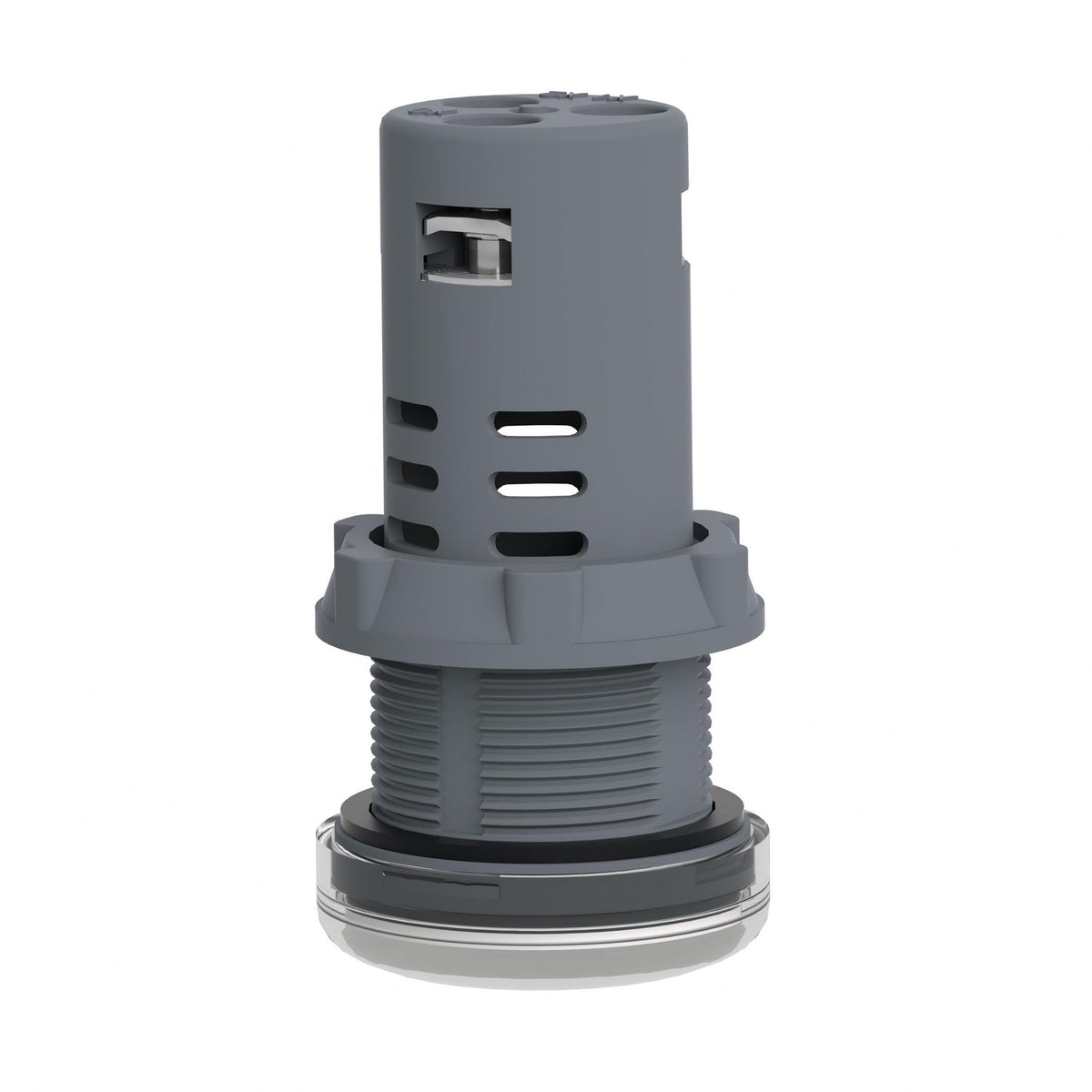

Schneider Electric XA2EVB34LC Easy Harmony XA2 Monolithic Green Red 22 mm Integral LED 24 V AC/DC Pilot Light

The Schneider Electric XA2EVB34LC is an Easy Harmony XA2 monolithic pilot light with a round, bi-colour green and red lens and a COB clustered integral LED, rated for 24 V AC/DC supply. It gives a steady signal through a single-piece body with screw-clamp terminals, mounting in a 22.5 mm panel cutout sealed to IP65.

Technical Specifications

Certifications & Standards

• CE
• CCC
• GB 14048.1
• GB 14048.5
• IEC 60947-1
• IEC 60947-5-1

Selection Notes

The bi-colour green/red lens lets one pilot light signal two opposite states (for example run vs fault) from a single 22.5 mm cutout instead of mounting two separate monolithic lights, which saves panel space on compact control stations. The 24 V AC/DC supply shares the same low-voltage rail typically used for PLC I/O, the main reason to pick this over the 220 V XA2EVM34LC. Choose a single-colour monolithic light (XA2EVB3LC green or XA2EVB4LC red) instead where only one status needs indicating.
