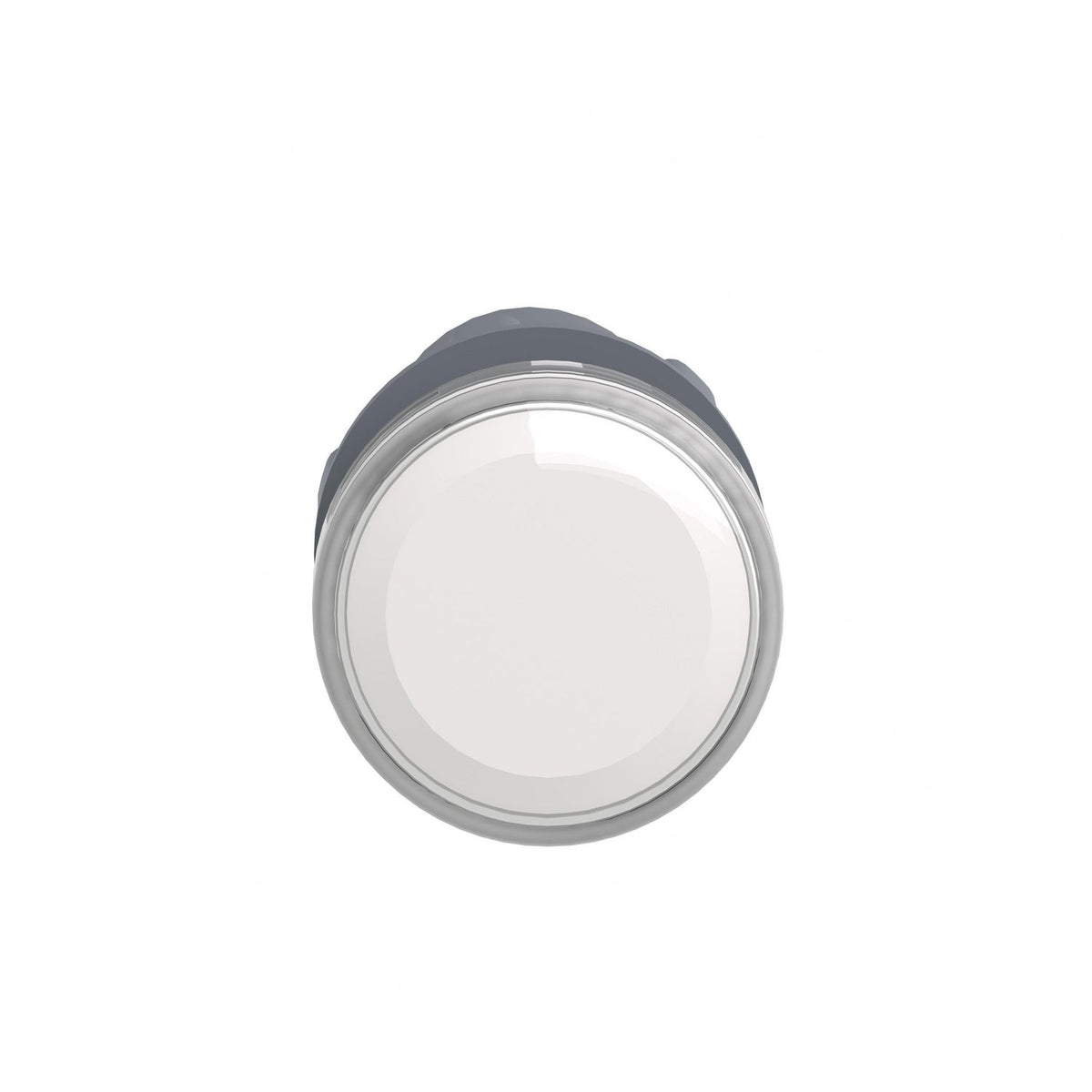

Schneider Electric XA2EVB1LC Easy Harmony XA2 Monolithic White 22 mm Integral LED 24 V AC/DC Pilot Light

The Schneider Electric XA2EVB1LC is an Easy Harmony XA2 monolithic pilot light with a round white lens and a COB clustered integral LED, rated for 24 V AC/DC supply. It gives a steady signal through a single-piece body with screw-clamp terminals, mounting in a 22.5 mm panel cutout sealed to IP65.

Technical Specifications

Certifications & Standards

• CE
• CCC
• IEC 60947-5-1
• GB 14048.1
• IEC 60947-1
• GB 14048.5

Selection Notes

The 24 V AC/DC supply lets this pilot light run directly off the same low-voltage rail as PLC I/O or control-transformer circuits, without a dedicated 220 V feed - the main reason to pick this over the 220 V XA2EVM1LC. White gives a general-purpose status signal where no specific IEC 60204-1 colour meaning (run, stop, fault) applies, and the COB LED's 40000 h service life at rated voltage avoids the periodic bulb changes of a filament lamp. For a coded status colour instead, choose the green XA2EVB3LC, red XA2EVB4LC, amber XA2EVB5LC, or blue XA2EVB6LC monolithic lights in the same 24 V family.
