Schneider Electric VZN17 TeSys VARIO Shaft Extension for VN12/VN20/V02-V2 Contactor Accessory

% $-11.26

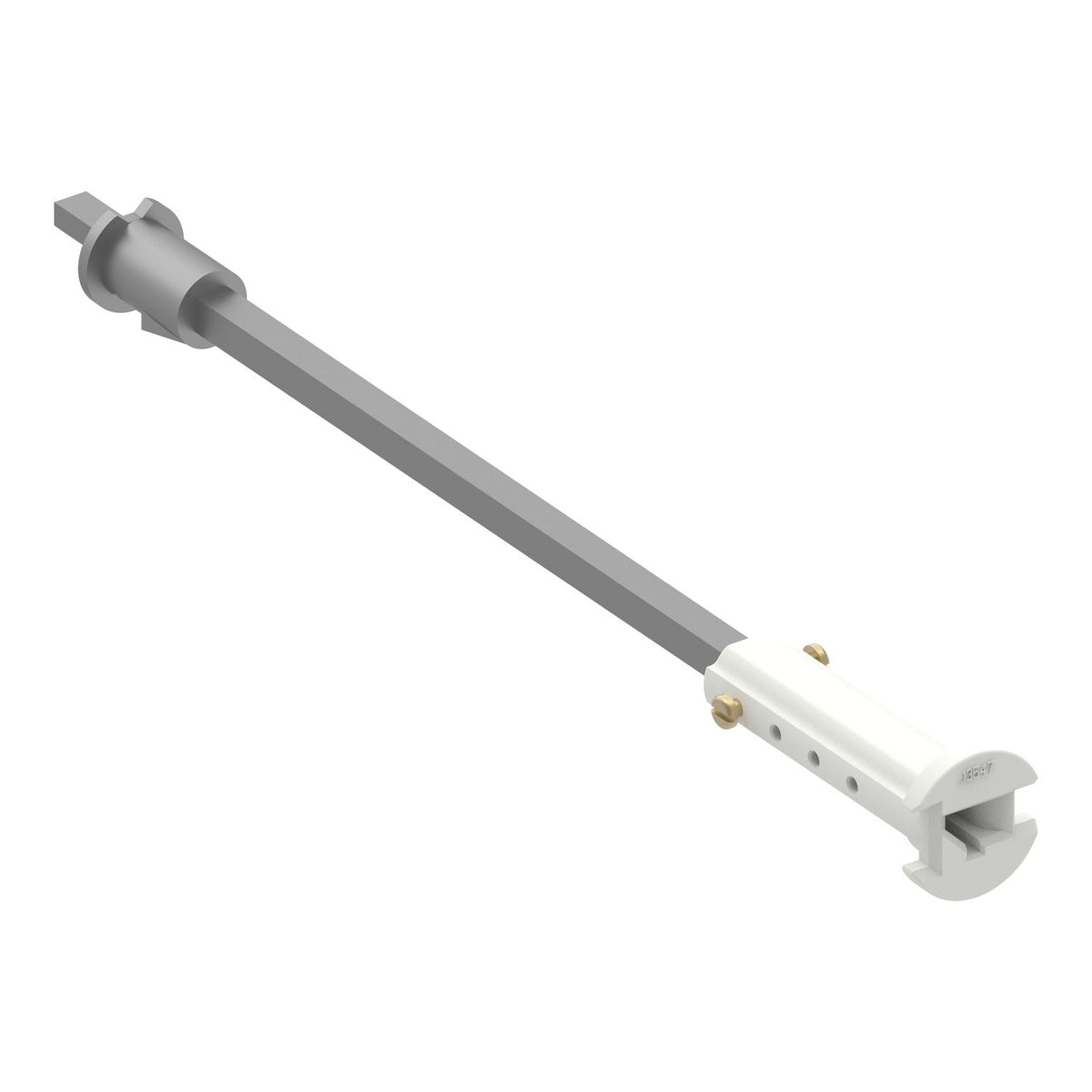

Schneider Electric VZN17 TeSys VARIO shaft extension for rear-mounted switch body
Schneider Electric VZN17 TeSys VARIO shaft extension for rear-mounted switch body

Schneider Electric VZN17 TeSys VARIO Shaft Extension for VN12/VN20/V02-V2 Contactor Accessory

Brand: Schneider Electric
Reference No: VZN17
Catalog No: VZN17
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VZN17 is a shaft extension for TeSys VARIO and Mini-VARIO switch-disconnectors, letting a VN12, VN20 or V02-V2 switch body mounted at the back of an enclosure be operated from a door-mounted handle 300-330 mm away. It is a purely mechanical accessory with no electrical rating of its own.

Technical Specifications

SKU VZN17
Brand Schneider Electric
Range TeSys VARIO
Device Short Name VZ
Product Type Shaft extension
Accessory Category Locking accessory
Product Compatibility VN12, VN20, V02...V2 switch bodies
Function Door interlocking, remote operation of a rear-mounted switch body
Back-to-Door Distance 300-330 mm
Shaft Length 300 mm
Cross-Section 6 x 6 mm
Net Weight 100 g
Quantity per Set Set of 1

Selection Notes

Specify the VZN17 whenever panel depth keeps the switch body itself away from the door — common in deep wall-mounted enclosures — so the handle can still provide door interlocking at the front. Measure the actual back-to-door distance before ordering: the shaft only covers the 300-330 mm range and will not take up slack outside it.

Technical Details

Short Description
TeSys VARIO shaft extension, 300 mm, 300-330 mm back-to-door distance, for VN12/VN20/V02-V2 bodies.
Mounting Type
Rear-mounted switch to door-mounted handle
Catalog No
VZN17
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
VZN17
Tariff Code
853690
