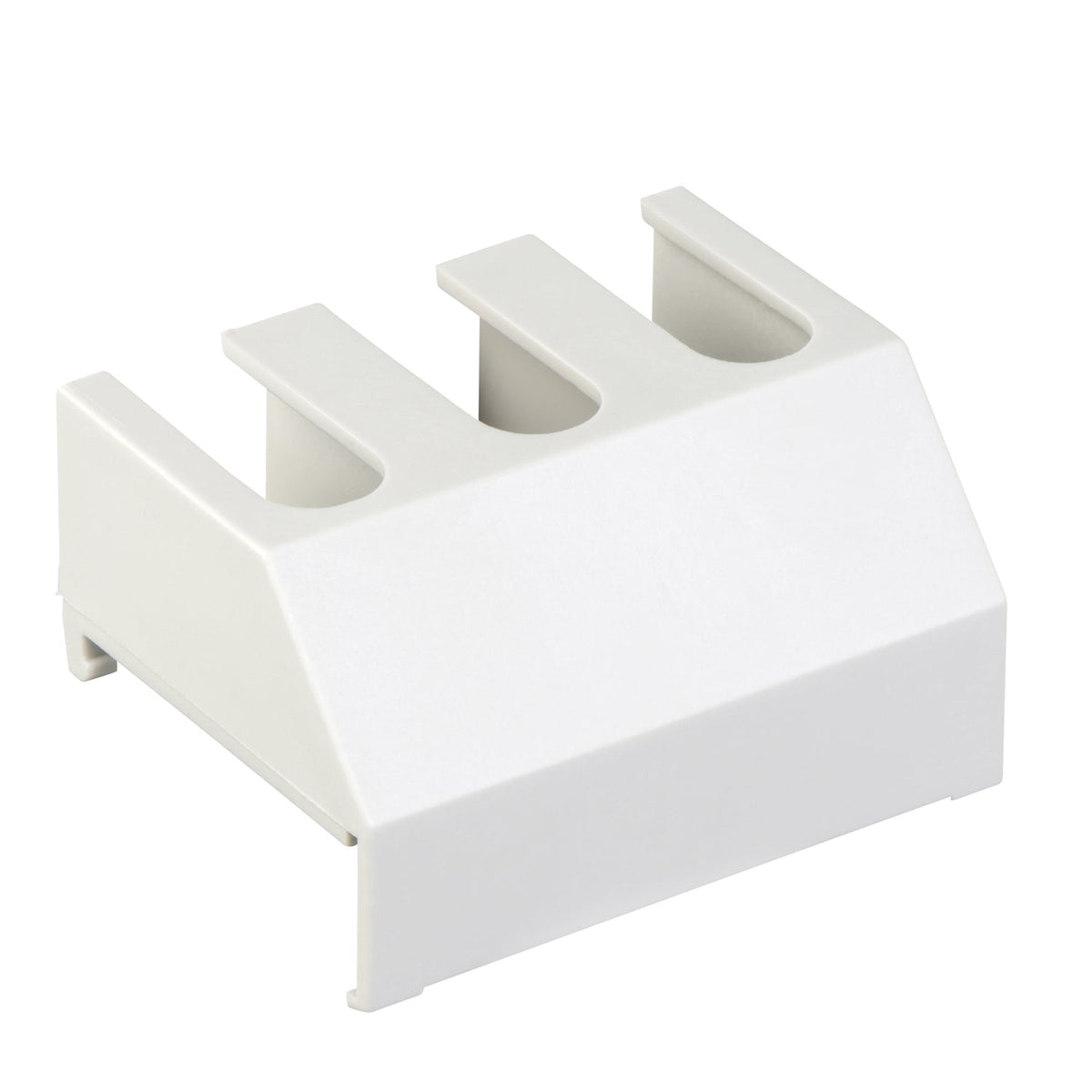

The Schneider Electric VZ8 is a 3-pole terminal protection shroud for TeSys Vario switch-disconnectors, sized for the V02 to V2 switch bodies. It provides front-face IP20 protection against direct contact on the power terminals once the switch is wired and the enclosure door is open for maintenance, and it clips on without tools during panel assembly.
Fit the VZ8 only on V02-V2 switch bodies; the larger V3-V4 bodies use the VZ9 shroud and the V5-V6 bodies use the VZ10, since terminal spacing differs across the Vario frame sizes.
| Range | TeSys |
|---|---|
| Device short name | VZ |
| Product or Component Type | Terminal shroud |
| Accessory / separate part category | Protection accessory |
| Product Compatibility | V02...V2 |
| Poles description | 3P |
| Net Weight | 0.5 oz (15 g) |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | VZ8 |
|---|---|
| Type designation | VZ |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110551983 |
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.015 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for VZ is 853690.
The EAN (GTIN) of VZ is 3389110551983.
VZ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
