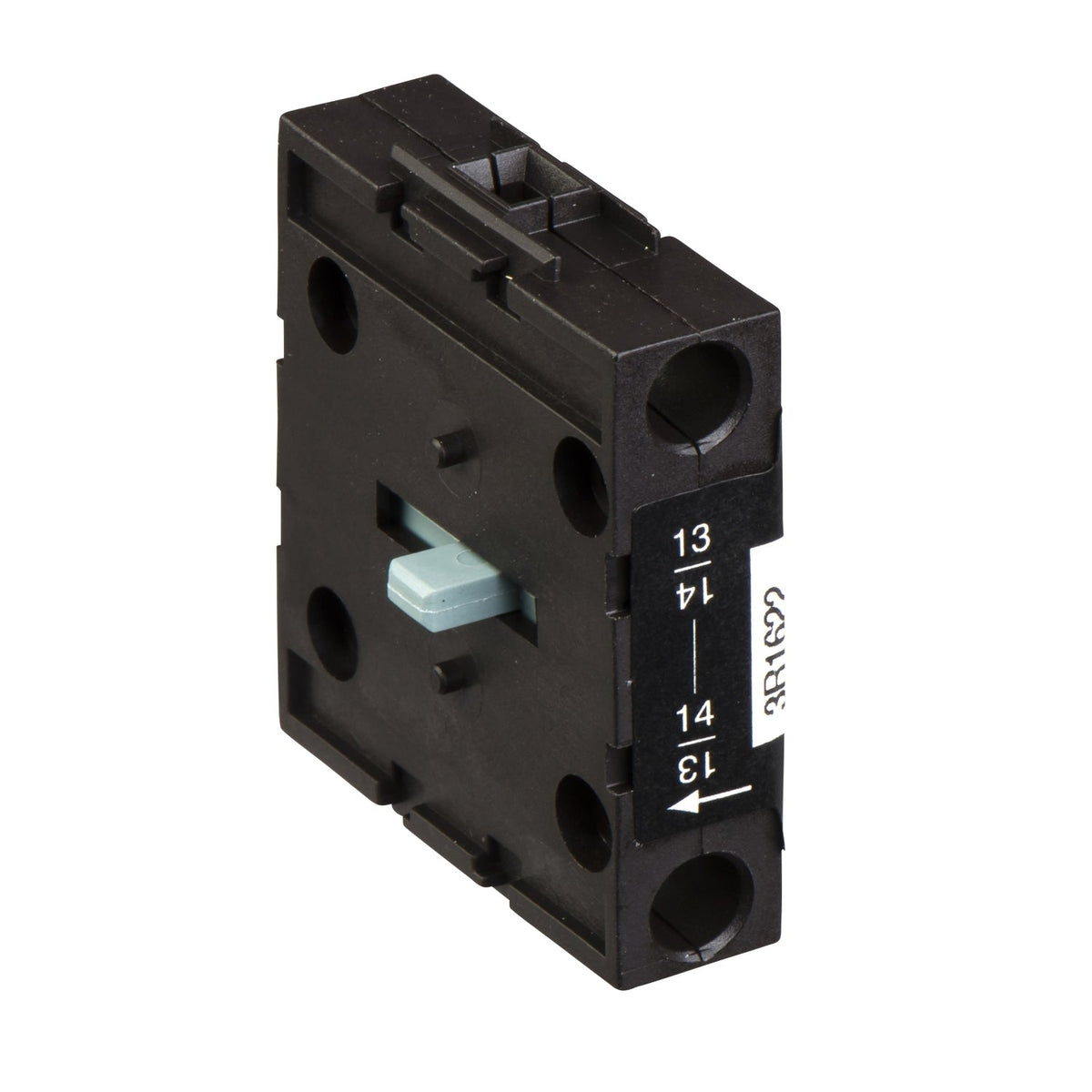

Schneider Electric VZN05 TeSys Mini-VARIO auxiliary contact block 1NO for VN12 VN20

Schneider Electric VZN05 TeSys Mini-VARIO Auxiliary Contact Block 1NO Late-Make for Contactor Accessory

Name: Schneider Electric VZN05 TeSys Mini-VARIO Auxiliary Contact Block 1NO Late-Make for Contactor Accessory
Brand: Schneider Electric
SKU: VZN05
Price: 11.14 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: VZN05

Catalog No: VZN05

Tariff Code (HS): 853690

Rated Current: 6 A

Rated Voltage: 690 V AC

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$11.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric VZN05 is an add-on auxiliary contact module for TeSys Mini-VARIO switch-disconnectors, fitting on one side of a VN12 or VN20 switch body. It carries a single late-make NO contact rated AC-15 to 690 V and DC-01 to 250 V, for remote signalling of switch position.

Technical Specifications

SKU	VZN05
Brand	Schneider Electric
Range	TeSys Mini-VARIO
Device Short Name	VZN
Product Type	Auxiliary contact block
Contacts	1 NO, late-make
Product Compatibility	VN12, VN20 switch bodies
Network Type	AC / DC
Rated Operational Voltage (Ue)	690 V AC 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)	6 kV
Conventional Free Air Thermal Current (Ith)	6 A
Conventional Enclosed Thermal Current (Ithe)	4 A
Terminal Connection	0.75-1.5 mm2 flexible with cable end / 1-2.5 mm2 solid
Dimensions (H x W x D)	45.5 x 12 x 39 mm
Net Weight	0.02 kg
IP Degree of Protection	IP20

Certifications & Standards

GL
CSA
UL
IEC 60947-5

Selection Notes

The late-make timing means the VZN05 contact closes only after the main poles have fully made, so it is the correct choice for a run-confirmation or interlock signal rather than a pre-close warning. For an early-break NC contact instead — useful for a fault or disconnect-warning circuit — use the VZN06 on the same VN12/VN20 body.

Technical Details

Short Description

TeSys Mini-VARIO auxiliary contact block, 1NO late-make, 690 V AC, for VN12/VN20 switch bodies.

Rated Current (Ampere)

6 A

Rated Voltage (VAC)

690 V AC

Mounting Type

Side-mounted add-on module

Protection Type

IP20

Catalog No

VZN05

Number of Poles

Delivery Date (Days)

30 days

Model Number

VZN05

Tariff Code

853690
