Part number
VZ7
Model no
VZ
$17.02 On request Dispatch — · From TürkiyeGet a Quote

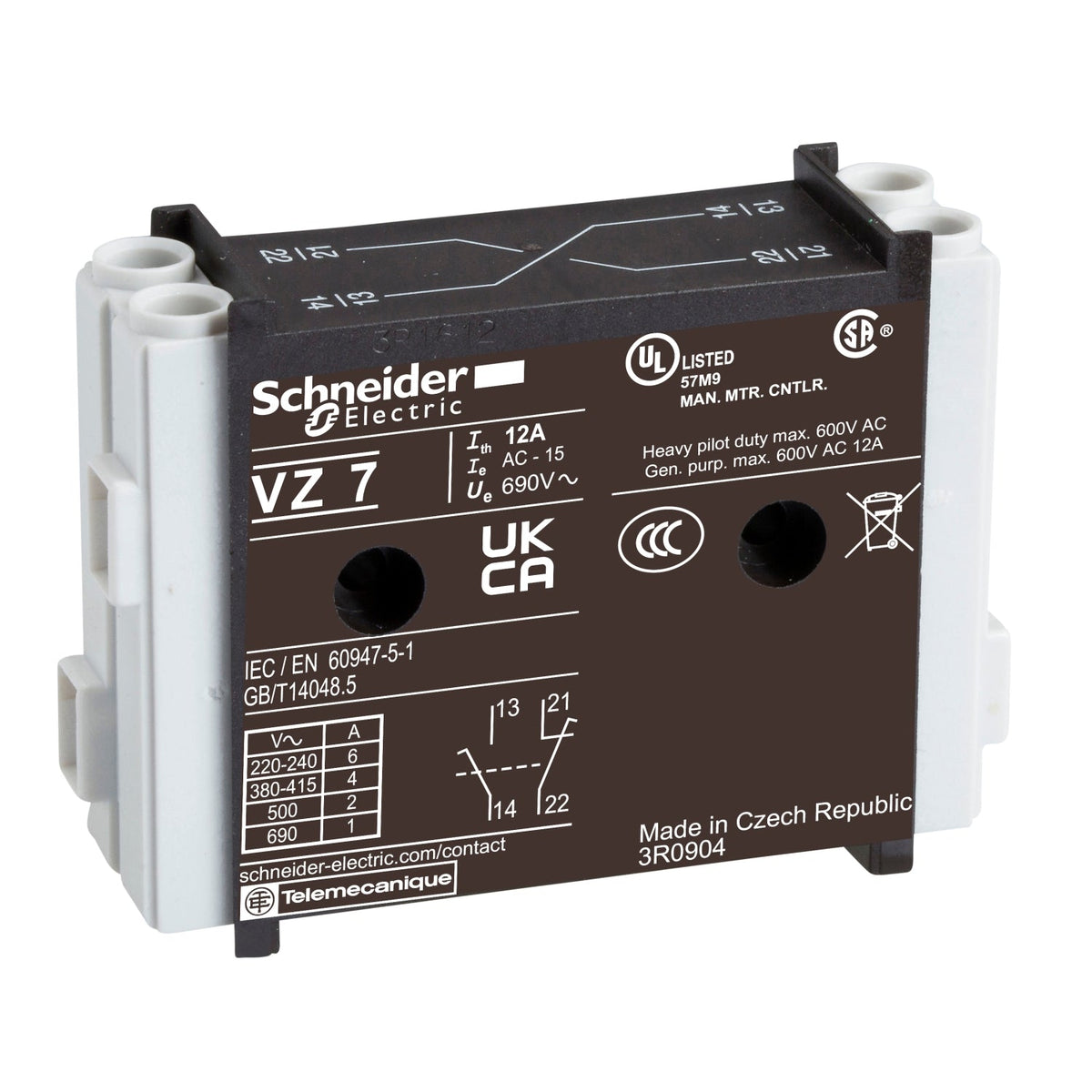

Schneider Electric VZ7 TeSys Vario Auxiliary Contact Block 1NO+1NC for V02-V6 Contactor Accessory

TeSys Vario auxiliary contact block, 1NO+1NC, 690 V AC, 12 A, for V02-V6 switch bodies.

Rated current
12 A
Rated operational voltage
690 V AC
Poles
3P
EAN
3389110551969
Description

About the VZ

The Schneider Electric VZ7 is an add-on auxiliary contact block for TeSys Vario switch-disconnectors, mounting to either side of switch bodies V02 to V6. It provides a late-make NO contact and an early-break NC contact rated for AC operation up to 690 V and DC operation up to 250 V, with a 12 A conventional free-air thermal current.

Certifications & Standards

  • GL
  • CSA
  • UL
  • UKCA
  • IEC 60947-5

Selection Notes

The VZ7's early-break NC contact opens before the switch blades separate, making it suitable for an interlock or pre-signal that must de-energize a downstream circuit ahead of the main contacts; where both signals should instead be closed-on-ON, the 2 NO VZ20 is the matching part on the same V02-V6 switch body range.

Specification

Full specification

42 values · Last verified 30 Oct 2026

Main 9

Range TeSys
Device short name VZ
Product or Component Type Auxiliary contact block
Performance level High performance
Contacts type and composition 1 NO + 1 NC
Contact operation Late-make 1 NO, Early-break 1 NC
Product Compatibility V2, V5, V02, V6, V1, V4, V01, V0, V3
Network type AC, DC
Network Frequency 50/60 Hz

Complementary 13

Mounting Location Left, Right
[Ue] rated operational voltage 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ith] conventional free air thermal current 12 A
[Ithe] conventional enclosed thermal current 10 A
Mechanical durability 100000 cycles
Electrical durability 30000 cycles DC-11, 100000 cycles AC-15
Connections - terminals screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) flexible - with cable end, screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) solid
Tightening torque 6.2 lbf.in (0.7 N.m) screw clamp terminals
Height 2.6 in (65 mm)
Width 0.8 in (20 mm)
Depth 1.9 in (48.5 mm)
Net Weight 0.11 lb(US) (0.05 kg)

Environment 6

Standards IEC 60947-5
Product Certifications GL, CSA, UL, UKCA
Protective treatment TC
IP degree of protection IP20 conforming to IEC 60529
Ambient Air Temperature for Operation -4…122 °F (-20…50 °C)
Fire resistance 1760 °F (960 °C) IEC 60695-2-1
Show all 42 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number VZ7
Type designation VZ
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110551969

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.05 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for VZ7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • UKCA
  • IEC 60947-5
Quick answers

Questions about the VZ

What is the rated current of VZ?

The rated current of VZ is 12 A.

Which supply voltage is VZ rated for?

The rated operational voltage of VZ is 690 V AC.

What is the HS code of VZ for customs?

The tariff (HS) code on file for VZ is 853690.

What is the EAN of VZ?

The EAN (GTIN) of VZ is 3389110551969.

Where does VZ ship from, and how fast?

VZ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
