Schneider Electric VZ31 TeSys Vario Shaft Extension 400-450 mm for V3-V6 Contactor Accessory

% $-16.65

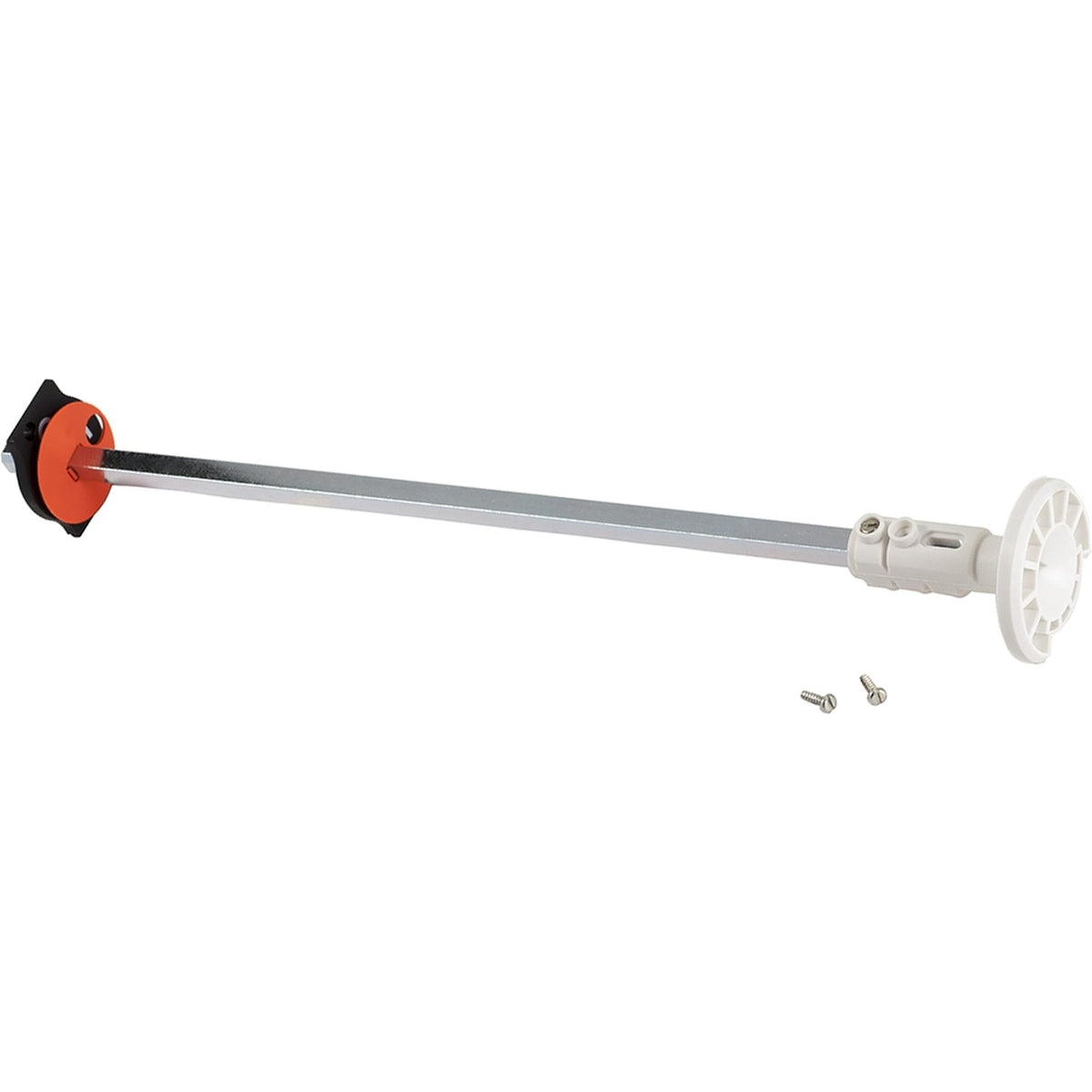

Schneider Electric VZ31 TeSys Vario shaft extension 400-450 mm for V3-V6 switch bodies
Schneider Electric VZ31 TeSys Vario shaft extension 400-450 mm for V3-V6 switch bodies

Schneider Electric VZ31 TeSys Vario Shaft Extension 400-450 mm for V3-V6 Contactor Accessory

Brand: Schneider Electric
Reference No: VZ31
Catalog No: VZ31
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$16.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VZ31 is a shaft extension for TeSys Vario switch bodies V3 to V6, letting a door-mounted handle operate a switch body recessed 400-420 mm behind the door for V3-V4 bodies, or 430-450 mm for V5-V6 bodies. It provides the door interlocking function and is supplied as a set of one.

Technical Specifications

Reference VZ31
Brand Schneider Electric
Range TeSys Vario
GTIN 3389110552225
Device short name VZ
Product or component type Shaft extension
Accessory category Locking accessory
Product compatibility V3, V4, V5, V6
Quantity per set Set of 1
Mechanical interlocking Door interlocking function
Back/door distance 400-420 mm (V3-V4), 430-450 mm (V5-V6)
Length 400 mm
Cross-section 8 mm x 8 mm
Net weight 215 g

Selection Notes

Use the VZ31 instead of the VZ18 when the back-of-enclosure-to-door distance runs 400-450 mm rather than 300-350 mm, on the same V3-V6 switch body range; the 8 x 8 mm shaft section keeps the same operating torque as the shorter VZ18 over the longer run.

Technical Details

Short Description
TeSys Vario shaft extension, 400-450 mm, door interlocking, for V3-V6 switch bodies.
Mounting Type
Shaft coupling, door-mounted handle
Catalog No
VZ31
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
VZ
Tariff Code
853690
