Schneider Electric VZ30 TeSys Vario Shaft Extension 400-430 mm for V02-V2 Contactor Accessory

% $-15.35

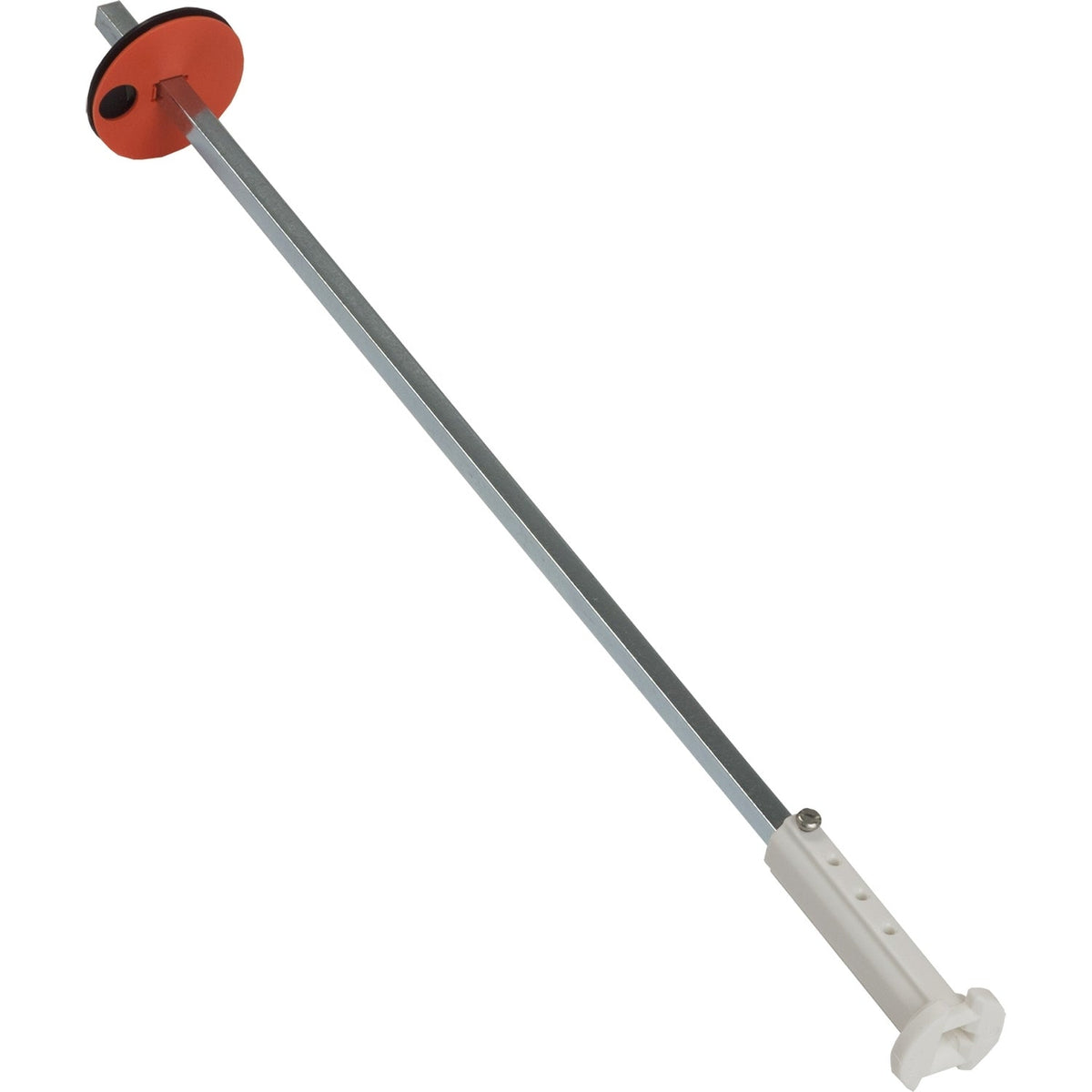

Schneider Electric VZ30 TeSys Vario shaft extension 400-430 mm for V02-V2 switch bodies
Schneider Electric VZ30 TeSys Vario shaft extension 400-430 mm for V02-V2 switch bodies

Schneider Electric VZ30 TeSys Vario Shaft Extension 400-430 mm for V02-V2 Contactor Accessory

Brand: Schneider Electric
Reference No: VZ30
Catalog No: VZ30
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$15.35

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VZ30 is a shaft extension for TeSys Vario switch bodies V02 to V2, letting a door-mounted handle operate a switch body recessed 400-430 mm behind the enclosure door. It provides the door interlocking function expected of a Vario handle assembly and is supplied as a set of one.

Technical Specifications

Reference VZ30
Brand Schneider Electric
Range TeSys Vario
GTIN 3389110552195
Device short name VZ
Product or component type Shaft extension
Accessory category Locking accessory
Product compatibility V02...V2
Quantity per set Set of 1
Mechanical interlocking Door interlocking function
Back/door distance 400-430 mm
Cross-section 6 mm x 6 mm
Net weight 125 g

Selection Notes

Use the VZ30 instead of the VZ17 when the back-of-enclosure-to-door distance runs 400-430 mm rather than 300-330 mm, on the same V02-V2 switch body range; for a V3-V6 body at this longer depth, the matching part is the VZ31.

Technical Details

Short Description
TeSys Vario shaft extension, 400-430 mm, door interlocking, for V02-V2 switch bodies.
Mounting Type
Shaft coupling, door-mounted handle
Catalog No
VZ30
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
VZ
Tariff Code
853690
