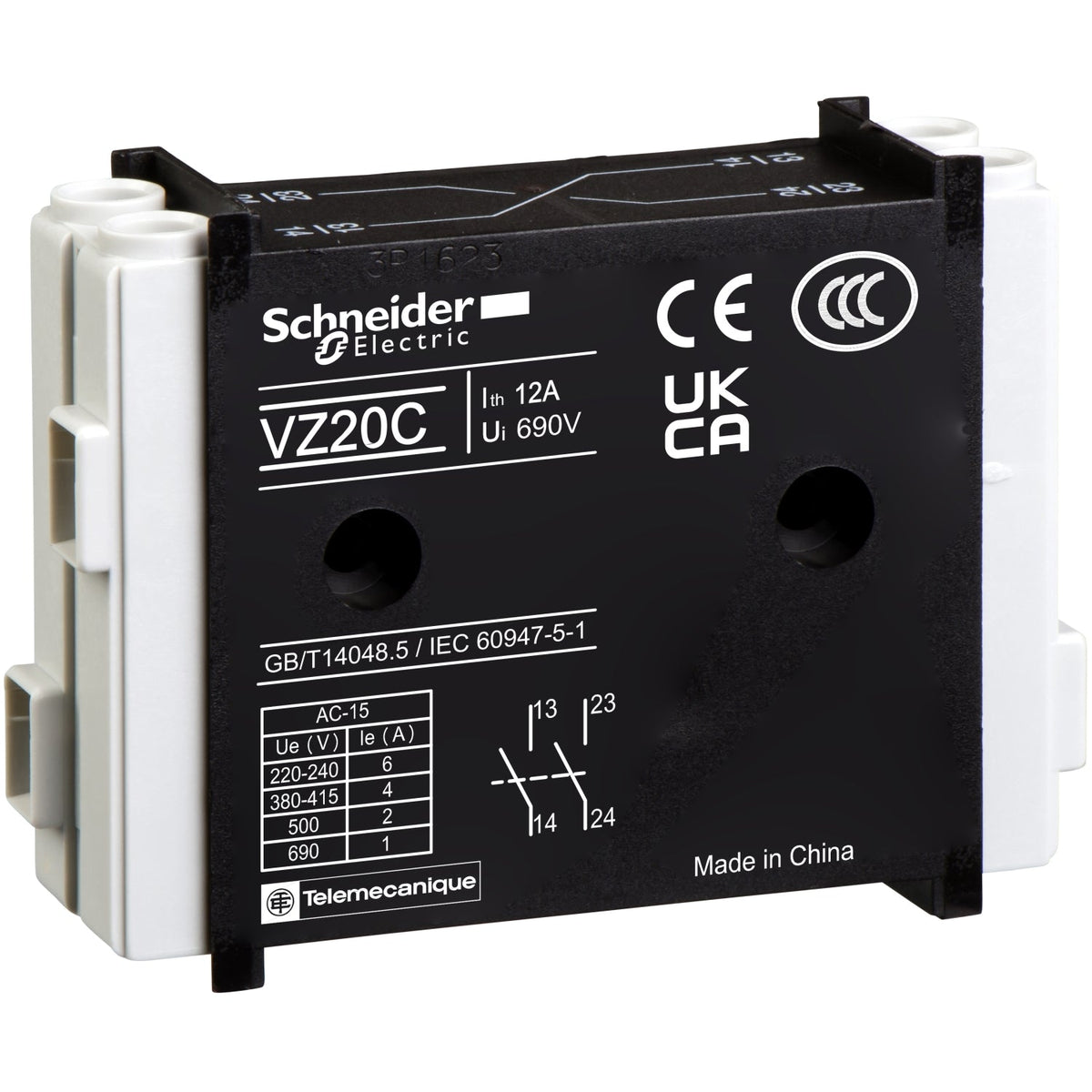

The Schneider Electric VZ20 is an add-on auxiliary contact block for TeSys Vario switch-disconnectors, mounting to either side of switch bodies V02 to V6. It provides 2 NO late-make contacts rated for AC operation up to 690 V and DC operation up to 250 V, with a 12 A conventional free-air thermal current.
The VZ20's 2 NO contacts suit remote-indication circuits that need two independent closed-on-ON signals, for example feeding a PLC input and a local pilot light from the same switch position; where one contact must instead open on the ON state, the 1 NO + 1 NC VZ7 is the matching part, and both blocks fit the same V02-V6 switch body range.
| Range | TeSys |
|---|---|
| Device short name | VZ |
| Product or Component Type | Auxiliary contact block |
| Performance level | High performance |
| Contacts type and composition | 1 NO + 1 NO |
| Product Compatibility | V3, V01, V2, V0, V6, V4, V1, V5, V02 |
| Network type | DC, AC |
| Network Frequency | 50/60 Hz |
| Mounting Location | Left, Right |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 12 A |
| [Ithe] conventional enclosed thermal current | 10 A |
| Mechanical durability | 100000 cycles |
| Electrical durability | 30000 cycles DC-11, 100000 cycles AC-15 |
| Connections - terminals | screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) flexible - with cable end, screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) solid |
| Tightening torque | 6.2 lbf.in (0.7 N.m) screw clamp terminals |
| Height | 2.6 in (65 mm) |
| Width | 0.8 in (20 mm) |
| Depth | 1.9 in (48.5 mm) |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| Standards | IEC 60947-5 |
|---|---|
| Product Certifications | GL, UL, CSA, UKCA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature for Operation | -4…122 °F (-20…50 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Part number | VZ20 |
|---|---|
| Type designation | VZ |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110551976 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of VZ is 12 A.
The rated operational voltage of VZ is 690 V AC.
The tariff (HS) code on file for VZ is 853690.
The EAN (GTIN) of VZ is 3389110551976.
