Schneider Electric VZ18 TeSys Vario Shaft Extension 300-350 mm for V3-V6 Contactor Accessory

% $-16.41

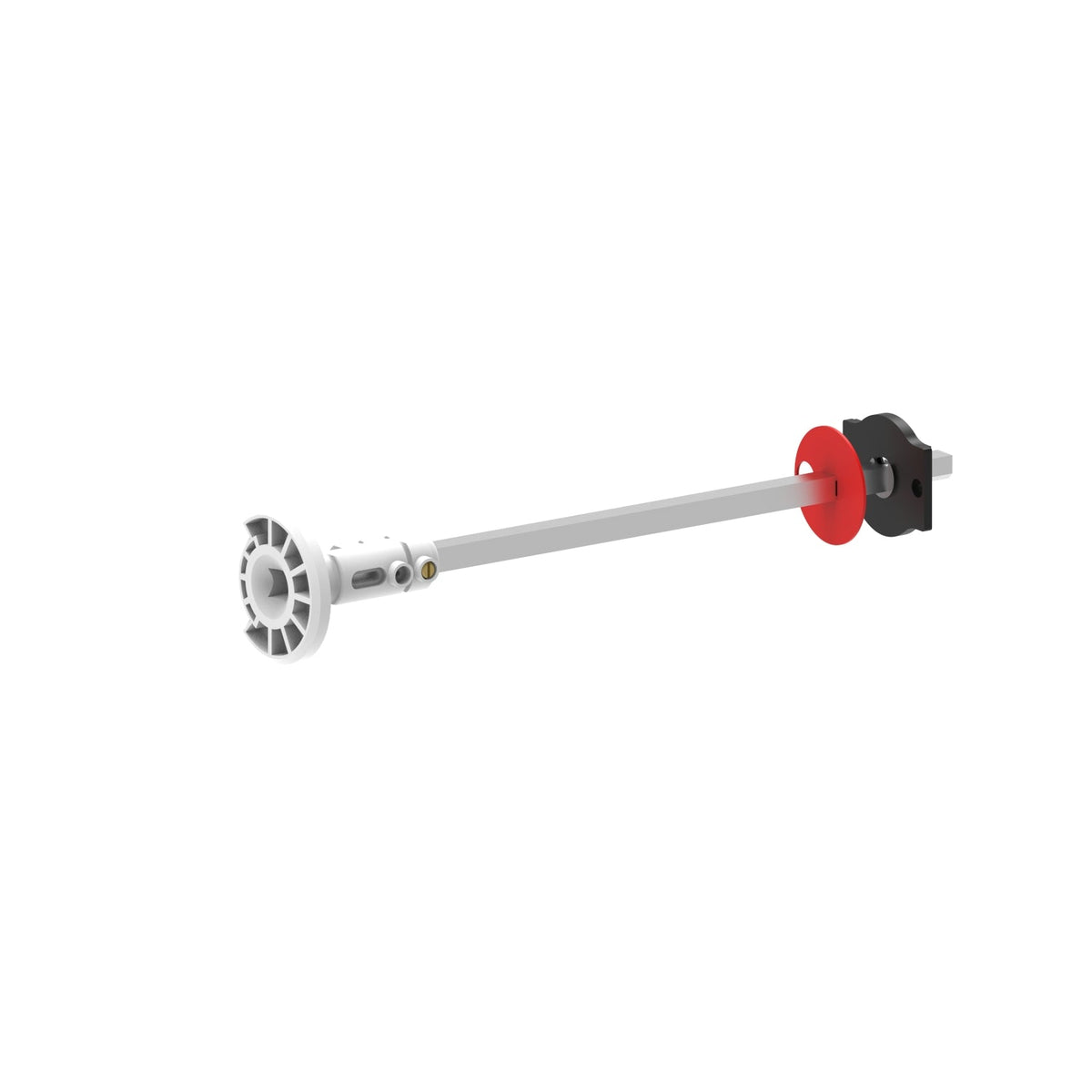

Schneider Electric VZ18 TeSys Vario shaft extension 300-350 mm for V3-V6 switch bodies
Schneider Electric VZ18 TeSys Vario shaft extension 300-350 mm for V3-V6 switch bodies

Schneider Electric VZ18 TeSys Vario Shaft Extension 300-350 mm for V3-V6 Contactor Accessory

Brand: Schneider Electric
Reference No: VZ18
Catalog No: VZ18
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$16.41

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VZ18 is a shaft extension for TeSys Vario switch bodies V3 to V6, letting a door-mounted handle operate a switch body recessed 300-320 mm behind the door for V3-V4 bodies, or 330-350 mm for V5-V6 bodies. It provides the door interlocking function and is supplied as a set of one.

Technical Specifications

Reference VZ18
Brand Schneider Electric
Range TeSys Vario
GTIN 3389110552218
Device short name VZ
Product or component type Shaft extension
Accessory category Locking accessory
Product compatibility V3, V4, V5, V6
Quantity per set Set of 1
Mechanical interlocking Door interlocking function
Back/door distance 300-320 mm (V3-V4), 330-350 mm (V5-V6)
Cross-section 8 mm x 8 mm
Net weight 170 g

Selection Notes

Select the VZ18 for the larger V3-V6 switch bodies at this depth range; its 8 x 8 mm shaft section is sized for the higher operating torque of these frames, so it is not interchangeable with the 6 x 6 mm VZ17 used on V02-V2 bodies even at a similar back/door distance.

Technical Details

Short Description
TeSys Vario shaft extension, 300-350 mm, door interlocking, for V3-V6 switch bodies.
Mounting Type
Shaft coupling, door-mounted handle
Catalog No
VZ18
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
VZ
Tariff Code
853690
