Schneider Electric VZ17 TeSys Vario Shaft Extension 300-330 mm for V02-V2 Contactor Accessory

% $-13.31

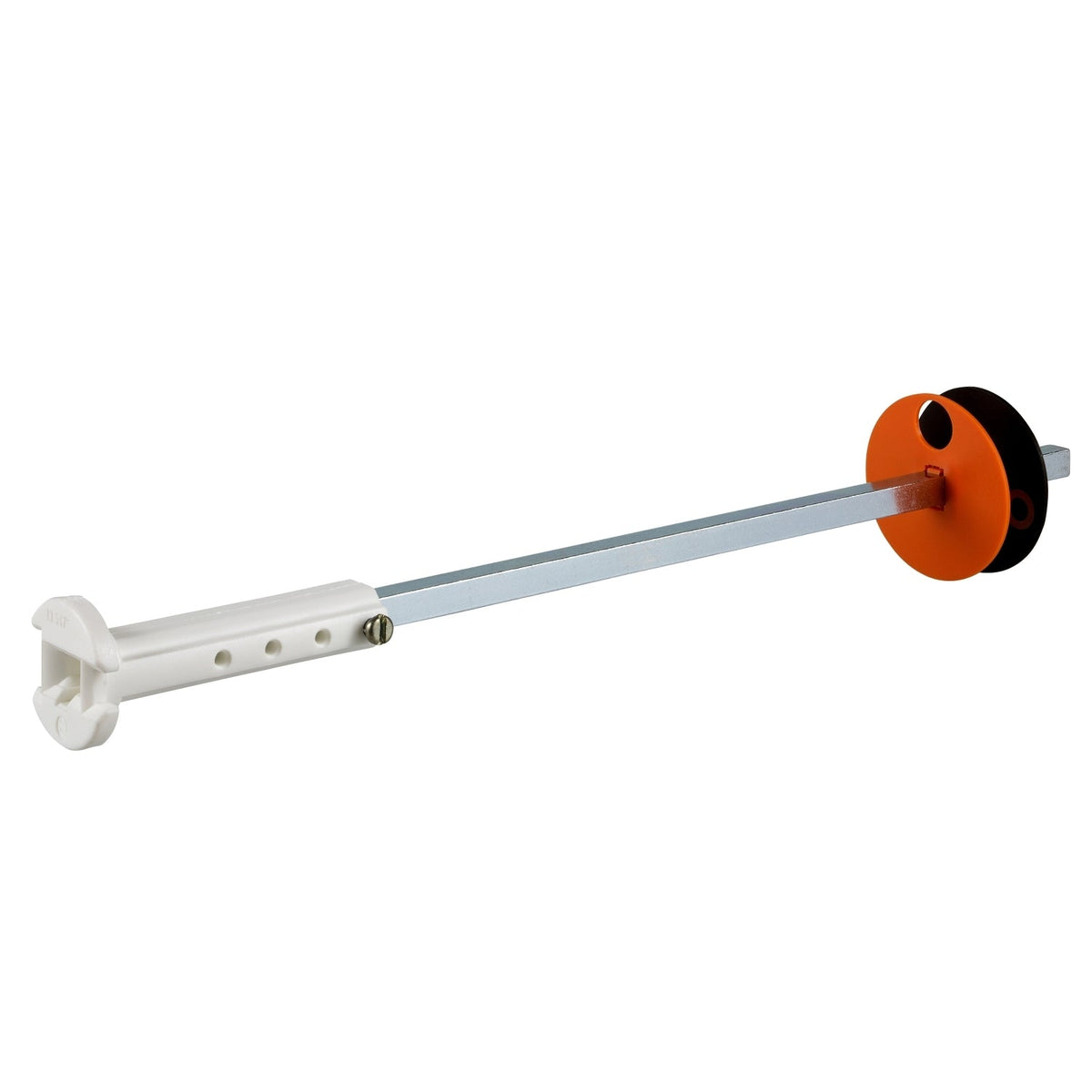

Schneider Electric VZ17 TeSys Vario shaft extension 300-330 mm for V02-V2 switch bodies
Schneider Electric VZ17 TeSys Vario shaft extension 300-330 mm for V02-V2 switch bodies

Schneider Electric VZ17 TeSys Vario Shaft Extension 300-330 mm for V02-V2 Contactor Accessory

Brand: Schneider Electric
Reference No: VZ17
Catalog No: VZ17
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$13.31

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VZ17 is a shaft extension for TeSys Vario switch bodies V02 to V2, letting a door-mounted handle operate a switch body recessed 300-330 mm behind the enclosure door. It provides the door interlocking function expected of a Vario handle assembly and is supplied as a set of one.

Technical Specifications

Reference VZ17
Brand Schneider Electric
Range TeSys Vario
GTIN 3389110552188
Device short name VZ
Product or component type Shaft extension
Accessory category Locking accessory
Product compatibility V02...V2
Quantity per set Set of 1
Mechanical interlocking Door interlocking function
Back/door distance 300-330 mm
Length 300 mm
Cross-section 6 mm x 6 mm
Net weight 75 g

Selection Notes

Select the VZ17 only when the back-of-enclosure-to-door distance measures 300-330 mm and the switch body is in the V02-V2 size range; a V3-V6 switch body at the same distance instead uses the larger-section VZ18, and a longer 400-430 mm run on a V02-V2 body uses the VZ30.

Technical Details

Short Description
TeSys Vario shaft extension, 300-330 mm, door interlocking, for V02-V2 switch bodies.
Mounting Type
Shaft coupling, door-mounted handle
Catalog No
VZ17
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
VZ
Tariff Code
853690
