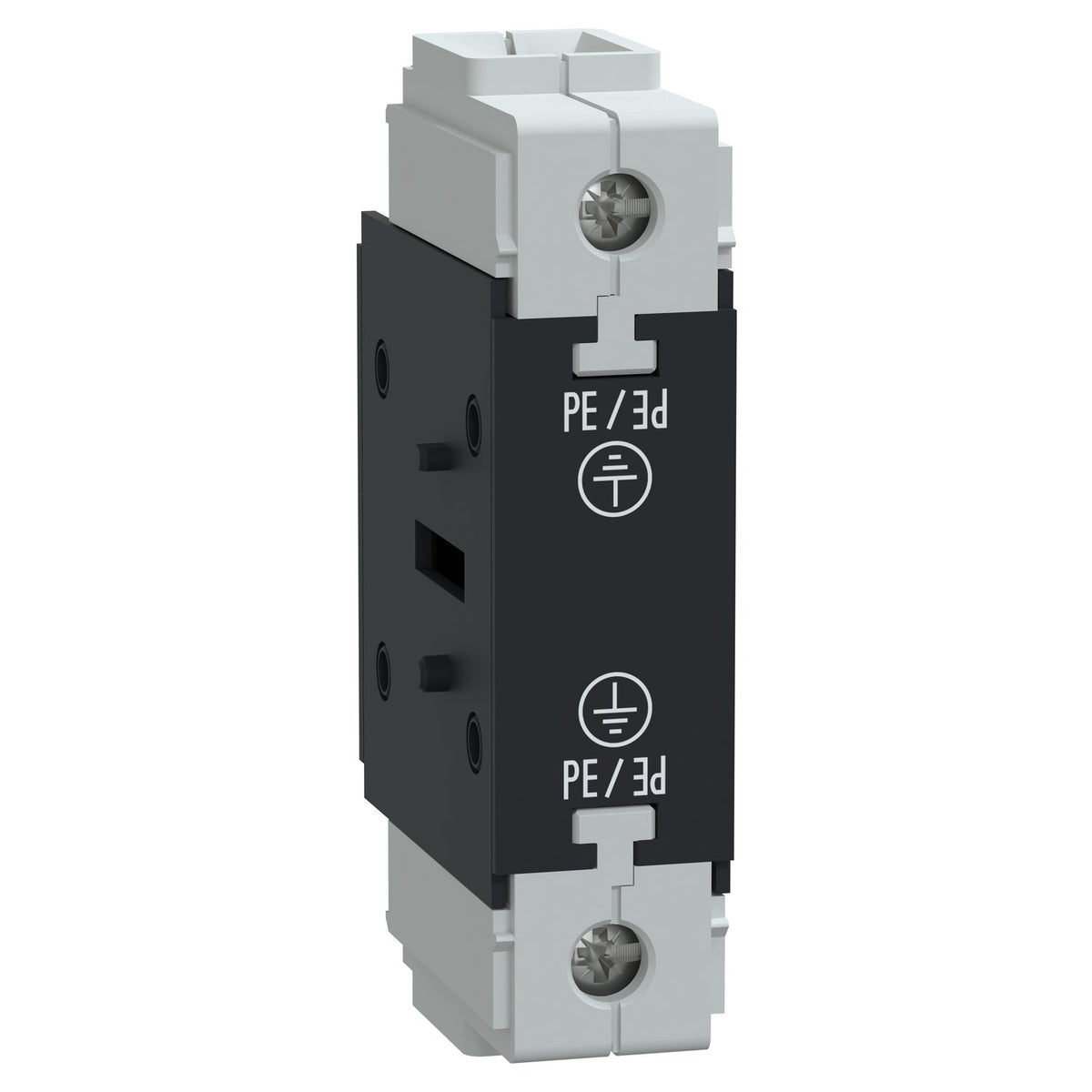

Schneider Electric VZ15 TeSys Vario Additional Earthing Block 80 A for V3-V4 Contactor Accessory

TeSys Vario additional earthing block, 80 A, 690 V AC, for V3 and V4 switch bodies.

Rated current
80 A
Rated operational voltage
690 V AC
Poles
3P
EAN
3389110551945
Description

About the VZ

The Schneider Electric VZ15 is an add-on earthing block for TeSys Vario switch-disconnectors, sized for the V3 and V4 switch bodies and rated 63-80 A at up to 690 V AC. It mounts to either side of the switch body on a DIN assembly and carries IEC, UL, CSA, CCC, and EAC certification for worldwide use.

Certifications & Standards

  • UL
  • CSA
  • GL
  • UKCA
  • IEC 60947-3

Selection Notes

Add the VZ15 where the panel design calls for a dedicated earth connection point alongside the V3/V4 switch body rather than a separate terminal block; its 80 A rating matches the switch body's upper current range, and it is not interchangeable with the V02-V2 or V5-V6 frame sizes.

Specification

Full specification

38 values · Last verified 30 Oct 2026

Main 8

Range TeSys
Device short name VZ
Product or Component Type Additional earthing block
Performance level High performance
Contacts type and composition Without
Product Compatibility V3, V4
Network type DC, AC
Network Frequency 50/60 Hz

Complementary 9

Mounting Location Left, Right
[Ue] rated operational voltage 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV
[Ith] conventional free air thermal current 80 A
Connections - terminals screw clamp terminals
Height 3.3 in (83 mm)
Width 0.8 in (20 mm)
Depth 1.8 in (46 mm)
Net Weight 0.2 lb(US) (0.1 kg)

Environment 7

Standards IEC 60947-3
Product Certifications UL, CSA, GL, UKCA
Protective treatment TC
IP degree of protection IP20 conforming to IEC 60529
Mechanical robustness Vibrations 10...150 Hz 5 gn) IEC 60068-2-6, Shocks 11 ms 15 gn) IEC 60068-2-27
Ambient Air Temperature for Operation -4…122 °F (-20…50 °C)
Fire resistance 1760 °F (960 °C) IEC 60695-2-1
Show all 38 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number VZ15
Type designation VZ
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110551945

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.1 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for VZ15

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • UKCA
  • IEC 60947-3
Quick answers

Questions about the VZ

What is the rated current of VZ?

The rated current of VZ is 80 A.

Which supply voltage is VZ rated for?

The rated operational voltage of VZ is 690 V AC.

What is the HS code of VZ for customs?

The tariff (HS) code on file for VZ is 853690.

What is the EAN of VZ?

The EAN (GTIN) of VZ is 3389110551945.

Where does VZ ship from, and how fast?

VZ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
