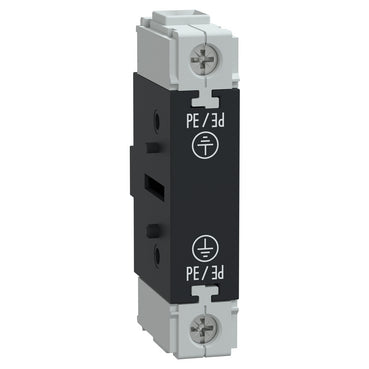

The Schneider Electric VZ14 is an add-on earthing module for TeSys VARIO switch-disconnectors, rated 12-40 A at 690 V for use with the V0, V01, V02, V1 and V2 switch bodies. It provides a fixed earth connection point alongside the switched poles rather than a switched contact.
Use the VZ14 on the smaller V0-V2 switch bodies (VBF0, VBF02, VBF2) when the installation needs a dedicated earth terminal built into the switch assembly; for the larger V5/V6 bodies, the equivalent earthing accessory is the VZ16, which carries a higher 175 A thermal rating and larger terminal to match that frame.
| Range | TeSys |
|---|---|
| Device short name | VZ |
| Product or Component Type | Additional earthing block |
| Performance level | High performance |
| Contacts type and composition | Without |
| Product Compatibility | V0, V02, V2, V01, V1 |
| Network type | AC, DC |
| Network Frequency | 50/60 Hz |
| Mounting Location | Left, Right |
|---|---|
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ith] conventional free air thermal current | 40 A |
| Connections - terminals | screw clamp terminals |
| Height | 2.9 in (74 mm) |
| Width | 0.6 in (16 mm) |
| Depth | 1.4 in (35 mm) |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| Standards | IEC 60947-3 |
|---|---|
| Product Certifications | UL, GL, CSA, UKCA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz 5 gn) IEC 60068-2-6, Shocks 11 ms 15 gn) IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -4…122 °F (-20…50 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Part number | VZ14 |
|---|---|
| Type designation | VZ |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110551938 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of VZ is 40 A.
The rated operational voltage of VZ is 690 V AC.
The tariff (HS) code on file for VZ is 853650.
The EAN (GTIN) of VZ is 3389110551938.
VZ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
