Schneider Electric VW3M3805R010 CANopen Preassembled Cable 1m RJ45 SUB-D9 Networking Accessory

% $-41.75
Schneider Electric VW3M3805R010 CANopen cable 1m RJ45 SUB-D9
Schneider Electric VW3M3805R010 CANopen cable 1m RJ45 SUB-D9

Schneider Electric VW3M3805R010 CANopen Preassembled Cable 1m RJ45 SUB-D9 Networking Accessory

Brand: Schneider Electric
Reference No: VW3M3805R010
Catalog No: VW3M3805R010
Series: CANopen
Tariff Code (HS): 851762
Communication: CANopen
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$41.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

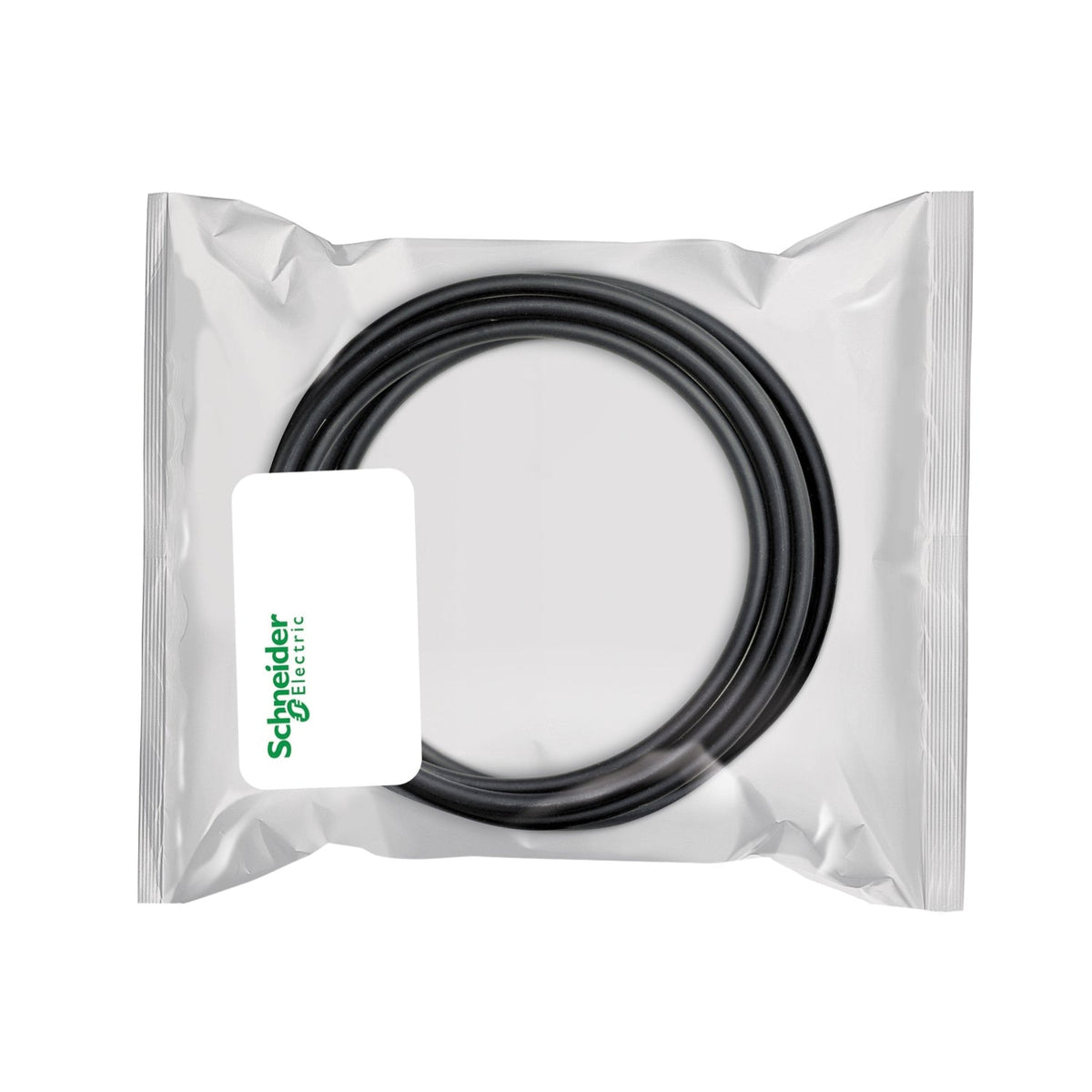

The Schneider Electric VW3M3805R010 is a preassembled CANopen bus cable, 1 m long, connecting a RJ45 port to a female SUB-D 9 connector with an integrated line terminator for bus-end nodes such as a Modicon M238, M258, or LMC058 controller, or a Lexium 28 drive. It weighs 0.077 kg, ships in packs of 100, and is manufactured in China.

Technical Specifications

Reference VW3M3805R010
Brand Schneider Electric
Range of Product CANopen
GTIN 3389119214599
Product Type CANopen cable
Accessory Category Connection accessories
Accessory Type Connecting cable
Bus Type CANopen
Cable Length 1 m
Connector Type 1x RJ45, 1x female SUB-D 9 with integrated line terminator
Electrical Connection 2 connectors
Net Weight 0.077 kg
Country of Origin China
Number of Units in Package 100

Selection Notes

The integrated line terminator at the SUB-D 9 end makes the VW3M3805R010 suited to the last node on a CANopen segment (for example a Modicon LMC058, M238, or M258 controller, or a Lexium 28 drive), where bus termination is required; use an unterminated cable instead for mid-segment nodes. At 1 m, it is the shorter option versus the 3 m version of the same RJ45-to-SUB-D 9 cable, so choose based on the physical distance between the controller and the connected device.

Technical Details

Short Description
CANopen preassembled cable, 1 m, 1x RJ45 to 1x female SUB-D 9 with integrated line terminator, 0.077 kg.
Catalog No
VW3M3805R010
Delivery Date (Days)
30 days
Model Number
VW3M3805R010
Tariff Code
851762
