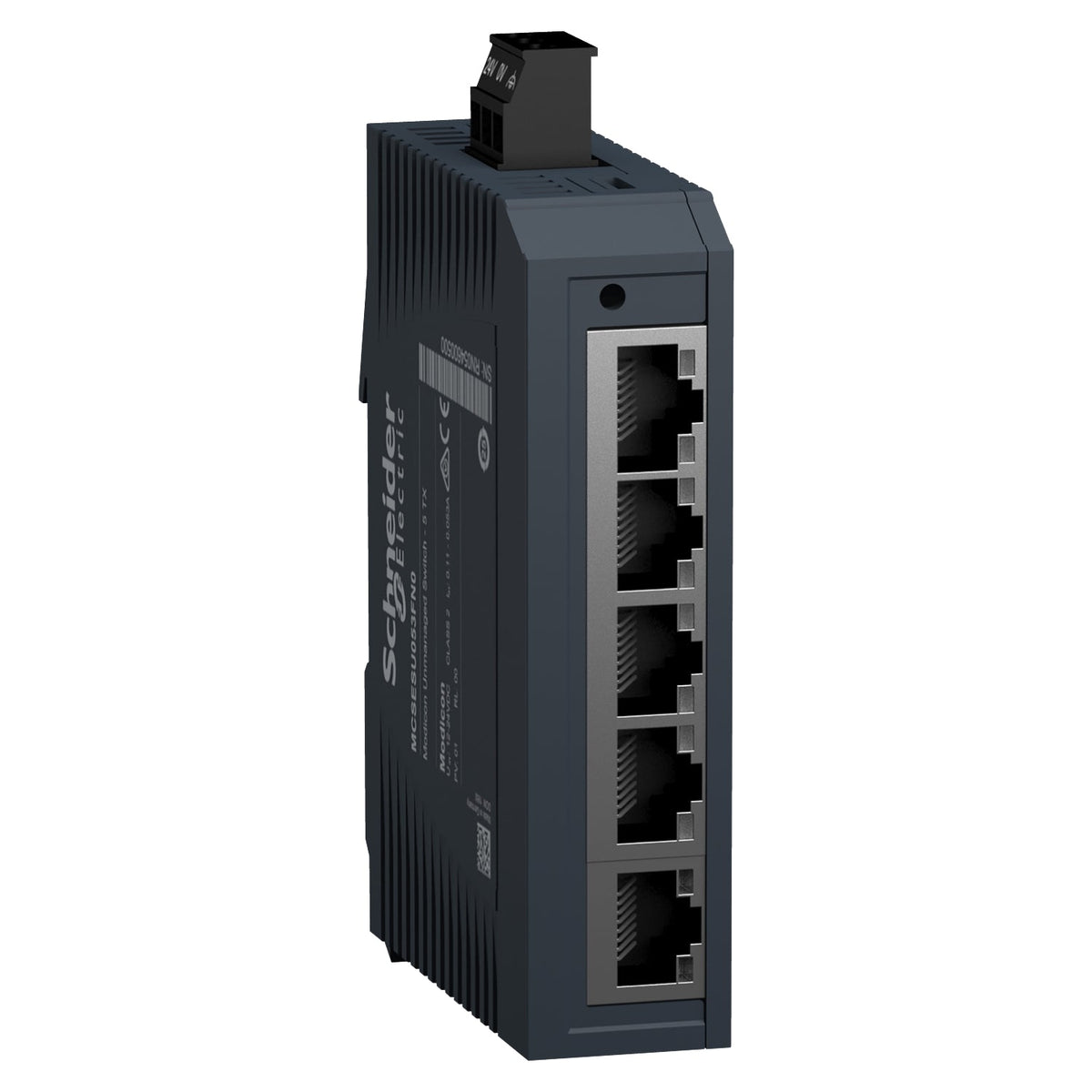

Schneider Electric MCSESU053FN0 Modicon 5-Port Unmanaged Switch DIN Rail Industrial Ethernet Switch

The Schneider Electric MCSESU053FN0 is a Modicon Networking unmanaged Ethernet switch with 5 copper 10/100BASE-TX ports for plug-and-play connectivity. It needs no configuration, draws just 1.3 W from a 12...24 V DC supply, and mounts on a DIN rail at 26 x 102 x 79 mm and 0.125 kg for small, isolated network segments.

Technical Specifications

Certifications & Standards

• CE
• UL
• RCM
• EAC
• UKCA
• UL 61010-2-201
• EN/IEC 61131-2

Applications

Schneider Electric lists the MCSESU053FN0's shielded connectors as suited to small, isolated networks with light traffic and low complexity — a single machine cell or local I/O group rather than a plant backbone. Its 5 copper ports and 1.3 W draw fit a compact panel linking a controller to a handful of drives, I/O blocks or an HMI where no fiber uplink, VLAN or redundancy protocol is required.

Selection Notes

The MCSESU053FN0 is the all-copper, no-fiber entry point of the Modicon unmanaged switch line — pick it over the MCSESU053F1CU0 when every connected device sits within standard 100 m copper reach and no fiber uplink is needed, saving the cost of the fiber port. At 1.3 W it draws less power than any other switch in this group, useful where supply current is limited, and its 5-port count gives one spare port over the 4-port fiber variant for the same compact 26 mm footprint.
