- Part number
- VW3CANCARR1
Description
About the VW3CANCARR1
About the VW3CANCARR1

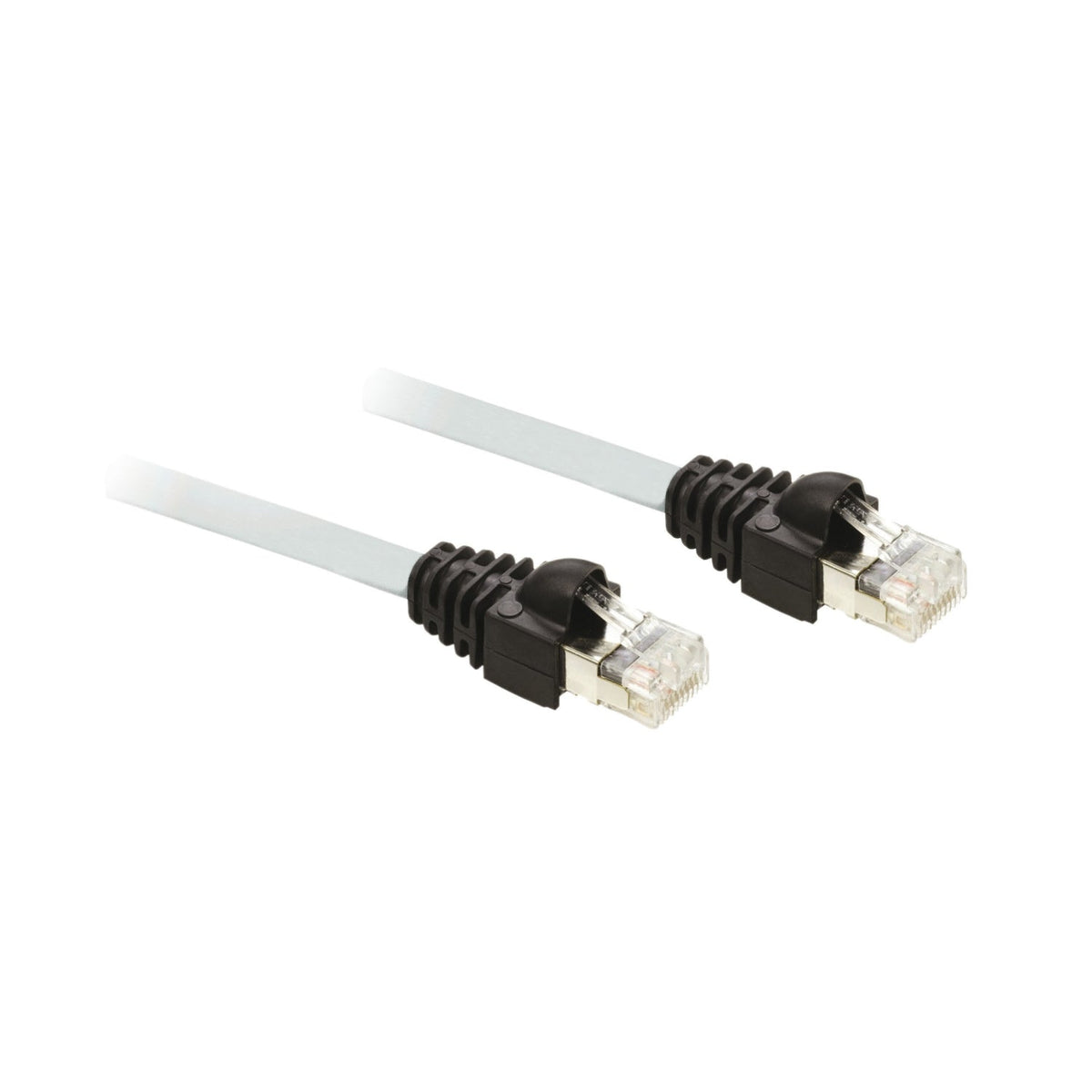

The Schneider Electric VW3CANCARR1 is a preassembled CANopen bus cable, 1 m long, terminated with 2 RJ45 connectors at both ends for connecting CANopen network devices such as Lexium SD3 drives, Altivar drives, and Modicon M258/M238 controllers. It weighs 0.5 kg, ships in packs of 50, and is manufactured in China.
Selection Notes
At 1 m, the VW3CANCARR1 is the shorter of the two RJ45-to-RJ45 CANopen cables in the range; pick the longer variant instead when the daisy-chain distance between two CANopen nodes on a Lexium, Altivar, or Modicon controller exceeds 1 m. Both ends terminate in RJ45, so it links two devices that already use RJ45 CANopen ports rather than converting to a SUB-D 9 connector.
Specification
Full specification
Main 7
| Range of Product | CANopen |
|---|---|
| Range compatibility | Lexium SD3, Altivar 31, Modicon M258, Altivar 71, Lexium 28, Altivar Process ATV900, Altivar 32, Altivar Machine ATV320, Altivar 31C, Altivar 312, Altivar Process ATV600, Magelis XBT GC, GT/GK with control, Altivar Machine ATV340 except Sercos drives, Modicon M238, Modicon LMC058 |
| Bus type | CANopen |
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Connecting cable |
| Product or Component Type | CANopen cable |
| Accessory / separate part destination | CANopen bus |
Complementary 4
| Cable length | 3.3 ft (1 m) |
|---|---|
| Electrical Connection | 2 connectors |
| Connector Type | 2 RJ45 |
| Net Weight | 1.1 lb(US) (0.5 kg) |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 24 specifications ↓ Show less ↑12 more values in Identification, Logistics.
Identification 7
| Part number | VW3CANCARR1 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110667073 |
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3CANCARR1
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the VW3CANCARR1
What is the HS code of VW3CANCARR1 for customs?
The tariff (HS) code on file for VW3CANCARR1 is 851762.
What is the EAN of VW3CANCARR1?
The EAN (GTIN) of VW3CANCARR1 is 3389110667073.
Where does VW3CANCARR1 ship from, and how fast?
VW3CANCARR1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
