- Part number
- VW3A8306TF10
Description
About the VW3A8306TF10
About the VW3A8306TF10

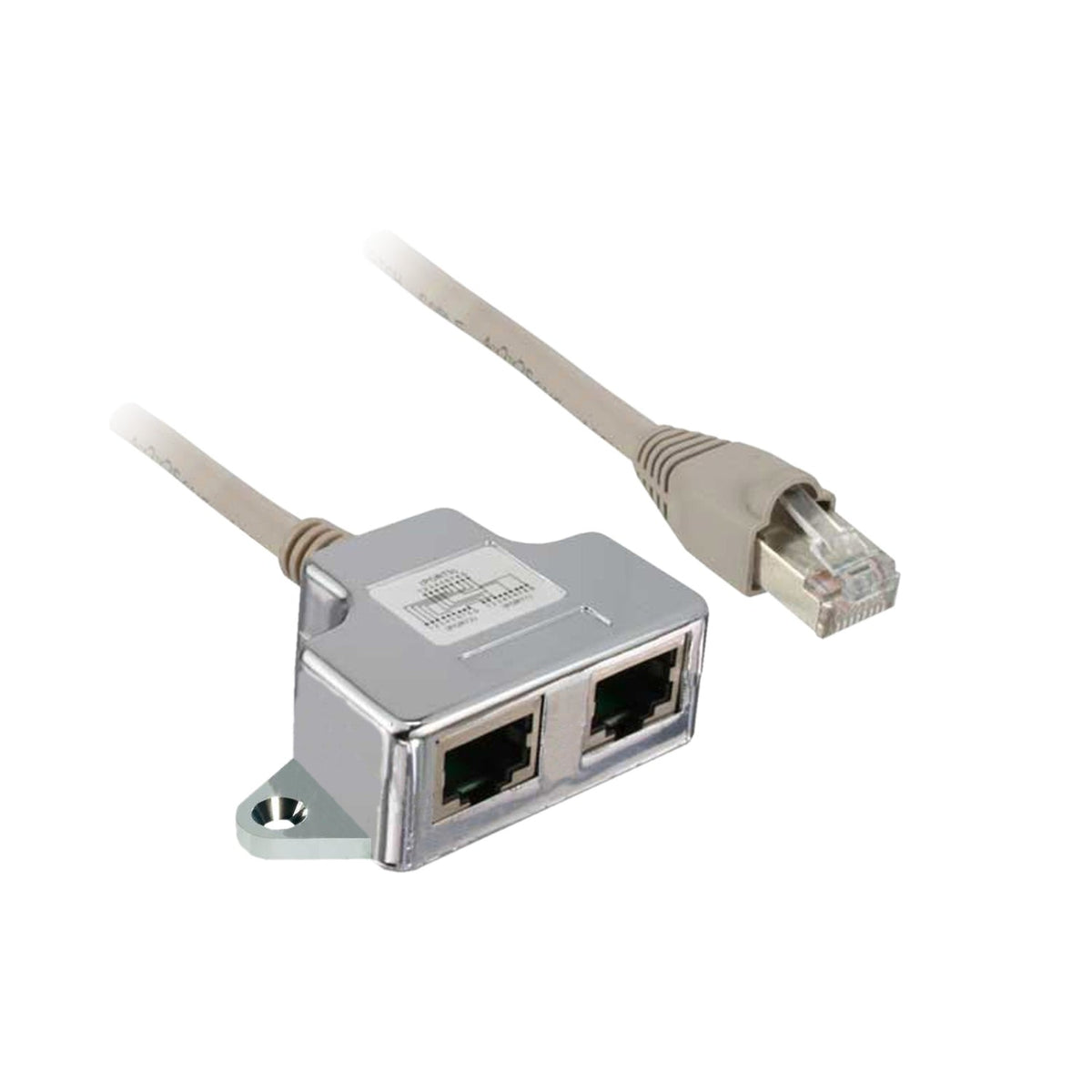

The Schneider Electric VW3A8306TF10 is a Modbus T-junction box with 1 male and 2 female RJ45 connectors on a 1 m cable, used to branch a drop connection into a Modbus network for Altivar and Altistart drives, Modicon M238, LMC058 and M258 controllers, Harmony XBT GT/GTO panels and Zelio Logic relays.
Selection Notes
The VW3A8306TF10 adds a drop connection to a Modbus daisy-chain without cutting the main line: the single male RJ45 connects toward the controller or previous device, and the two female RJ45 ports let the chain continue and the branch device connect. At 1 m, it reaches branch devices mounted further from the main Modbus trunk than the shorter T-junction variant allows, including Harmony XBT GT/GTO operator panels on this range.
Specification
Full specification
Main 7
| Range of Product | Altivar |
|---|---|
| Bus type | Modbus |
| Accessory / separate part category | Connection accessory |
| Accessory / Separate Part Type | T-junction box |
| Accessory / separate part destination | Modbus network |
| Cable length | 3.3 ft (1 m) |
| Quantity per Set | Set of 1 |
Complementary 4
| Range compatibility | Altivar 61Q, Altistart 22, Altivar 21, Altistart 48, Altivar Machine ATV340 except Sercos drives, Altivar 31C, Harmony GTO, Altivar 61, Altivar Process ATV600, Modicon LMC058, Altivar 12, Altivar Easy 610, Altivar 71, Modicon M238, Altivar Machine ATV320, Altivar 312, Altivar 212, Modicon M258, Altivar 32, Altivar 71Q, Lexium SD3, Harmony XBT GT, Zelio Logic, Altivar Easy 310, Altivar 31, Altivar Process ATV900 |
|---|---|
| Communication Port Protocol | Modbus |
| Electrical connection | 1 male connector RJ45, 2 female connectors RJ45 |
| Net Weight | 0.46 lb(US) (0.21 kg) |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 24 specifications ↓ Show less ↑12 more values in Identification, Logistics.
Identification 7
| Part number | VW3A8306TF10 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110400526 |
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.21 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3A8306TF10
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the VW3A8306TF10
What is the HS code of VW3A8306TF10 for customs?
The tariff (HS) code on file for VW3A8306TF10 is 851762.
What is the EAN of VW3A8306TF10?
The EAN (GTIN) of VW3A8306TF10 is 3389110400526.
Where does VW3A8306TF10 ship from, and how fast?
VW3A8306TF10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
