Schneider Electric VW3A8306TF03 Altivar Modbus RJ45 T-Junction Box 0.3 m Networking Accessory

% $-40.51

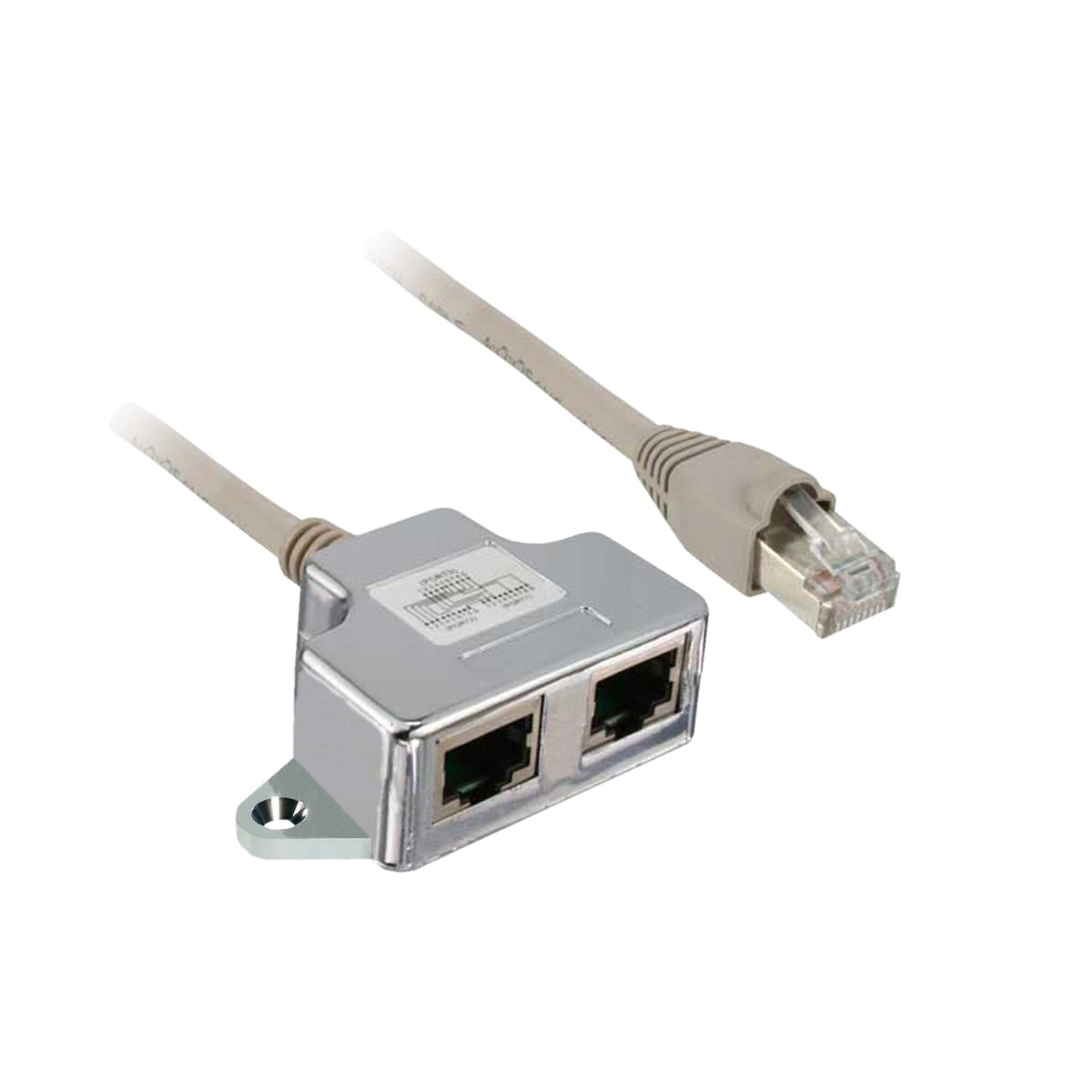

Schneider Electric VW3A8306TF03 Modbus RJ45 T-Junction Box - 0.3 m
Schneider Electric VW3A8306TF03 Modbus RJ45 T-Junction Box - 0.3 m

Schneider Electric VW3A8306TF03 Altivar Modbus RJ45 T-Junction Box 0.3 m Networking Accessory

Brand: Schneider Electric
Reference No: VW3A8306TF03
Catalog No: VW3A8306TF03
Series: Altivar
Tariff Code (HS): 851762
Communication: Modbus (RJ45)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$40.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3A8306TF03 is a Modbus T-junction box with 1 male and 2 female RJ45 connectors on a 0.3 m cable, used to branch a drop connection into a Modbus network for Altivar and Altistart drives, Modicon M238, LMC058 and M258 controllers, Zelio Logic relays and other RJ45 Modbus devices across the Altivar range.

Technical Specifications

Reference VW3A8306TF03
GTIN 3389110400519
Brand Schneider Electric
Range of Product Altivar
Bus Type Modbus
Accessory Category Connection accessory
Accessory Type T-junction box
Accessory Destination Modbus network
Cable Length 0.3 m
Quantity per Set Set of 1
Range Compatibility Altivar 12/21/31/31C/32/61/61Q/71/71Q/212/312, Altivar Process ATV600/ATV900, Altivar Easy 310/610, Altivar Machine ATV320/ATV340 (except Sercos drives), Altistart 22/48, Lexium SD3, Modicon LMC058/M238/M258, Zelio Logic
Communication Port Protocol Modbus
Electrical Connection 1 male RJ45 connector, 2 female RJ45 connectors
Net Weight 0.19 kg
Country of Origin China

Selection Notes

The VW3A8306TF03 adds a drop connection to a Modbus daisy-chain without cutting the main line: the single male RJ45 connects toward the controller or previous device, and the two female RJ45 ports let the chain continue and the branch device connect. At 0.3 m, it suits devices mounted close to the main Modbus trunk cable; choose the 1 m T-junction variant when the branch device sits further away.

Technical Details

Short Description
Modbus T-junction box, 1 male and 2 female RJ45 connectors, 0.3 m cable, for Altivar networks.
Catalog No
VW3A8306TF03
Delivery Date (Days)
30 days
Model Number
VW3A8306TF03
Tariff Code
851762
