Schneider Electric VW3A8306RC Altivar Modbus RJ45 Line Terminator 120 Ohm Networking Accessory

% $-30.54
Schneider Electric VW3A8306RC Modbus RJ45 Line Terminator - 120 Ohm Set of 2
Schneider Electric VW3A8306RC Modbus RJ45 Line Terminator - 120 Ohm Set of 2

Schneider Electric VW3A8306RC Altivar Modbus RJ45 Line Terminator 120 Ohm Networking Accessory

Brand: Schneider Electric
Reference No: VW3A8306RC
Catalog No: VW3A8306RC
Series: Altivar
Tariff Code (HS): 851762
Communication: Modbus (RJ45)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$30.54

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

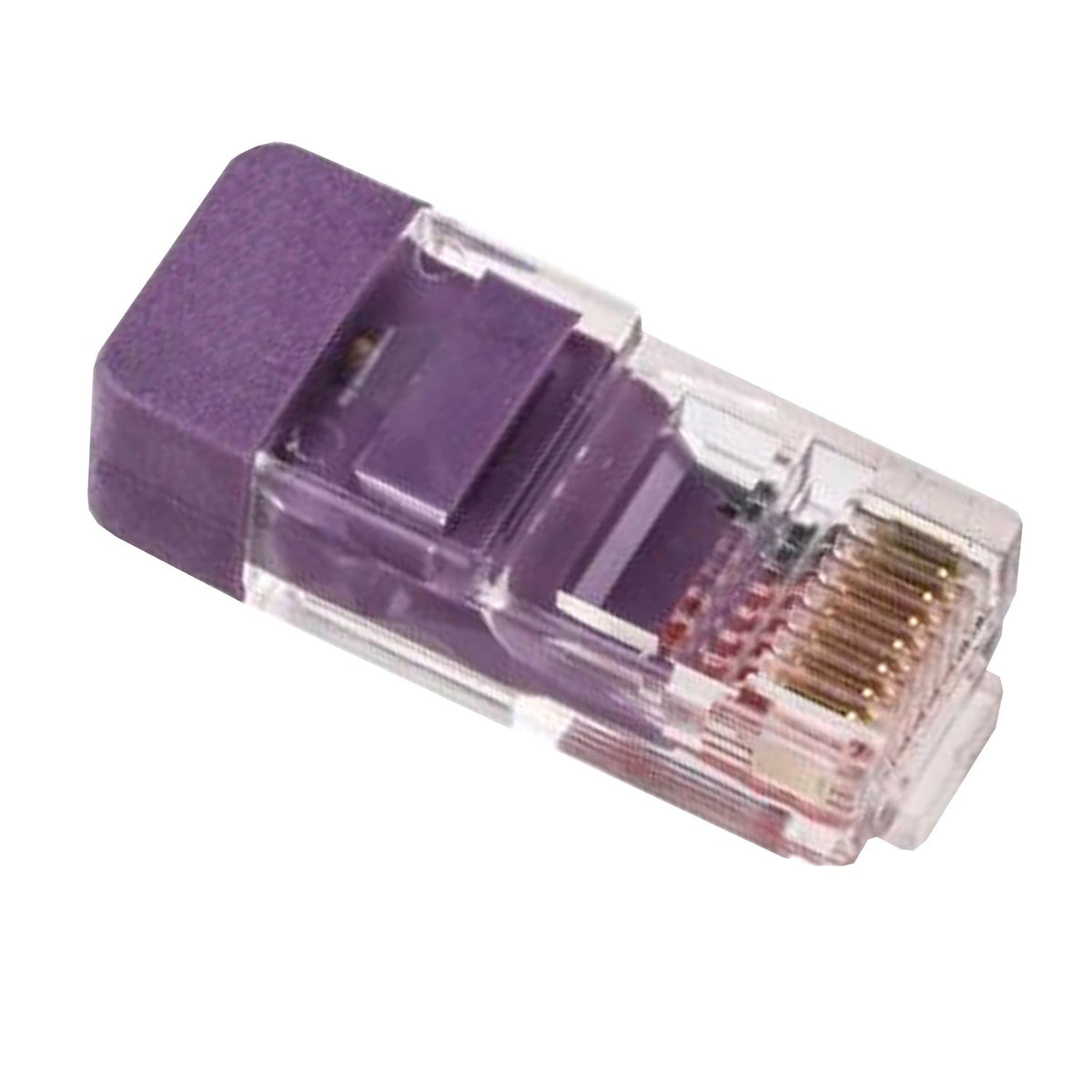

The Schneider Electric VW3A8306RC is a Modbus line terminator for RJ45 connectors, rated 120 Ohm with 1 nF capacitance and sold as a set of 2, for terminating the end of an RS485 Modbus line on Altivar, Altistart, Modicon M238, M258 and LMC058 controllers, and Zelio Logic relays, matching the 120 Ohm characteristic impedance used by the EIA-485 standard.

Technical Specifications

Reference VW3A8306RC
GTIN 3389110400533
Brand Schneider Electric
Range of Product Altivar
Bus Type Modbus
Accessory Category Connection accessory
Accessory Type Line terminator
Accessory Destination RJ45 connector
Quantity per Set Set of 2
Range Compatibility Altivar 12/21/31/31C/32/61/61Q/71/71Q/212/312, Altivar Process ATV600/ATV900, Altivar Easy 310/610, Altivar Machine ATV320/ATV340 (except Sercos drives), Altistart 22/48, Lexium SD3, Modicon LMC058/M238/M258, Preventa XPS MF, Zelio Logic
Communication Port Protocol Modbus
Terminator Resistance 120 Ohm
Terminator Capacitance 1 nF
Net Weight 0.2 kg
Country of Origin China

Selection Notes

The VW3A8306RC terminates an RS485 Modbus line at 120 Ohm with 1 nF capacitance through the RJ45 port, matching the EIA-485 standard impedance rather than Schneider's proprietary 150 Ohm Modbus value. It ships as a set of 2 because both physical ends of the line need termination. Use the 150 Ohm terminator variant instead when the network follows Schneider's own Modbus cabling specification; the two resistance values are not interchangeable on the same segment.

Technical Details

Short Description
Modbus line terminator, 120 Ohm with 1 nF capacitance, RJ45 connector, set of 2, for RS485 line ends.
