- Part number
- VW3A8306R10
Description
About the VW3A8306R10
About the VW3A8306R10

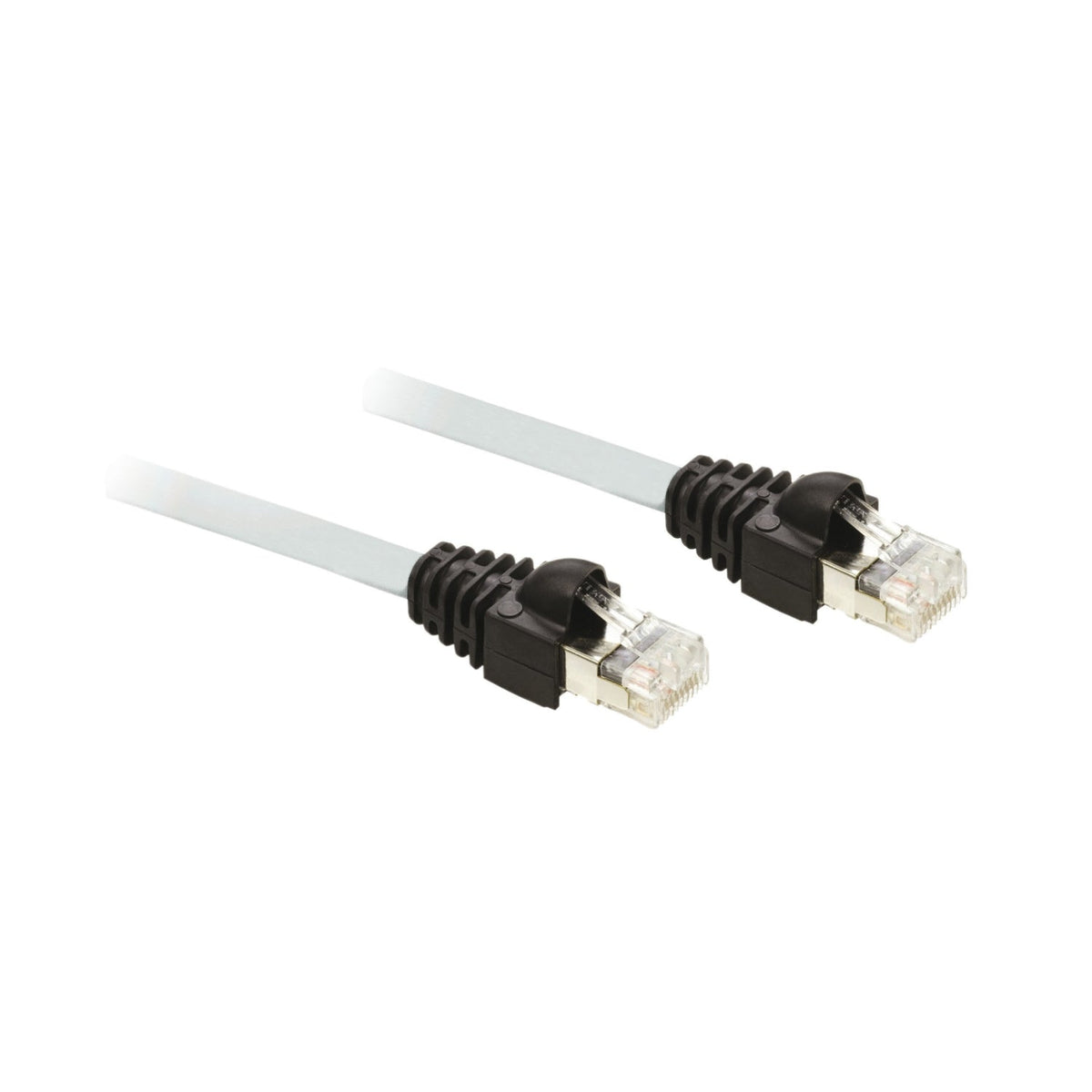

The Schneider Electric VW3A8306R10 is a 1 m Modbus serial-link cable with 2 male RJ45 connectors, used to connect Altivar and Altistart drives, Modicon M238, M258 and LMC058 controllers, and Zelio Logic relays to a Modbus terminal, T-junction box or splitter block port across the wider Altivar Process and Lexium SD3 range.
Selection Notes
At 1 m, the VW3A8306R10 suits short point-to-point runs between a drive and an adjacent splitter block, T-junction box or PC-connection accessory such as the TSXCUSB485 or TWDNADK70P. Both ends terminate in male RJ45 connectors, so it is directly interchangeable with the longer cable in the same range wherever cable length, not connector type, is the limiting factor. Choose the 3 m cable instead when the Modbus splitter block or terminal is not within 1 m of the drive.
Specification
Full specification
Main 8
| Range of Product | Altivar |
|---|---|
| Accessory / separate part category | Connection accessory |
| Accessory / Separate Part Type | Connecting cable |
| Product Compatibility | VW3A8306TF010, TSXCUSB485, TWDNADK70P, Modbus splitter block LU9GC3, VW3A8306TF03 |
| Accessory / separate part destination | Terminal or Modbus network port, Modbus T-junction box, Modbus splitter block LU9GC3 |
| Range compatibility | Altivar 61Q, Altistart 22, Altistart 48, Altivar 71, Altivar Process ATV900, Altivar Easy 310, Altivar 31C, Lexium 32i, Altivar Process ATV600, Altivar 212, Altivar 21, Altivar Easy 610, Altivar Machine ATV340 except Sercos drives, Altivar 32, Altivar 312, Lexium SD3, Altivar 71Q, Preventa XPS MF, Modicon LMC058, Modicon M258, Altivar 31, Modicon M238, Altivar 61, Altivar 12, Zelio Logic, Altivar Machine ATV320 |
| Cable length | 3.3 ft (1 m) |
| Electrical connection | 2 male connectors - RJ45 |
Complementary 1
| Net Weight | 0.13 lb(US) (0.06 kg) |
|---|
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 22 specifications ↓ Show less ↑12 more values in Identification, Logistics.
Identification 7
| Part number | VW3A8306R10 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110250831 |
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.06 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VW3A8306R10 3
-
Datasheet
ProductDownload PDF: Product data sheet VW3A8306R10
Product data sheet VW3A8306R10
-
Catalogue
ProductDownload PDF: Catalog 0100CT2401-SEC-18
Catalog 0100CT2401-SEC-18
-
Manual
ProductDownload PDF: Instruction sheet 80438-069-02
Instruction sheet 80438-069-02
Quick answers
Questions about the VW3A8306R10
What is the HS code of VW3A8306R10 for customs?
The tariff (HS) code on file for VW3A8306R10 is 851762.
What is the EAN of VW3A8306R10?
The EAN (GTIN) of VW3A8306R10 is 3389110250831.
Where does VW3A8306R10 ship from, and how fast?
VW3A8306R10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
