Schneider Electric TPRVM001 TeSys Island Voltage Interface Module 100-690 V AC Motor Starter Module

% $-213.38

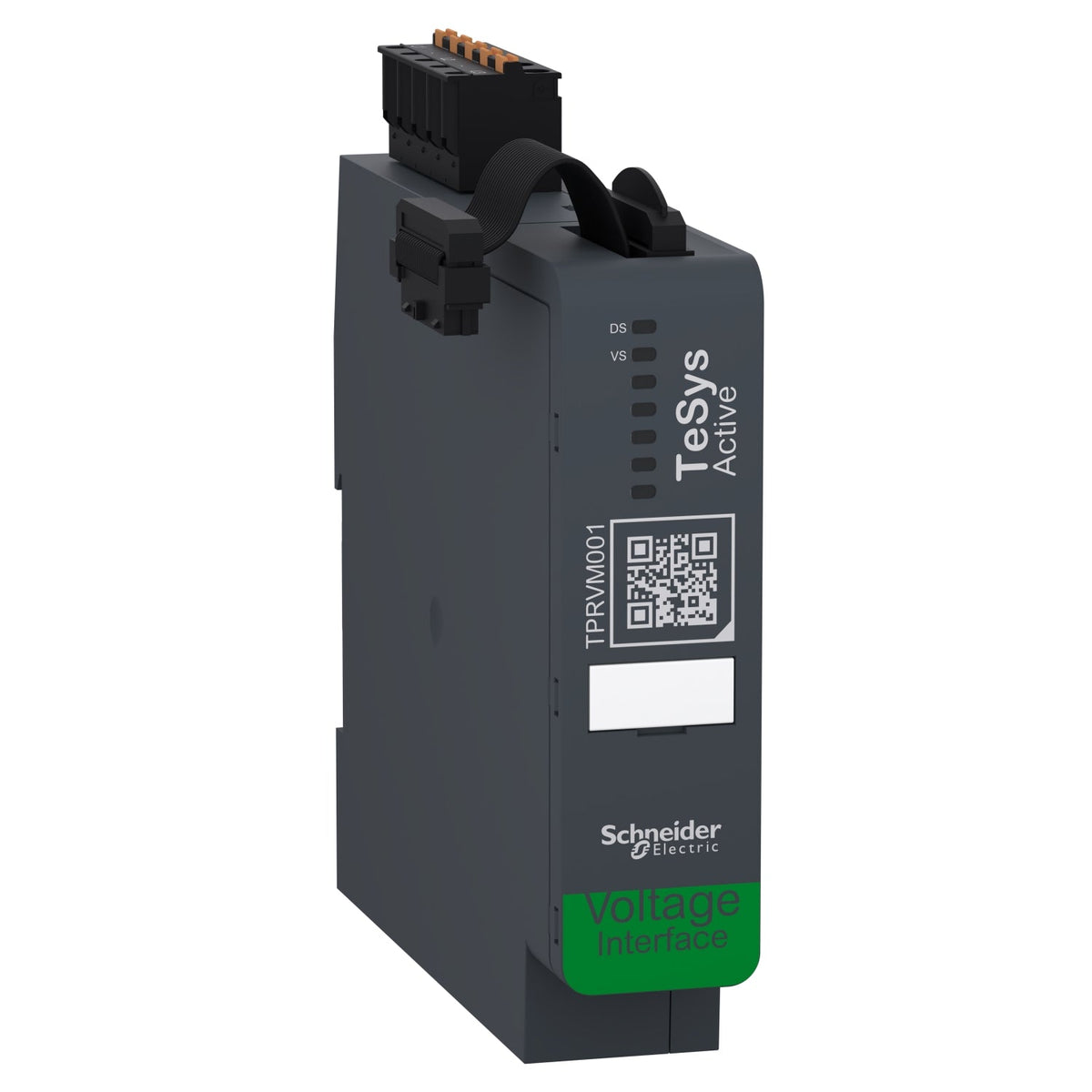

Schneider Electric TPRVM001 TeSys Island voltage interface module
Schneider Electric TPRVM001 TeSys Island voltage interface module

Schneider Electric TPRVM001 TeSys Island Voltage Interface Module 100-690 V AC Motor Starter Module

Brand: Schneider Electric
Reference No: TPRVM001
Catalog No: TPRVM001
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$213.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TPRVM001 is a TeSys Island voltage interface module that monitors the mains voltage supplying the island, measuring 100-690 V AC at 47-63 Hz. It reports RMS phase voltages, frequency and phase sequence to the TPRBC bus coupler for power and energy monitoring.

Technical Specifications

Reference TPRVM001
Brand Schneider Electric
Range TeSys Island
Device Short Name TPRVM
Product Type Voltage interface module
Product Compatibility TPRBC bus coupler
Rated Operational Voltage (Ue) 100-690 V AC, 47-63 Hz
Rated Insulation Voltage (Ui) 690 V (IEC 61010-1)
Rated Impulse Withstand Voltage (Uimp) 6 kV (IEC 61010-1)
Overvoltage Category III
Monitoring Phase voltage 100-690 V, phase frequency 47-63 Hz, phase sequence
Measurement Accuracy Voltage +/- 5%, frequency +/- 1 Hz
Rated Supply Voltage (Us) 24 V DC, from bus coupler
Current Consumption 2 mA
Mounting Horizontal and vertical, 35 mm symmetrical rail
Dimensions (W x H x D) 25 x 118 x 114 mm
Net Weight 0.159 kg
IP Degree of Protection IP20
Ambient Air Temperature (Operation) -10 to 60 degC

Certifications & Standards

  • CSA
  • UL
  • IEC 61010-2-201
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201

Selection Notes

Add the TPRVM001 to a TeSys island configuration when the application needs mains-voltage monitoring (RMS value, dip/swell detection, phase sequence) alongside the motor starters, feeding the data back to the TPRBC bus coupler for power and energy calculation.

Technical Details

Short Description
The Schneider Electric TPRVM001 is a TeSys Island voltage interface module that monitors the mains voltage supplying the island, measuring 100-690 V A
Mounting Type
35 mm symmetrical DIN rail
Protection Type
IP20
Catalog No
TPRVM001
Delivery Date (Days)
30 days
Model Number
TPRVM
Tariff Code
853650
