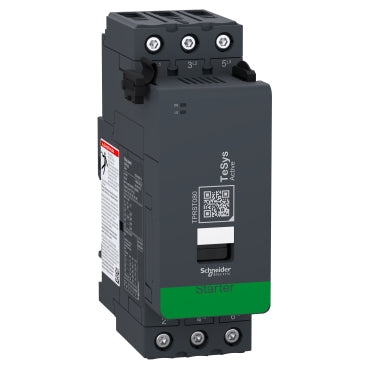

The Schneider Electric TPRST080 is a TeSys island motor starter rated 66 A at AC-3 for direct-on-line control of motors up to 37 kW at 400 V (80 A at AC-1, up to 690 V). Connected through a TPRBC bus coupler, it provides thermal overload, phase-loss, phase-unbalance, and ground-current protection with a 4-80 A adjustable thermal setting.
At 66 A AC-3 / 37 kW, the TPRST080 is the top-current TeSys island starter in this frame, with the widest thermal adjustment range in the lineup at 4-80 A, so it also covers motors well below its full rating without moving to a smaller unit. The 1000 A rated breaking capacity and 900 A / 1 s short-time withstand current give it headroom against fault currents when coordinated with an upstream breaker. It has no onboard SIL safety function; where the motor branch needs a certified safe-stop function, a SIL-rated island starter with a safety interface module is the appropriate choice instead.
| Range | TeSys |
|---|---|
| Product name | TeSys island |
| Device short name | TPRST |
| Product or Component Type | Motor starter |
| Motor starter type | Direct on line |
| Device presentation | Direct starter connected to an automation controller through a bus coupler, Operational only when connected to a bus coupler |
| Function Available | Upstream voltage presence detection, Electrical line and load protection, Power and energy monitoring when connected with TPRVM voltage module |
| Product compatibility | TPRBC bus coupler, TPRVM voltage interface module |
| Poles description | 3P 3 NO |
| Utilisation category | AC-1, AC-2, AC-3, AC-4, AC-3e |
| Motor power kW | 18.5 kW at 230 V 50 Hz (AC-3), 37 kW at 380...415 V 50 Hz (AC-3), 37 kW at 440 V 50 Hz (AC-3), 37 kW at 500 V 50 Hz (AC-3), 37 kW at 690 V 50 Hz (AC-3) |
| motor power HP (UL / CSA) | 5 hp at 120 V AC 60 Hz for 1 phase motors, 10 hp at 240 V AC 60 Hz for 1 phase motors, 20 hp at 208 V AC 60 Hz for 3 phase motors, 20 hp at 240 V AC 60 Hz for 3 phase motors, 40 hp at 480 V AC 60 Hz for 3 phase motors, 50 hp at 600 V AC 60 Hz for 3 phase motors |
| [Ue] rated operational voltage | <= 690 V AC 47...63 Hz |
| [Ie] rated operational current | 66 A (at <122 °F (50 °C)) at <= 440 V AC-3, 80 A (at <122 °F (50 °C)) at <= 440 V AC-1 |
| [Ith] conventional free air thermal current | 80 A (at 122 °F (50 °C)) |
| [Ui] rated insulation voltage | 690 V IEC 60947-4-1, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Overvoltage category | III |
| Thermal protection adjustment range | 4…80 A |
| Thermal overload class | Class 5…30 |
| Reset | Remotely or automatically |
| Irms rated making capacity | 1000 A at 440 V conforming to IEC 60947 |
| Rated breaking capacity | 1000 A at 440 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 900 A 104 °F (40 °C) - 1 s, 520 A 104 °F (40 °C) - 10 s, 260 A 104 °F (40 °C) - 1 min, 110 A 104 °F (40 °C) - 10 min |
| Average impedance | 1.5 mOhm - Ith 80 A 50 Hz |
| Power dissipation per pole | 6.5 W AC-3, 9.6 W AC-1 |
| [Uc] control circuit voltage | 24 V DC supplied by the bus coupler |
| Current consumption | 80 mA contactor sealed, 500 mA contactor closing |
| Power dissipation in W | 21.4 W at Ie AC-3 |
| Mechanical durability | 6 Mcycles |
|---|---|
| Electrical durability | 0.75 Mcycles 66 A AC-3 440 V, 0.5 Mcycles 80 A AC-1 440 V |
| Maximum operating rate | 3600 cyc/mn AC-3 |
| Operating time | < 80 ms closing, < 80 ms opening |
| Safety performance level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Protection type | Thermal overload protection, Motor overheat, Overcurrent, Undercurrent, Jam, Long start, Stall, Rapid cycle lockout, Rapid restart lockout, Phase sequence, Phase loss, Phase reversal, Phase unbalance, Ground current |
| Monitoring type | Time device ON, Time device switch ON, Number of faults, Number of switching cycles, Number of device power cycles, Average current Iavg, Average voltage Vavg, Max current Imax, Max voltage Vmax, Active and reactive power with voltage module, Active and reactive energy with voltage module, True power factor with voltage module |
| Local signalling | 1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status) |
| Standards | EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1 |
| Product certifications | UL, CSA, CCC, EAC |
| Mounting mode | Horizontal and vertical 35 mm symmetrical DIN rail) |
| Connections - terminals | EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) 16 AWG...2 AWG)rigid, EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) 16 AWG...4 AWG)rigid, EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) 16 AWG...2 AWG)flexible without cable end, EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) 16 AWG...4 AWG)flexible without cable end, EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) 16 AWG...2 AWG)flexible with cable end, EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) 16 AWG...4 AWG)flexible with cable end |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.002…0.04 in² (1…25 mm²) hexagonal 0.2 in (4 mm), 70.8 lbf.in (8 N.m) 0.04…0.05 in² (25…35 mm²) hexagonal 0.2 in (4 mm) |
| Width | 2.2 in (55 mm) |
| Height | 6.6 in (167 mm) |
| Depth | 4.9 in (125 mm) |
| Net Weight | 2.751 lb(US) (1.248 kg) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
|---|---|
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with current derating |
| Relative Humidity | 5…95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Protective treatment | TC |
| Fire resistance | 1760 °F (960 °C) UL 94, 1562 °F (850 °C) IEC 60695-2-1, 1202 °F (650 °C) IEC 60695-2-12 |
| Shock resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Vibration resistance | 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6, 1 gn 13…200 Hz) IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6 |
| Part number | TPRST080 |
|---|---|
| Type designation | TPRST |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489832780 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 1.248 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
