Part number
TPRST065
Model no
TPRST
$412.93 On request Dispatch — · From TürkiyeGet a Quote

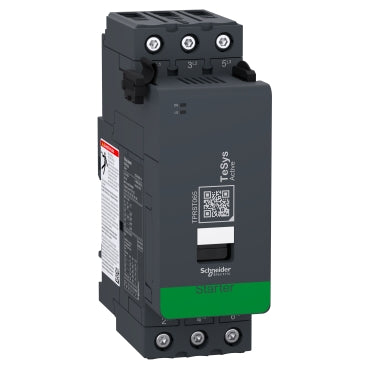

Schneider Electric TPRST065 TeSys Island TPRST 65A AC-3 30kW DOL Motor Starter Module

Schneider Electric TPRST065 TeSys island motor starter, 65 A AC-3 / 30 kW DOL, adjustable thermal overload 3.35-65 A, TPRBC bus coupler mount.

Rated current
65 A
Rated operational voltage
690 V AC
Motor power
30 at 400 kW
Poles
3P
EAN
3606489832773
Description

About the TPRST

The Schneider Electric TPRST065 is a TeSys island motor starter rated 65 A at AC-3 for direct-on-line control of motors up to 30 kW at 400 V (80 A at AC-1, up to 690 V). Connected through a TPRBC bus coupler, it provides thermal overload, phase-loss, phase-unbalance, and ground-current protection with a 3.35-65 A adjustable thermal setting.

Certifications & Standards

  • CSA
  • UL
  • EAC
  • CCC
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

At 65 A AC-3 / 30 kW, the TPRST065 is a mid-to-high current TeSys island starter using the larger 55 x 125 x 167 mm frame, which carries a 1000 A rated breaking capacity and a 900 A / 1 s short-time withstand current. The 3.35-65 A adjustable thermal range covers motor starting current without a separate overload relay, provided the upstream device is coordinated for that fault let-through. Move up to a higher-current island starter when the motor's AC-3 full-load current exceeds 65 A.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 29

Range TeSys
Product name TeSys island
Device short name TPRST
Product or Component Type Motor starter
Motor starter type Direct on line
Device presentation Direct starter connected to an automation controller through a bus coupler, Operational only when connected to a bus coupler
Function Available Upstream voltage presence detection, Electrical line and load protection, Power and energy monitoring when connected with TPRVM voltage module
Product compatibility TPRBC bus coupler, TPRVM voltage interface module
Poles description 3P 3 NO
Utilisation category AC-1, AC-2, AC-3, AC-4, AC-3e
Motor power kW 18.5 kW at 230 V 50 Hz (AC-3), 30 kW at 380...415 V 50 Hz (AC-3), 30 kW at 440 V 50 Hz (AC-3), 37 kW at 500 V 50 Hz (AC-3), 37 kW at 690 V 50 Hz (AC-3)
motor power HP (UL / CSA) 5 hp at 120 V AC 60 Hz for 1 phase motors, 10 hp at 240 V AC 60 Hz for 1 phase motors, 20 hp at 208 V AC 60 Hz for 3 phase motors, 20 hp at 240 V AC 60 Hz for 3 phase motors, 40 hp at 480 V AC 60 Hz for 3 phase motors, 50 hp at 600 V AC 60 Hz for 3 phase motors
[Ue] rated operational voltage <= 690 V AC 47...63 Hz
[Ie] rated operational current 65 A (at <122 °F (50 °C)) at <= 440 V AC-3, 80 A (at <122 °F (50 °C)) at <= 440 V AC-1
[Ith] conventional free air thermal current 80 A (at 122 °F (50 °C))
[Ui] rated insulation voltage 690 V IEC 60947-4-1, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
Overvoltage category III
Thermal protection adjustment range 3.35…65 A
Thermal overload class Class 5…30
Reset Remotely or automatically
Irms rated making capacity 1000 A at 440 V conforming to IEC 60947
Rated breaking capacity 1000 A at 440 V conforming to IEC 60947
[Icw] rated short-time withstand current 900 A 104 °F (40 °C) - 1 s, 520 A 104 °F (40 °C) - 10 s, 260 A 104 °F (40 °C) - 1 min, 110 A 104 °F (40 °C) - 10 min
Average impedance 1.5 mOhm - Ith 80 A 50 Hz
Power dissipation per pole 6.3 W AC-3 - Ith 65 A, 9.6 W AC-1 - Ith 80 A
[Uc] control circuit voltage 24 V DC supplied by the bus coupler
Current consumption 80 mA contactor sealed, 500 mA contactor closing
Power dissipation in W 20.8 W at Ie AC-3

Complementary 17

Mechanical durability 6 Mcycles
Electrical durability 1.4 Mcycles 65 A AC-3 440 V, 0.5 Mcycles 80 A AC-1 440 V
Maximum operating rate 3600 cyc/mn AC-3
Operating time < 80 ms closing, < 80 ms opening
Safety performance level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Protection type Thermal overload protection, Motor overheat, Overcurrent, Undercurrent, Jam, Long start, Stall, Rapid cycle lockout, Phase sequence, Rapid restart lockout, Phase reversal, Phase loss, Phase unbalance, Ground current
Monitoring type Time device ON, Time device switch ON, Number of faults, Number of switching cycles, Number of device power cycles, Average current Iavg, Average voltage Vavg, Max current Imax, Max voltage Vmax, Active and reactive power with voltage module, Active and reactive energy with voltage module, True power factor with voltage module
Local signalling 1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status)
Standards EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Product certifications CSA, UL, EAC, CCC
Mounting mode Horizontal and vertical 35 mm symmetrical DIN rail)
Connections - terminals EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) 16 AWG...2 AWG)rigid, EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) 16 AWG...4 AWG)rigid, EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) 16 AWG...2 AWG)flexible without cable end, EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) 16 AWG...4 AWG)flexible without cable end, EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) 16 AWG...2 AWG)flexible with cable end, EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) 16 AWG...4 AWG)flexible with cable end
Tightening torque 44.3 lbf.in (5 N.m) 0.002…0.04 in² (1…25 mm²) hexagonal 0.2 in (4 mm), 70.8 lbf.in (8 N.m) 0.04…0.05 in² (25…35 mm²) hexagonal 0.2 in (4 mm)
Width 2.2 in (55 mm)
Height 6.6 in (167 mm)
Depth 4.9 in (125 mm)
Net Weight 2.751 lb(US) (1.248 kg)

Environment 11

Ambient air temperature for storage -13…158 °F (-25…70 °C)
Ambient air temperature for operation 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with current derating
Relative Humidity 5…95 %
Operating altitude 0...6561.68 ft (0...2000 m) without derating
IP degree of protection IP20
Pollution degree 2
Protective treatment TC
Fire resistance 1760 °F (960 °C) UL 94, 1562 °F (850 °C) IEC 60695-2-1, 1202 °F (650 °C) IEC 60695-2-12
Shock resistance 15 gn 11 ms) IEC 60068-2-27
Vibration resistance 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6, 1 gn 13…200 Hz) IEC 60068-2-6
Electromagnetic compatibility Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
Show all 71 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number TPRST065
Type designation TPRST
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489832773

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 1.248 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TPRST065

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
Quick answers

Questions about the TPRST

What is the rated current of TPRST?

The rated current of TPRST is 65 A.

Which supply voltage is TPRST rated for?

The rated operational voltage of TPRST is 690 V AC.

What motor power is TPRST rated for?

The rated motor power of TPRST is 30 at 400 kW.

What is the HS code of TPRST for customs?

The tariff (HS) code on file for TPRST is 853650.

What is the EAN of TPRST?

The EAN (GTIN) of TPRST is 3606489832773.

Where does TPRST ship from, and how fast?

TPRST ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
