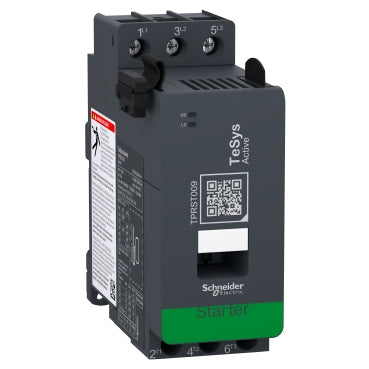

Schneider Electric TPRST009 TeSys Island TPRST 9A AC-3 4kW DOL Motor Starter Module

Schneider Electric TPRST009 TeSys island motor starter, 9 A AC-3 / 4 kW DOL, adjustable thermal overload 0.18-9 A, TPRBC bus coupler mount.

Rated current
9 A
Rated operational voltage
690 V AC
Motor power
4 at 400 kW
EAN
3606489832742
Description

About the TPRST

The Schneider Electric TPRST009 is a TeSys island motor starter rated 9 A at AC-3 for direct-on-line control of motors up to 4 kW at 400 V (15 A at AC-1, up to 690 V). Connected through a TPRBC bus coupler, it provides thermal overload, phase-loss, phase-unbalance, and ground-current protection with a 0.18-9 A adjustable thermal setting.

Certifications & Standards

  • EAC
  • CSA
  • CCC
  • UL
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

At 9 A AC-3 / 4 kW, the TPRST009 sits at the low-current end of the TeSys island starter line, sized for small motors rather than the higher-power frames. Its 0.18-9 A adjustable thermal range lets one device cover a wide span of motor full-load currents without a separate overload relay, and the 210 A / 1 s short-time withstand current keeps it clear of nuisance trips during motor starting when properly coordinated upstream. It connects only through a TPRBC bus coupler and has no onboard SIL safety function, so where functional safety is required on the motor branch, a SIL-rated island starter is the right choice instead.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 29

Range TeSys
Product name TeSys island
Device short name TPRST
Product or Component Type Motor starter
Motor starter type Direct on line
Device presentation Direct starter connected to an automation controller through a bus coupler, Operational only when connected to a bus coupler
Function Available Upstream voltage presence detection, Electrical line and load protection, Power and energy monitoring when connected with TPRVM voltage module
Product compatibility TPRBC bus coupler, TPRVM voltage interface module
Poles description 3P 3 NO
Utilisation category AC-1, AC-2, AC-3, AC-4, AC-3e
Motor power kW 2.2 kW at 230 V 50 Hz (AC-3), 4 kW at 380...415 V 50 Hz (AC-3), 4 kW at 440 V 50 Hz (AC-3), 5.5 kW at 500 V 50 Hz (AC-3), 5.5 kW at 690 V 50 Hz (AC-3)
motor power HP (UL / CSA) 0.33 hp at 120 V AC 60 Hz for 1 phase motors, 1 hp at 240 V AC 60 Hz for 1 phase motors, 2 hp at 208 V AC 60 Hz for 3 phase motors, 2 hp at 240 V AC 60 Hz for 3 phase motors, 5 hp at 480 V AC 60 Hz for 3 phase motors, 7.5 hp at 600 V AC 60 Hz for 3 phase motors
[Ue] rated operational voltage <= 690 V AC 47...63 Hz
[Ie] rated operational current 9 A (at <122 °F (50 °C)) at <= 440 V AC-3, 15 A (at <122 °F (50 °C)) at <= 440 V AC-1
[Ith] conventional free air thermal current 15 A (at 122 °F (50 °C))
[Ui] rated insulation voltage 690 V IEC 60947-4-1, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
Overvoltage category III
Thermal protection adjustment range 0.18…9 A
Thermal overload class Class 5…30
Reset Remotely or automatically
Irms rated making capacity 250 A at 440 V conforming to IEC 60947
Rated breaking capacity 250 A at 440 V conforming to IEC 60947
[Icw] rated short-time withstand current 210 A 104 °F (40 °C) - 1 s, 105 A 104 °F (40 °C) - 10 s, 61 A 104 °F (40 °C) - 1 min, 30 A 104 °F (40 °C) - 10 min
Average impedance 2.5 mOhm - Ith 15 A 50 Hz
Power dissipation per pole 0.2 W AC-3 - Ith 9 A, 0.56 W AC-1 - Ith 15 A
[Uc] control circuit voltage 24 V DC supplied by the bus coupler
Current consumption 160 mA contactor sealed, 160 mA contactor closing
Power dissipation in W 3.5 W at Ie AC-3

Complementary 17

Mechanical durability 30 Mcycles
Electrical durability 2 Mcycles 9 A AC-3 440 V, 1.2 Mcycles 15 A AC-1 440 V
Maximum operating rate 3600 cyc/mn AC-3
Operating time < 100 ms closing, < 30 ms opening
Safety performance level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Protection type Thermal overload protection, Motor overheat, Overcurrent, Undercurrent, Jam, Long start, Stall, Rapid cycle lockout, Phase sequence, Rapid restart lockout, Phase reversal, Phase loss, Phase unbalance, Ground current
Monitoring type Time device ON, Time device switch ON, Number of faults, Number of switching cycles, Number of device power cycles, Average current Iavg, Average voltage Vavg, Max current Imax, Max voltage Vmax, Active and reactive power with voltage module, Active and reactive energy with voltage module, True power factor with voltage module
Local signalling 1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status)
Standards EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Product certifications EAC, CSA, CCC, UL
Mounting mode Horizontal and vertical 35 mm symmetrical DIN rail)
Connections - terminals screw-clamp terminals 1 0.002…0.006 in² (1…4 mm²) 16 AWG...12 AWG)rigid, screw-clamp terminals 2 0.002…0.006 in² (1…4 mm²) 16 AWG...12 AWG)rigid, screw-clamp terminals 1 0.002…0.006 in² (1.5…4 mm²) 16 AWG...12 AWG)flexible without cable end, screw-clamp terminals 2 0.002…0.006 in² (1.5…4 mm²) 16 AWG...12 AWG)flexible without cable end, screw-clamp terminals 1 0.002…0.006 in² (1…4 mm²) 16 AWG...12 AWG)flexible with cable end, screw-clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) 16 AWG...14 AWG)flexible with cable end
Tightening torque 15.05 lbf.in (1.7 N.m) flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) Philips No 2
Width 1.8 in (45 mm)
Height 4.6 in (116 mm)
Depth 4.5 in (115 mm)
Net Weight 1.446 lb(US) (0.656 kg)

Environment 11

Ambient air temperature for storage -13…158 °F (-25…70 °C)
Ambient air temperature for operation 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with current derating
Relative Humidity 5…95 %
Operating altitude 0...6561.68 ft (0...2000 m) without derating
IP degree of protection IP20
Pollution degree 2
Protective treatment TC
Fire resistance 1760 °F (960 °C) UL 94, 1562 °F (850 °C) IEC 60695-2-1, 1202 °F (650 °C) IEC 60695-2-12
Shock resistance 15 gn 11 ms) IEC 60068-2-27
Vibration resistance 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6, 1 gn 13…200 Hz) IEC 60068-2-6
Electromagnetic compatibility Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
